PART 2: CX-Server PLC Tools
CHAPTER 3 – IO Table Component OMRON
CX-Server PLC Tools_Page 22
Displaying an I/O Table

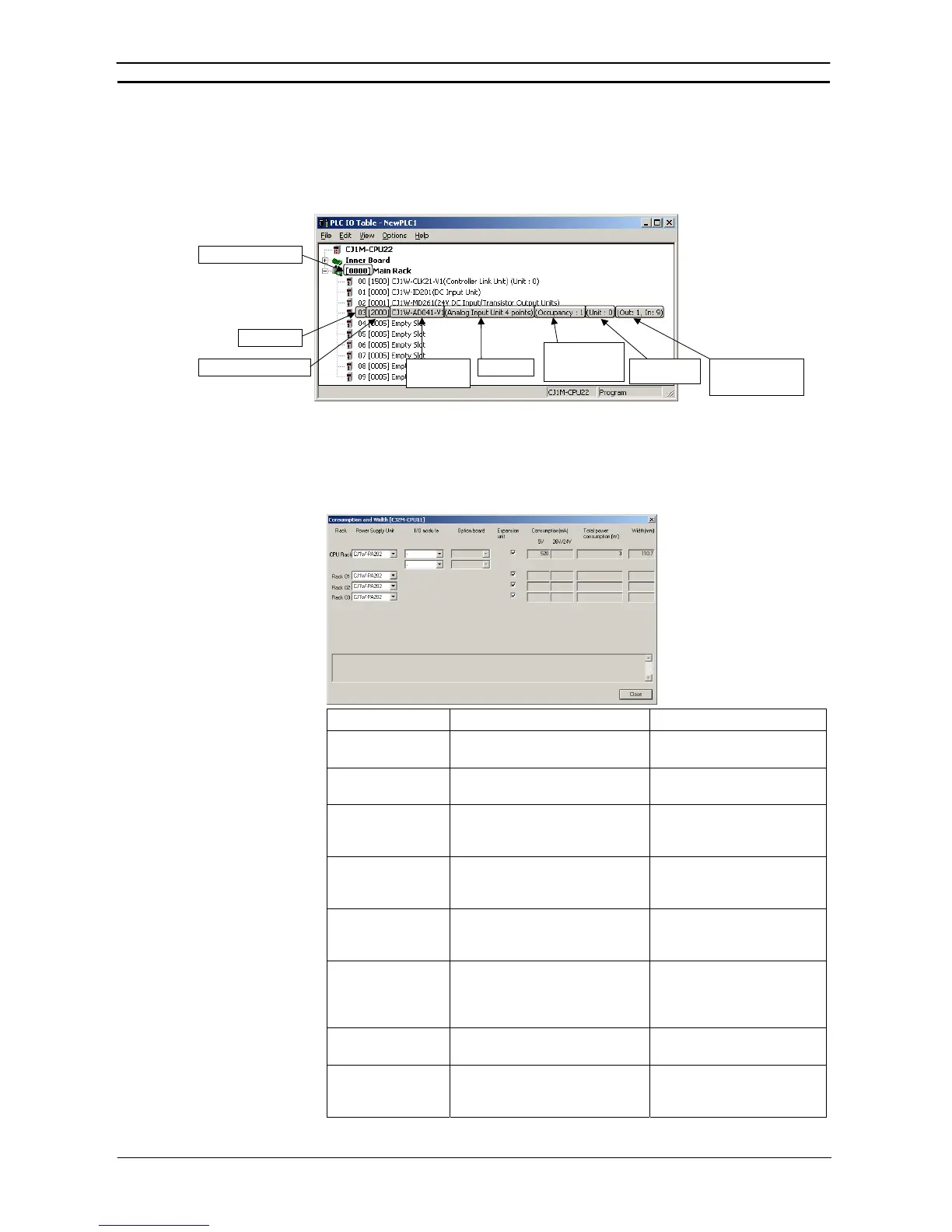

Displaying the CS/CJ/CP I/O Table Window
The CS/CJ/CP I/O Table Window is displayed when the PLC is a CS/CJ/CP-series PLC.
Rack’s starting CIO address
Slot number
Unit’s starting CIO address
Unit model
(See note.)
Unit name
Number of Unit
resources occupied
by Special I/O Unit
Special I/O Unit’s
unit number
Number of output words
and number of input
words
Note: The Unit model will be blank if there is no CPS file.
The Unit model will also be blank when data for C200H Special I/O
Units has been uploaded from the PLC (Transfer from PLC).
Note: In the CS/CJ I/O Table Window, the current consumption and width for each PLC
Rack can be displayed as shown below by selecting Options - Consumption and Width
offline.
Item Description Remarks
Rack Select the CPU Rack and
Expansion Racks.
Power Supply Unit Select the model of power
supply units to use.
I/O module Select the model of Pulse I/O
Modules to use.
This item can be specified
only for the CJ2M CPU Unit
with unit version 2.0 or later.
Option board Select the model of option
boards to use.
This item can be specified
only for the CJ2M and
CP1H Units.
Expansion unit Tick the corresponding check
box when an expansion unit is
used.
Consumption
(mA)
Indicates the total current
consumption of the units
registered in the I/O table by
racks.
Total power
consumption (W)
Indicates the total power
consumption by racks.
Width (mm) Indicates the total width of the
units registered in the I/O table
by racks.
This item is indicated only
for the CJ/CP Series.
