PART 2: CX-Server PLC Tools
OMRON CHAPTER 10 – Data Links
CX-Server PLC Tools_ Page 127
Controller Link Automatic Setup
1 Before executing the following operations, connect online to the PLC that is serving as the startup node.

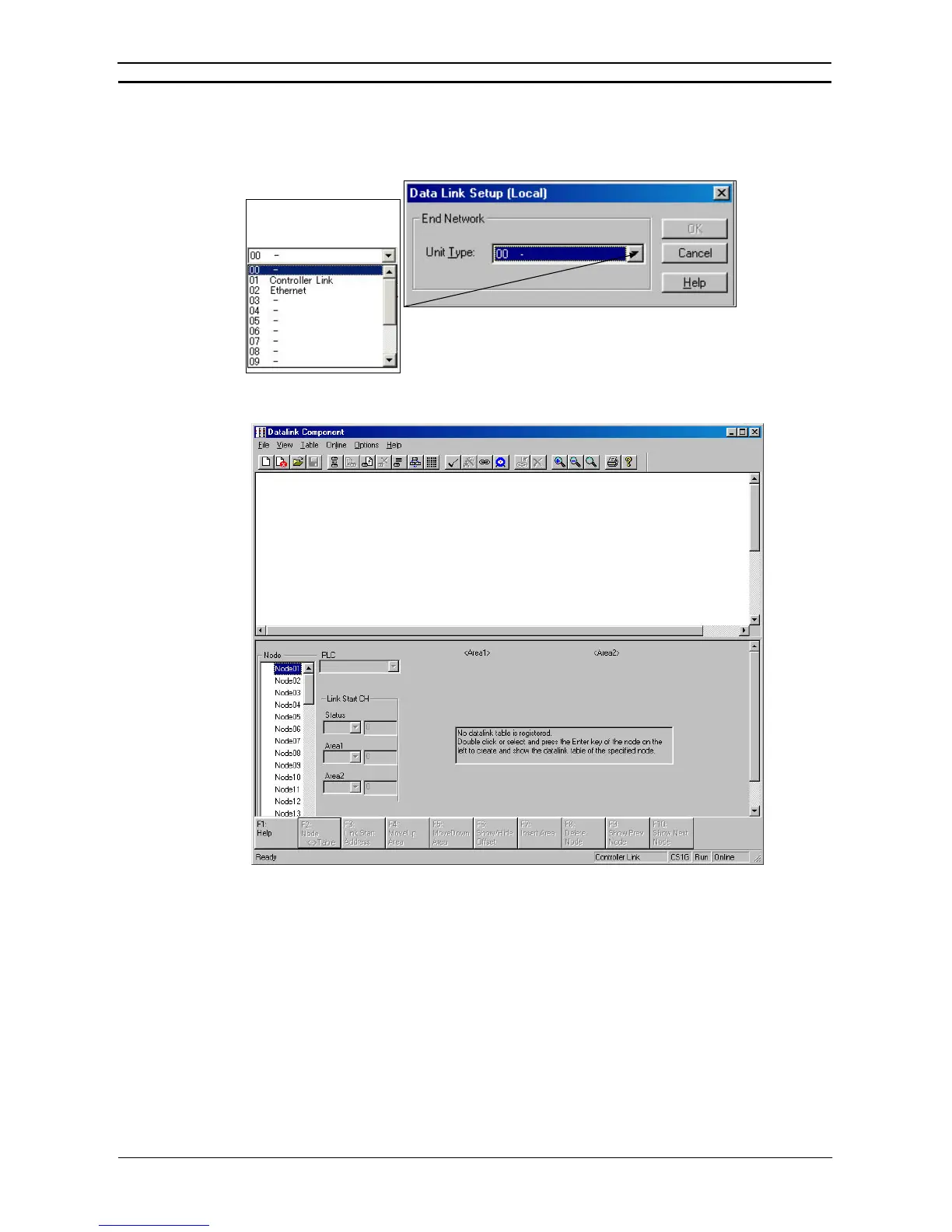

2 Select Data Link | Setup from the CX-Net. (For local network only, i.e., when network address is 0.)
Clicking on this down arrow will
display the Communications
Units mounted to the PLC, as
shown below.
3 Select Controller Link, and then click the OK button.
The Datalink Component (Controller Link) window will be displayed.
4 Select Automatic Datalink Setup from the Online menu.
The Automatic Datalink (Controller Link) dialog box will be displayed.
To Next Page
