PART 2: CX-Server PLC Tools
CHAPTER 10 – Data Links OMRON
CX-Server PLC Tools_Page 128
♦ Controller Link
Select
Start
in
order to have data
links start when the
PLC is started.
Select
Automatic
.
(If
Manual
is
selected, data link
tables created by
the user will be
used.)
If
Automatic
is
selected, data link
parameters can be
set.
When
Read
or
Write
is executed,
the results are
displayed here.
Reads settings
data from the PLC.
Transfers settings
data to the PLC.
5 Select Start or Stop in the Power Up Run State field.
Note: Selecting Start causes the data links to start when the PLC is powered up, without
having to perform any other data link startup operation.

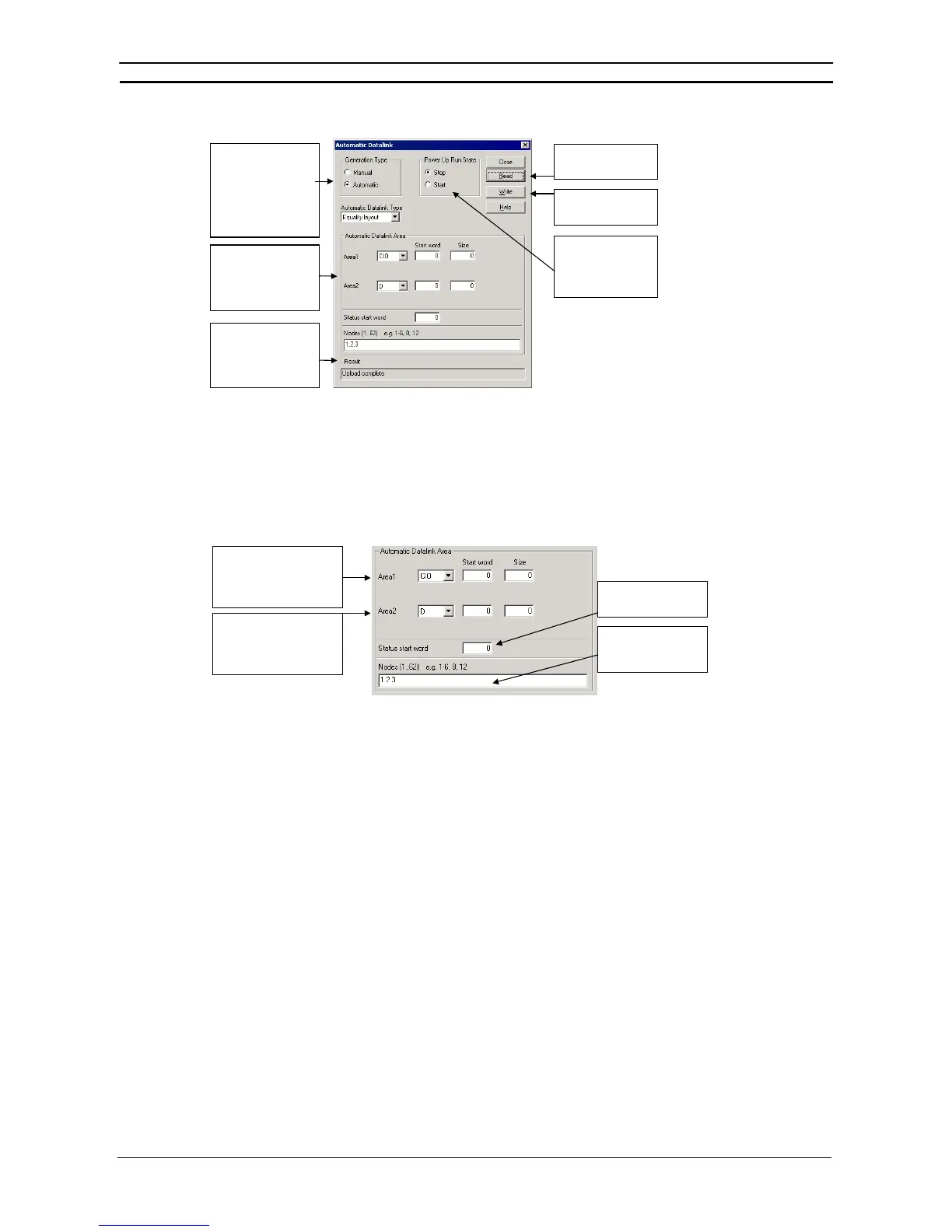

When Automatic is selected, the automatic data link setup parameters can be set, as
shown below.
♦ Controller Link
Set the status start
word.
Set the nodes
participating in the
data links.
Make the settings for Area
2. Set the area fo
executing the data links,
the start word, and the
size.
Make the settings for Area
1. Set the area for
executing the data links,
the start word, and the
size.
7 Set the automatic data link setup parameters.
