PART 2: CX-Server PLC Tools
CHAPTER 5 – Data Trace/Time Chart Monitor Component OMRON
CX-Server PLC Tools_Page 56
Setting on [Trace Object]Tab
Set trace object.
1 Select [Trace Object] tab on [Data Trace Configuration] dialog box.

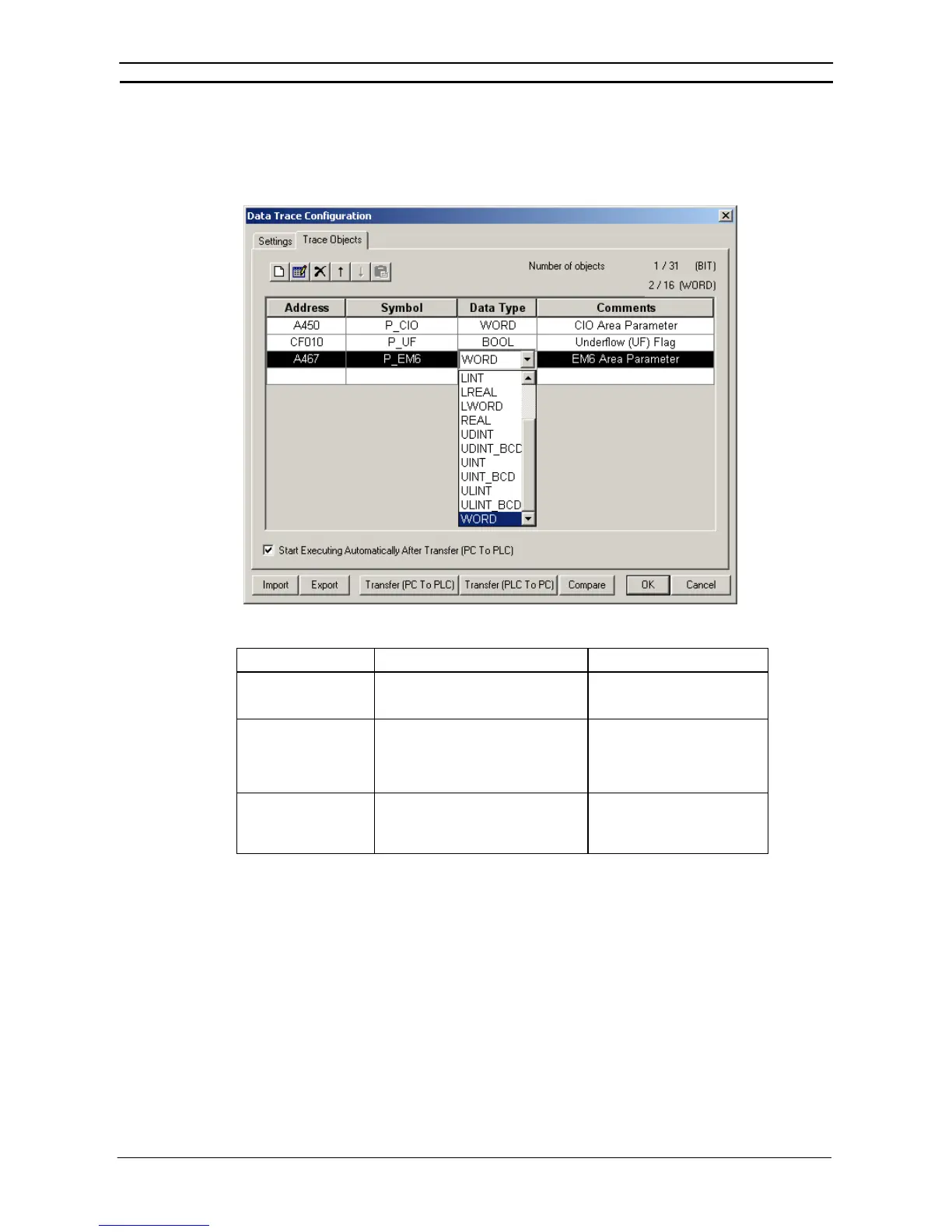

The following screen will appear.
2 Input trace object. The methods of trace object input are the three of the following. Input trace object with
the combination of 1ch data, 2ch data, 4ch data, and bit.
Input methods Details Notes
Insert
[Insert] on right click menu
[Insert] button on tool bar
Input symbol or address. Input is
possible with search from
Symbol Table.
Paste
[Paste] on right click menu.
[Paste] on tool bar
[Ctrl]+[V] key
Copy and paste from Symbol
Table, Ladder View or Watch
Window. Multiple trace objects
can be inserted at the same
time.
Drag & Drop Select the object for trace, right click
on it and hold the click for drag. Drag
and drop it to trace object tab.
Drag can be done from Symbol
Table or Ladder View. Multiple
trace objects can be inserted at
the same time.
3 Select data type of trace object.
Note: Click on [↑] or [↓] on tool bar to change the order of trace object. Trace result will be
displayed in order of the setting of trace objects.
Note: Select the trace object and [Delete] on right click menu to delete trace object or click on
[Delete] on tool bar or press [Del] key.
