PART 2: CX-Server PLC Tools
OMRON CHAPTER 5 – Data Trace/Time Chart Monitor Component
CX-Server PLC Tools_ Page 63
Time Chart Monitor
Parameter Settings of Time Chart Monitor for CS/CJ/CP
Parameter settings of Time Chart Monitor for CS/CJ/CP will be discussed.
Display [Time Chart Monitor Configuration] dialog box
1 Select [Time Chart Monitor] from [PLC] menu on main window. (when Data Trace window is already open
and Data Trace or logging is selected, select [Operation]| [Mode]| [Time Chart Monitor])
2 Select [Operation]| [Settings] on Data Trace window.

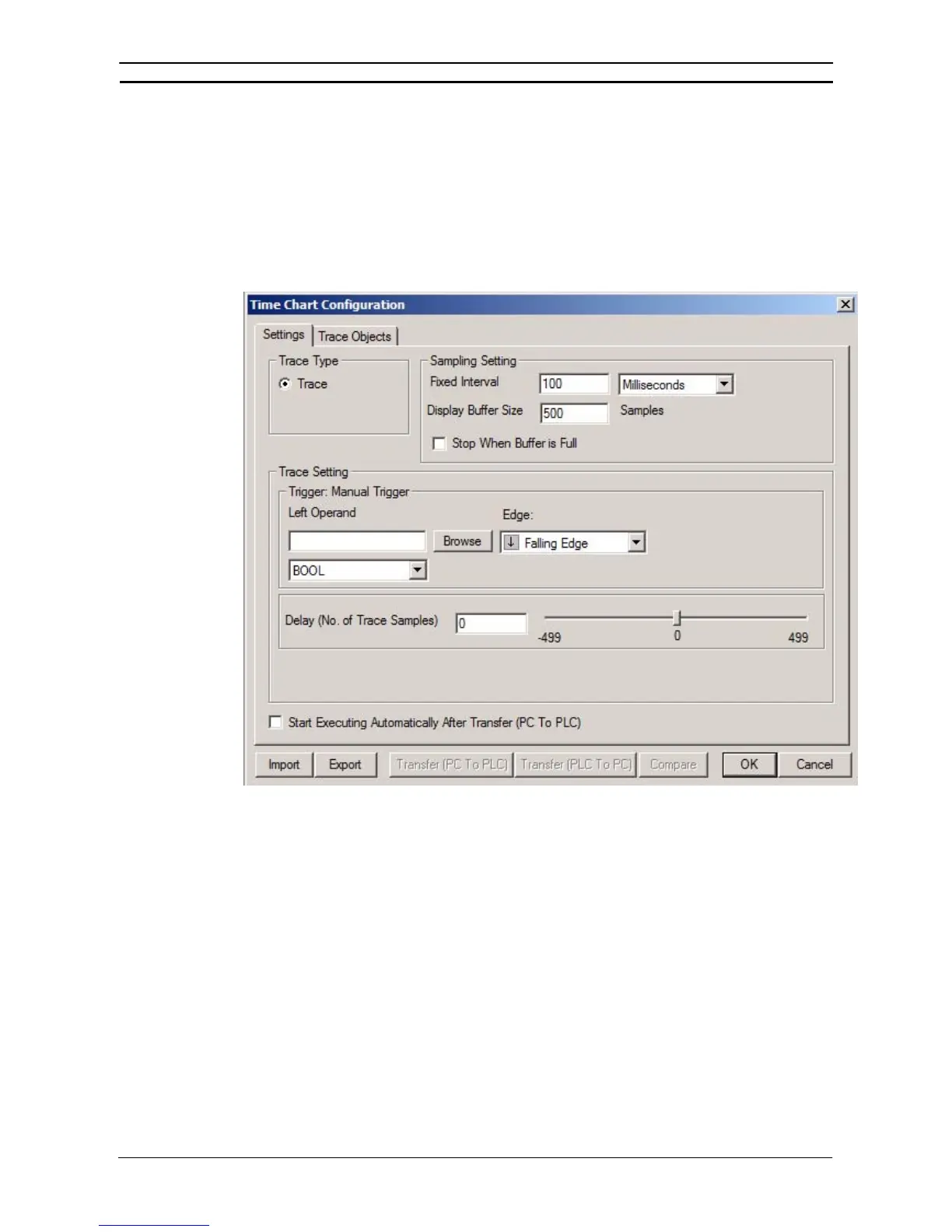

[Time Chart Monitor Configuration] dialog box will appear as follows.
Refer to “Parameter Settings of Data Trace for CS/CJ/CP” for the functions of the buttons located at the bottom
3 Click on the items to be set.
4 Click on [Transfer (PC to PLC)] or [OK] when all settings are done.
The setting details of each tab are described hereinafter.
