PART 2: CX-Server PLC Tools
CHAPTER 10 – Data Links OMRON
CX-Server PLC Tools_Page 122

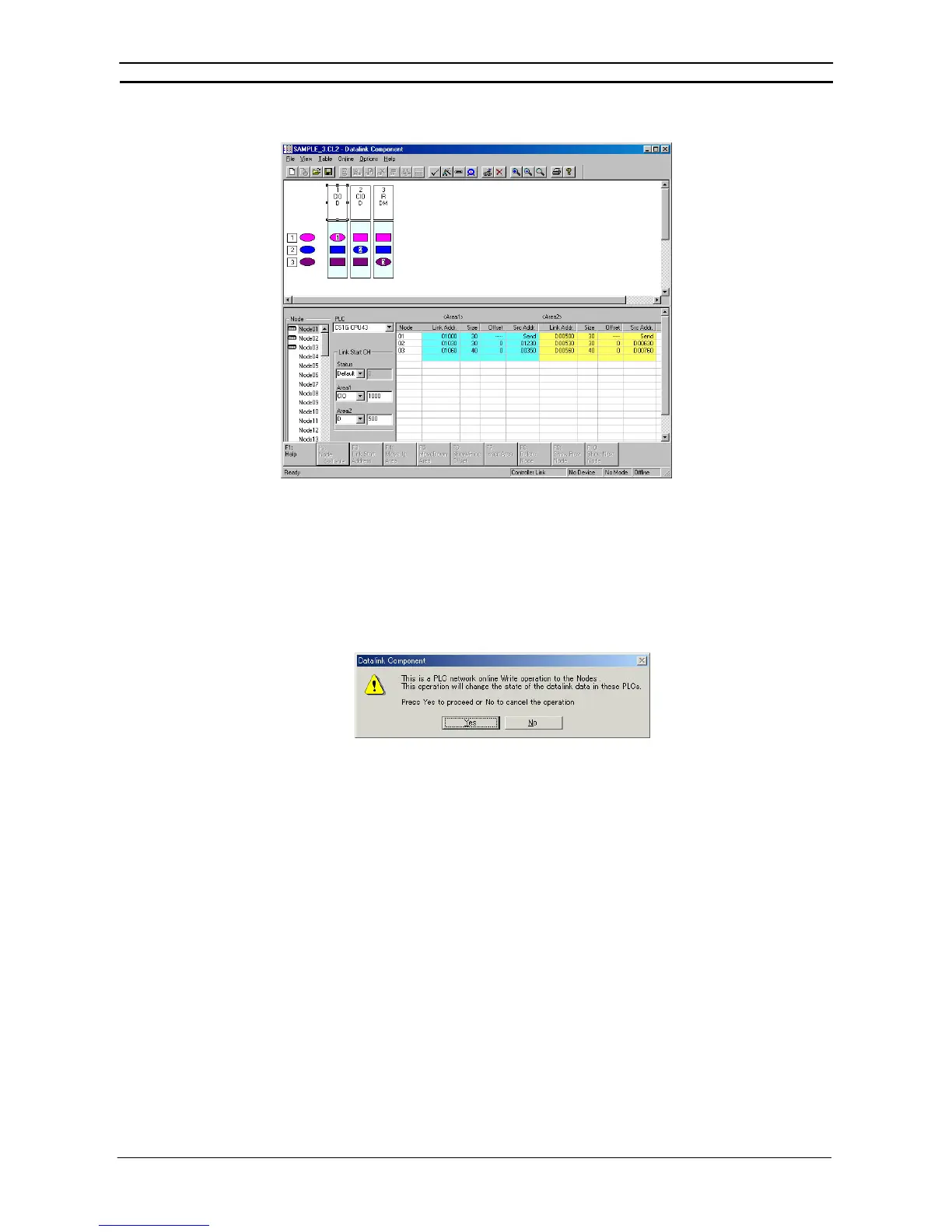

The data link tables will be read as shown below.
Note: Before selecting Data Link Setup, make sure that the PLC can be connected online.
Transferring the Data Link Table
Transferring to All Nodes on the Network
1 Select Set All Nodes for Network Operation from the Datalink Component’s Online menu. Selecting this
operation allows the data link tables to be transferred simultaneously to multiple PLCs.
2 Select Online | Transfer to PLC. The following dialog box will be displayed.
3 Click the Yes button.
4 An error list will be displayed.
To Next Page
