PART 2: CX-Server PLC Tools
CHAPTER 12 – PLC Backup Tool OMRON
CX-Server PLC Tools_Page 150
Procedure
1, 2, 3…
1. Click the Backup from PLC Button in the PLC Backup Tool Dialog Box.

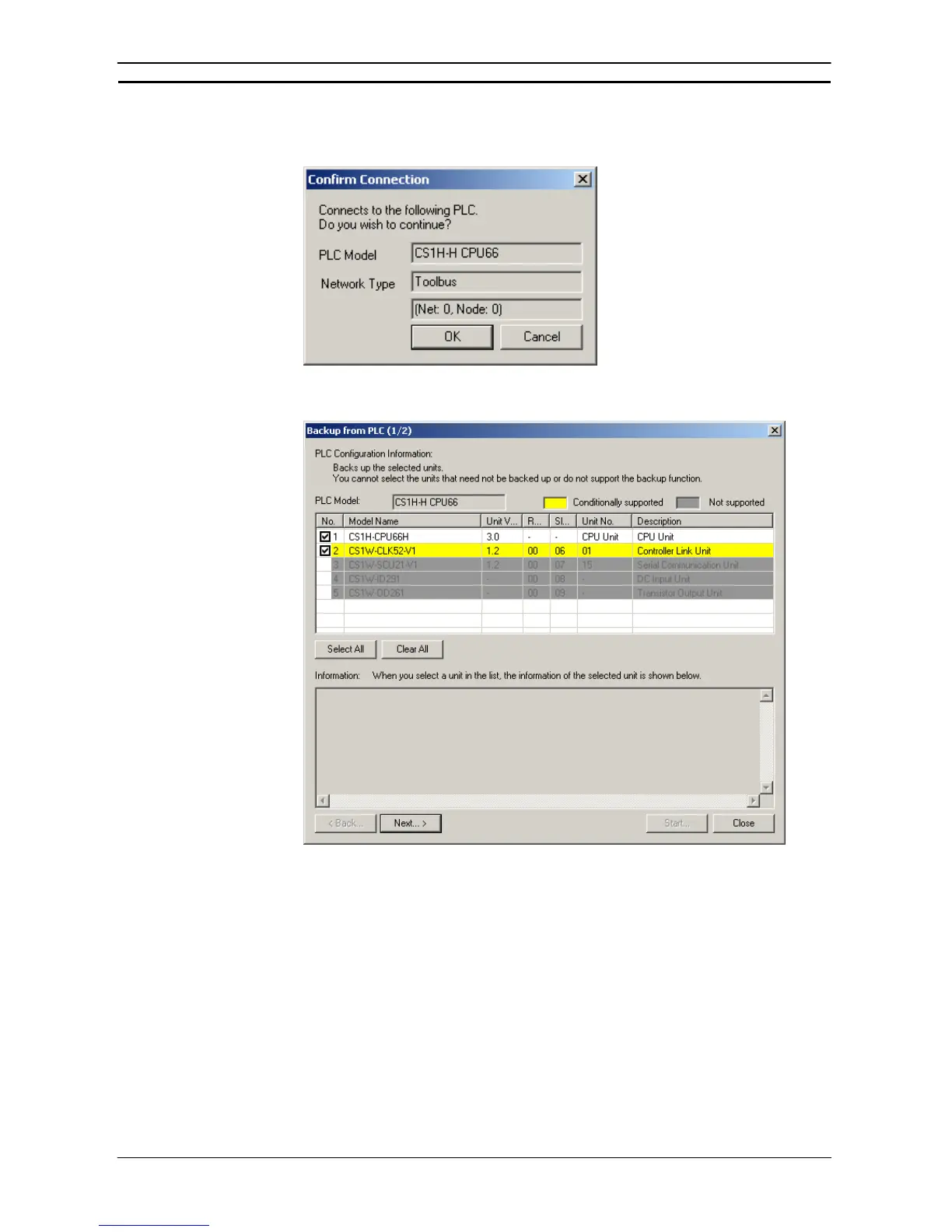

The following Confirm Connection Dialog Box will be displayed.
2. Check that the target PLC is correct and click the OK Button.
The following Backup from PLC (1/2) Dialog Box will be displayed after an online
connection is made to the PLC.
The registered I/O tables will be read from the connected PLC and all Units in the PLC
will be displayed in the list.
To Next Page
