PART 3: CX-Server Runtime
CHAPTER 3 – Communications OMRON
CX-Server Runtime_Page 30 Revision 2.0
CX-Programmer
EtherNet/IP
CJ2
CJ2
CJ2
Specify IP address
Specify IP address
Specify IP address
Note: When running the CX-Programmer on Windows XP (SP2 or .higher), Windows Vista, or
Windows 7 and connecting online to a PLC via EtherNet/IP for the first time, the settings of
the Windows Firewall will need to be changed. Refer to Appendix B EtherNet/IP Connections
from Windows XP (SP2 or Higher) or Windows Vista in Part 1: CX-Programmer for details
on making the changes.
Setting Procedure
Perform one of the following procedures to make the communications settings.
♦ Directly Connecting to the Gateway PLC Using an USB Cable, and Then Connecting to the PLC on the
Network through the Gateway PLC.
1. When you create a new project, select CJ2H or CJ2M in the Device Type Field.
2. Select USB in the Network Type Field. (USB is the default connection method.)

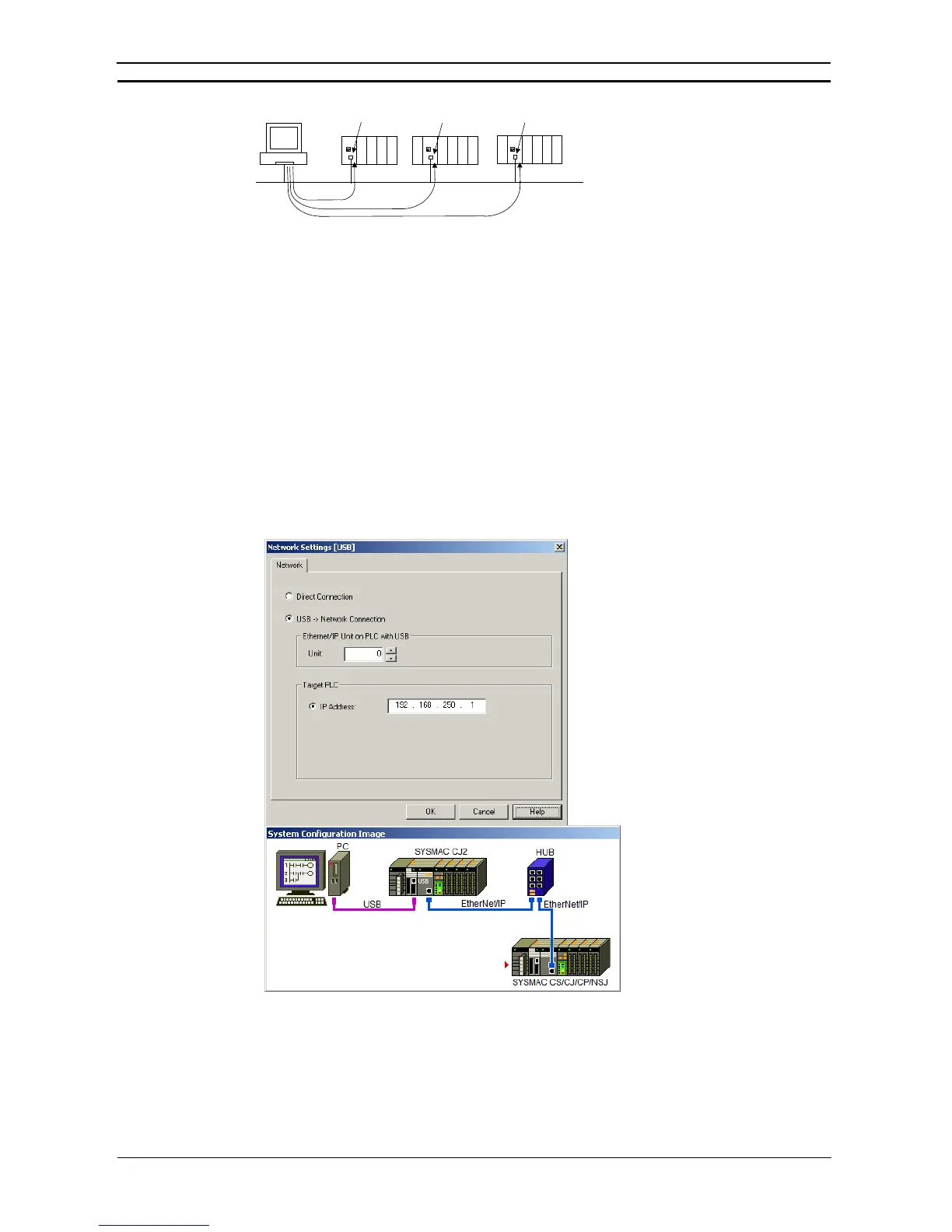

3. Click the Settings Button next to the Network Type Field. The following Network Settings
[USB] Dialog Box and System Configuration Image will be displayed.
Select the USB –> Network Connection Option on the Network Tab Page, and click the OK
Button.
4. Input the unit number of the EtherNet/IP Unit or the built-in EtherNet/IP port of the CJ2H-
CPU6@-EIP or CJ2M-CPU3@ that is connected to the gateway PLC side that is connected by
USB and the IP address of the PLC that is on the network and is to be connected to and then
click the OK Button.
