Omron F3SJ Series User Manual

138

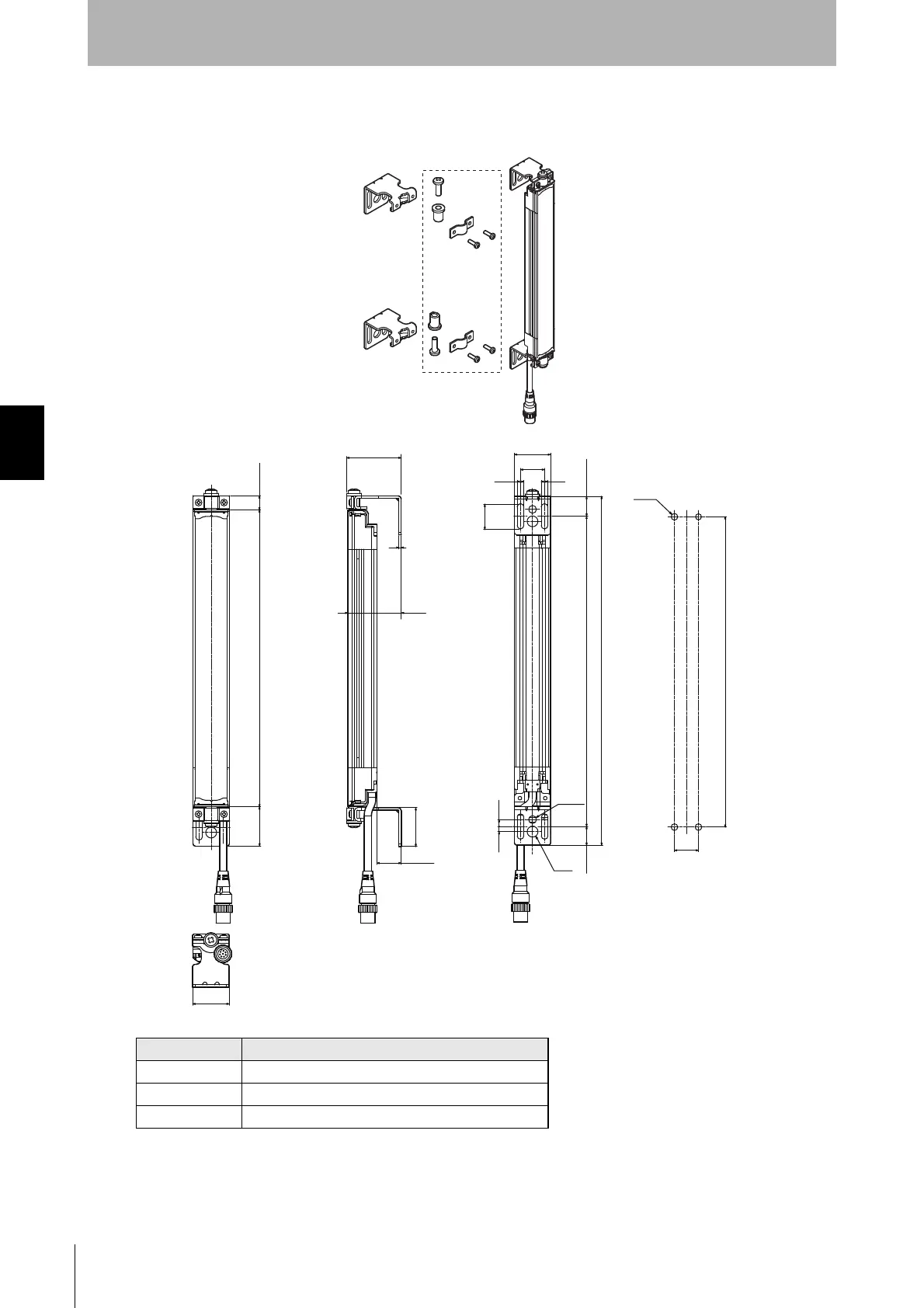

Chapter4 Dimensions
F3SJ-A
User’s Manual
Wiring/Installation
Dimensions A to C
AC + 44
BC + 12
C 4-digit number of the model name (protective height)
F39-LJ5
Inward + outward-facing mounting
Use standard
brackets
30
19.9
32
32.5
(11.5)
5.8
4.2
15.5
21
B
A
(16.5)
5.5 5.5
20
30
B
20
4-M5
2
C (Protective height)
(Unit: mm)
Material: Stainless steel
dia.6.5
dia.9
44
44.9

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
