350
Bit
status will remain ON or OFF only as long as the key is held down; the original
status
will return as soon as the key is released. If a timer is started, the comple
-
tion flag for it will be turned ON when SV has been reached.
SHIFT
and PLA
Y/SET or SHIFT and REC/RESET can be pressed to maintain
the
status of the bit after the key is released. The bit will not return to its original
status until the NOT key is pressed, or one of the following conditions is met.
1, 2, 3... 1. The Force Status Clear operation is performed.
2. The PC mode is changed. (See note.)
3. Operation stops due to a fatal error or power interruption.
4. The I/O Table Registration operation is performed.
This
operation can be used
in MONIT
OR mode to check wiring of outputs from
the
PC prior to actual
program execution. This operation cannot be used in RUN
mode.
Note The forced set/reset bit status will be maintained when switching from PRO-
GRAM
to MONIT
OR mode if the Force Status Hold Bit is ON and DM 6601 of
the
PC
Setup has been set maintain the bit’
s status. Refer to
3-6-4 PC Setup
for de
-
tails.

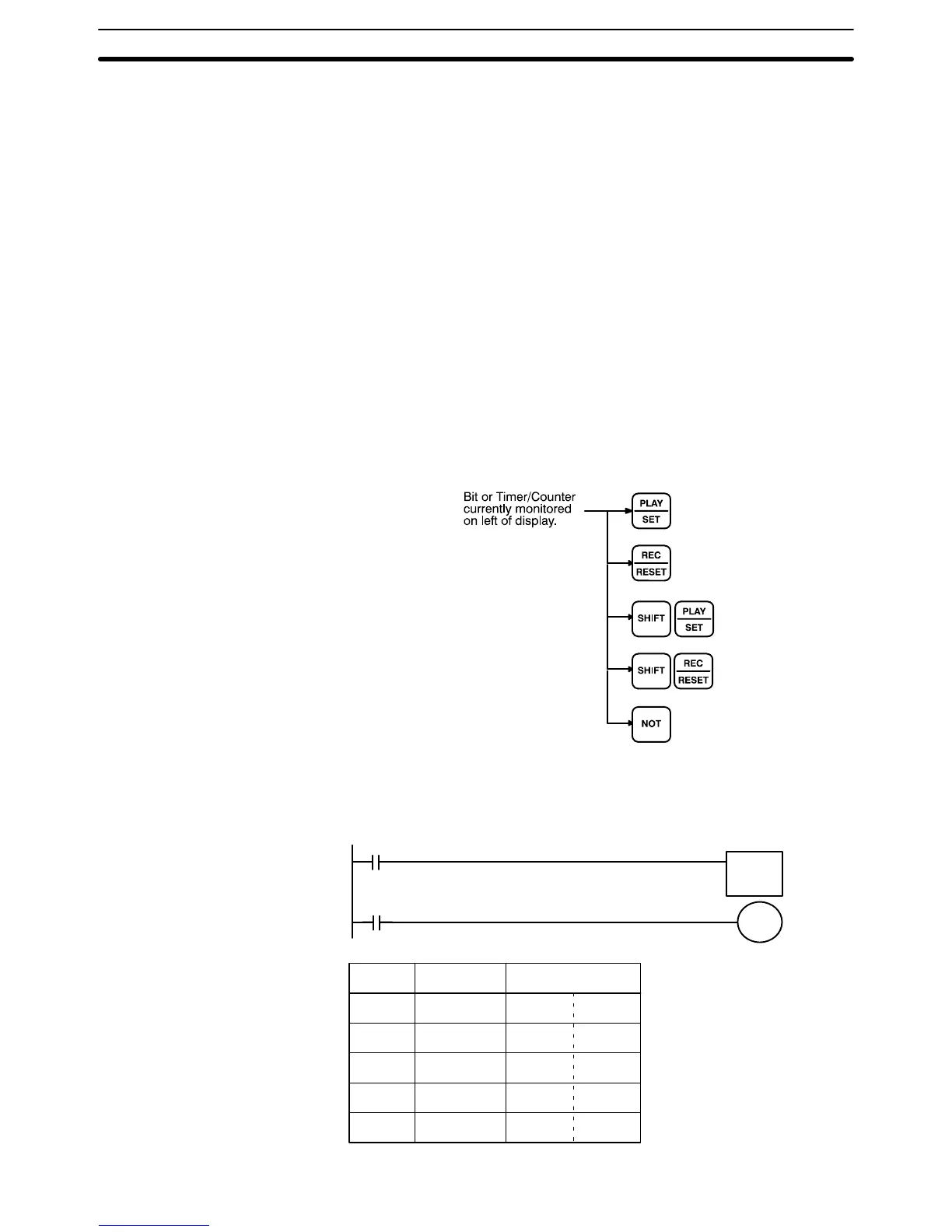

Key Sequence
Example The
following example shows how either bits or timers can be controlled with the
Force
Set/Reset operation. The displays
shown below are for the following pro
-
gram section.
Address Instruction Data
00200 LD 00100
00201 TIM 000
# 0123
00202 LD TIM 000
00203 OUT 00500
00100
TIM 000
00500
012.3 s
TIM 000
#0123
Monitoring Operation and Modifying Data Section 7-1
