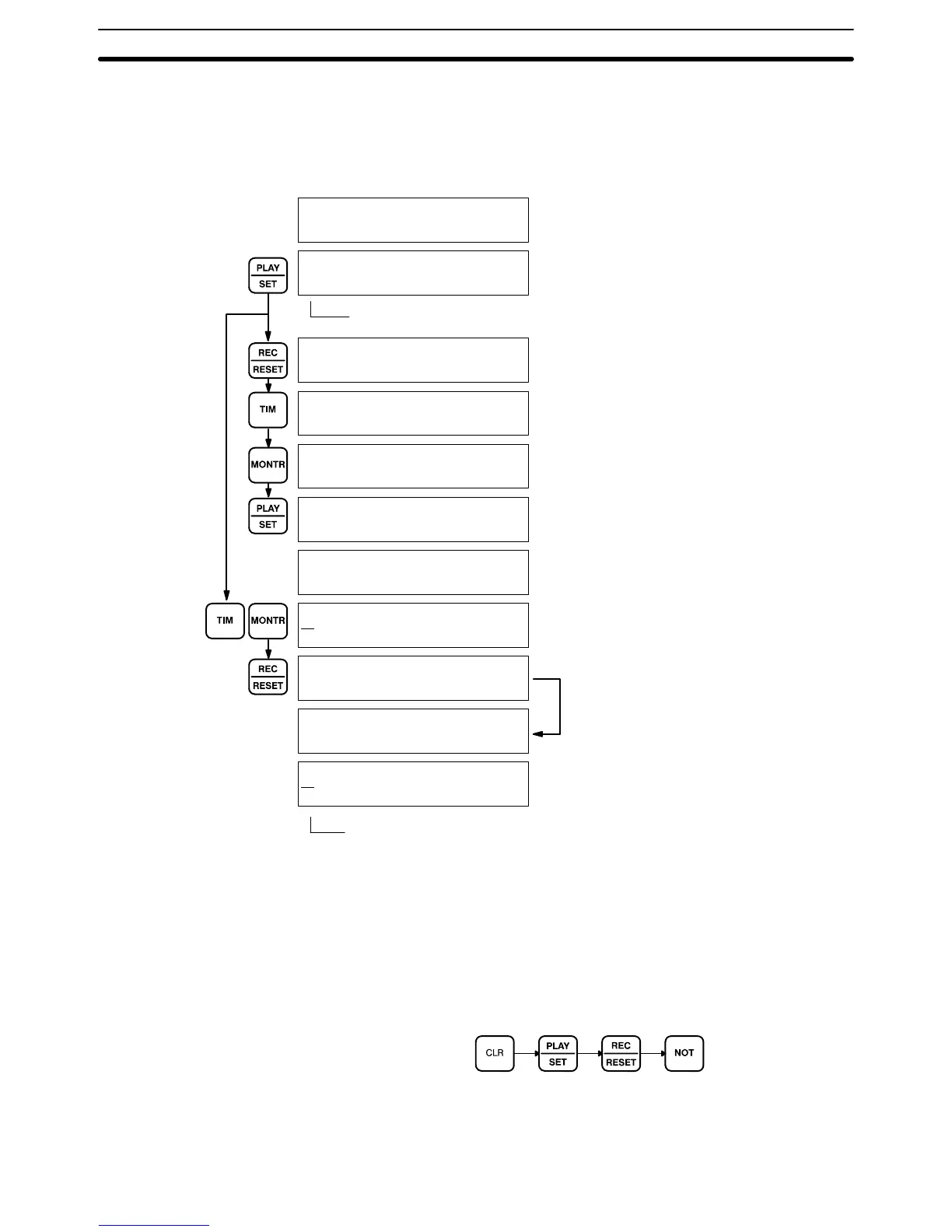

The following displays show what happens when TIM 000 is set with 00100 OFF
(i.e., 00500 is turned ON) and what happens when TIM 000 is reset with 00100
ON (i.e., timer starts operation, turning OFF 00500, which is turned back ON
when the timer has finished counting down the SV).
(This example is performed in MONIT OR mode.)
Indicates that force set/reset is in progress.
Indicates that the time is up.
Monitoring TIM 000.
Force setting TIM 000
turns ON 00500.
TIM 000 returns to its original status
when PLA Y/SET is released.
Display with 0010 originally ON.
T imer starts timing, turning
00500 OFF .*
When the time is up, 00500
goes ON again.
*T iming not done in PROGRAM mode.
0010000500
= OFF^ OFF
T0000010000500
^ OFF^ OFF
T0000010000500
0123^ OFF^ OFF
T0000010000500
=0000^ OFF^ ON
T0000010000500
0123^ OFF^ OFF
T0000010000500
o
0000^ ON^ ON
T0000010000500
=0123^ ON^ OFF
T0000010000500
0122^ ON^ OFF
T0000010000500
o
0000^ ON^ ON
0010000500
^ OFF^ OFF
0010000500
= ON^ OFF
Monitoring 00100 and 00500.
Force set bit status.
Reset the force-set bit.
7-1-3 Forced Set/Reset Cancel
This operation restores the status of all bits in the I/O, IR, TIM, CNT , HR, AR, or
LR areas which have been force set or reset. It can be performed in PROGRAM
or MONITOR mode.
Key Sequence
When the PLA Y/SET and REC/RESET keys are pressed, a beeper will sound. If
you mistakenly press the wrong key, then press CLR and start again from the
beginning.
Monitoring Operation and Modifying Data Section 7-1
