354
7-1-5
Hex/ASCII Display Change
This
operation converts DM data displays from 4-digit hexadecimal data to AS
-
CII and vice versa.

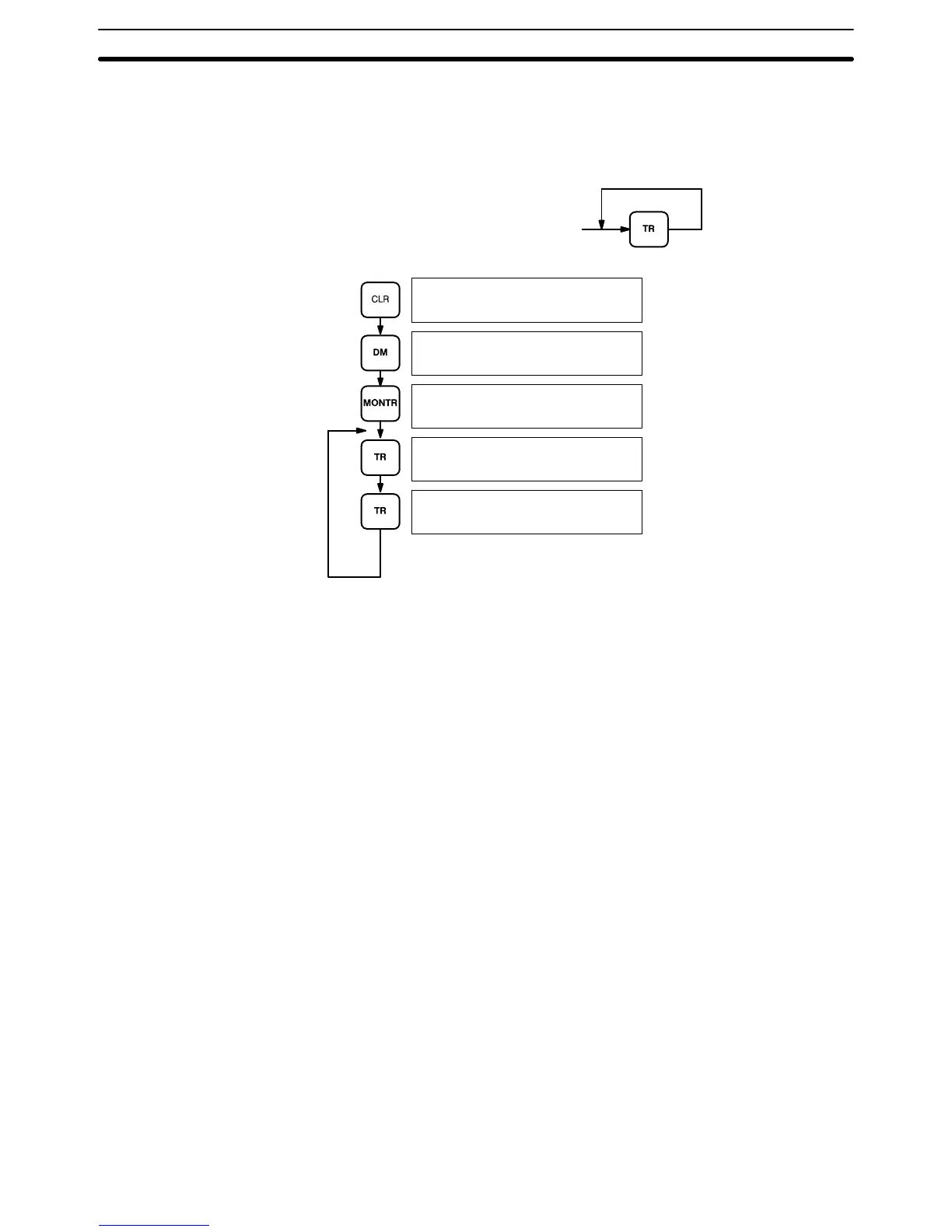

Key Sequence
Word currently
displayed.
00000
00000
C
H
D
M
0000
D0000
4412
D0000
"AB"
D0000
4142
Press
TR to change the display
to ASCII code.
Press TR again to return the
display to hexadecimal.
Monitor the desired DM word.
Example
Monitoring Operation and Modifying Data
Section 7-1
361
363
