7-1-6 4-digit Hex/Decimal Display Change
This operation converts data displays from normal or signed 4-digit hexadecimal
data to decimal and vice versa.
Decimal values from 0 to 65,535 are valid when inputting normal 4-digit hexade -
cimal
data, and decimal values from –32,768 to +32,767 are valid when inputting
signed 4-digit hexadecimal data.

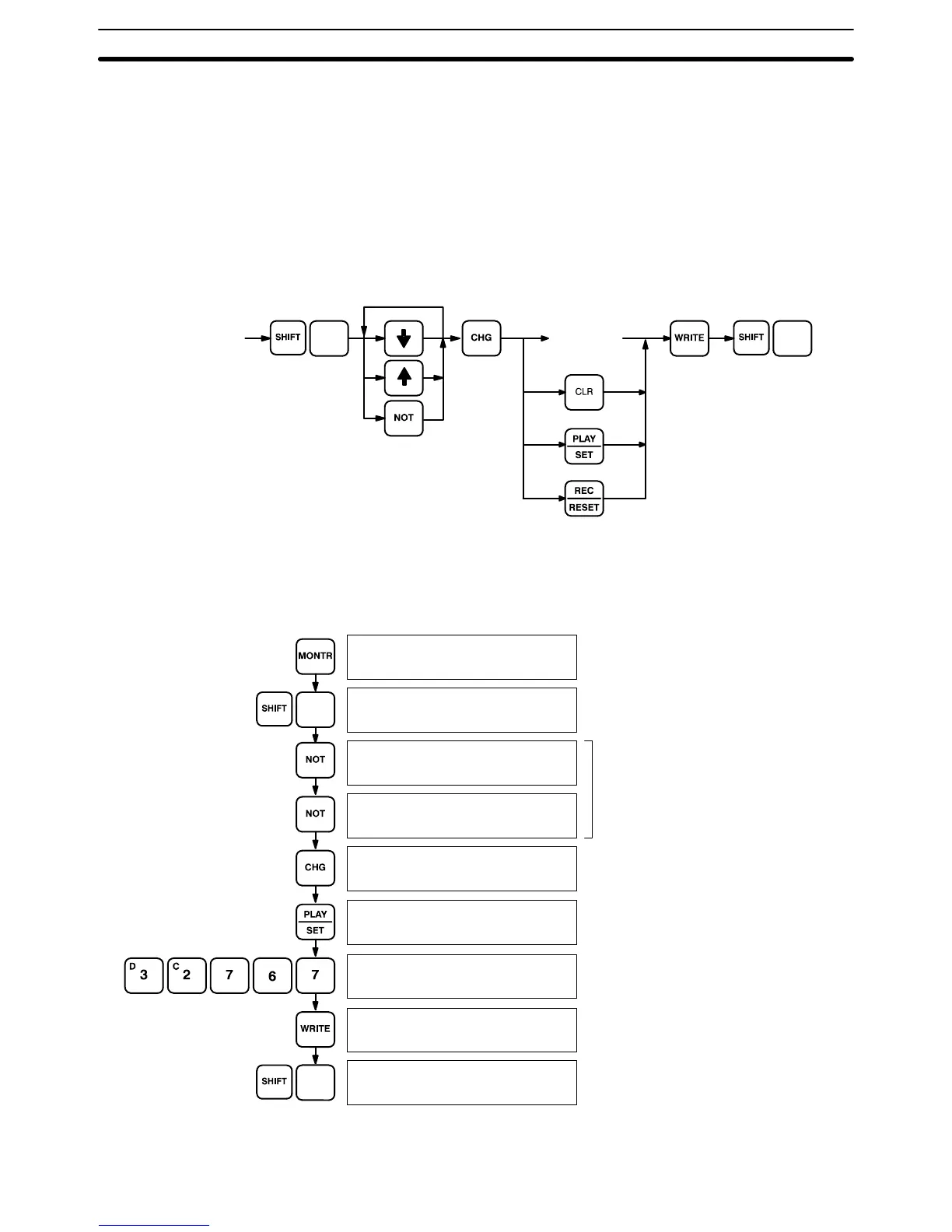

Key Sequence
Single word or
3-word monitor
currently displayed.
TR
(NOT switches between
normal and signed data.)
[New data]
Clear new input data.
Specifies positive
signed data.
Specifies negative
signed data.
TR
cL01D000000001
CFC7 1234R OFF
cL01
-12345
cL01
53191
cL01
-12345
PRES VAL?
cL01-12345
Monitor the desired word.
(Leftmost word in 3-word monitor .)
TR
Press SHIFT and TR to change the
display to signed decimal.
Press NOT to switch back and forth
between signed and normal data.
PRES VAL?
cL01+12345
PRES VAL?
cL01+32767
cL01
+32767
cL01D000000001
7FFF 1234R OFF
TR
Press SHIFT and TR to change the
display back to hexadecimal.
Press CHG to change the content of the
displayed word.
Press PLAY/SET to specify positive
signed data.
Input the new value.
Press WRITE to enter the new data to
memory.
Example
Monitoring Operation and Modifying Data Section 7-1
