All
bits from SR 27700 through SR 27909 will be turned OFF when AR 0708 is
turned
ON. Expansion
keyboard mapping inputs are disabled when AR 0708 is
ON.
In addition to the keyboard mapping function, expansion TERMINAL mode al-
lows
messages
output by MSG(46) and LMSG(47) to be displayed on the Pro
-
gramming Console. These messages will be erased if the Programming Con-
sole is switch back to CONSOLE mode.
The

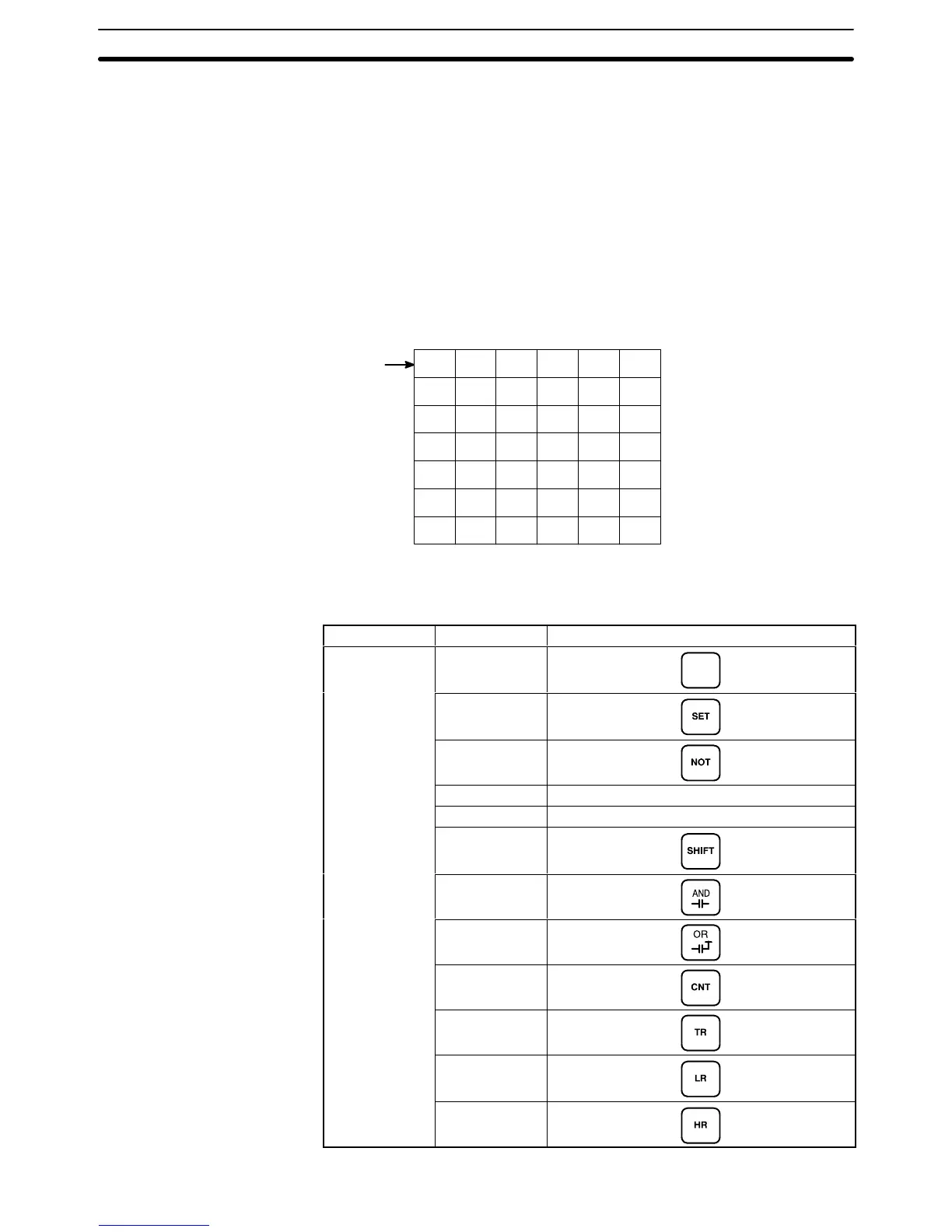

following diagram shows the correspondence between the position of Pro
-
gramming
Console keys and bits in the SR Area. Each
key corresponds 1 to 1
with a bit. Shifted inputs are not recognized. Keys 0 to 15 correspond to bits
SR 27700
to SR 27715, keys 16 to 31 correspond to bits SR 27800 to SR 27815,
and keys 32 to 41 correspond to bits SR 27900 to SR 27909.
012345
67891011
12 13 14 15 16 17
18 19 20 21 22 23
24 25 26 27 28 29
30 31 32 33 34 35
36 37 38 39 40 41
FUN key
The following table shows the correspondence between the actual Program-
ming Console keys and bits SR 27700 to SR 27909.
SR word Bit Corresponding key(s)
277 00
FUN
01
02
03 *1
04 *2
05
06
07
08
09
10
11
Monitoring Operation and Modifying Data Section 7-1
