c. Align the storage drive cage with the opening in the front panel of the server.
Pull the attached cables through the opening while gently pushing the storage
drive cage in to the chassis until it is fully seated in the chassis [4].
d. Using a Torx T15 screwdriver, tighten the two spring-mounted screws to
secure the storage drive cage to the chassis [5].

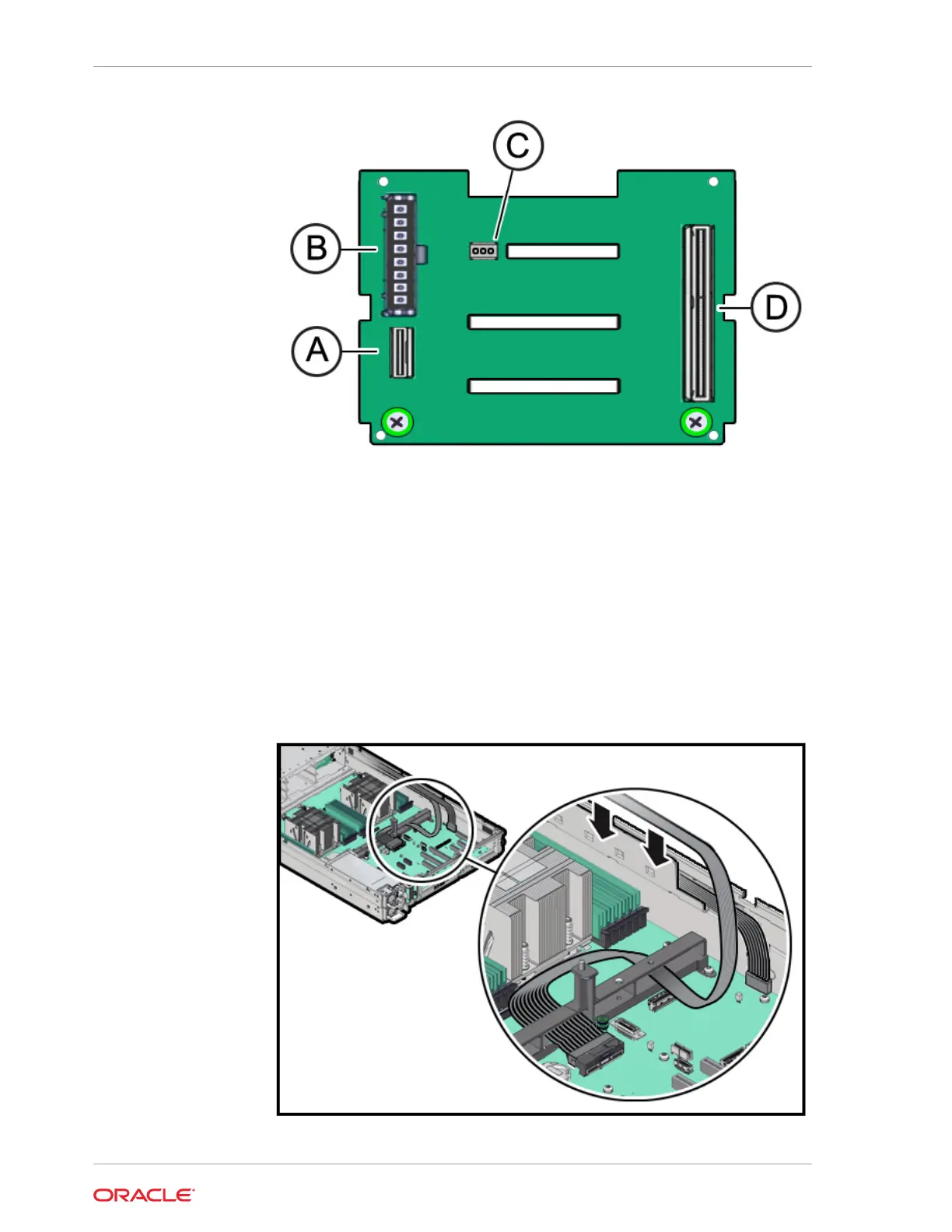

e. Reconnect the disk backplane Aux Signal cable and Power cable to their
motherboard connectors [6].
f. Then, gently insert the disk backplane Aux Signal and Retimer cables into the
cable trough on the side of the chassis wall (on the left side when facing the
front of the system).
Chapter 5
Servicing the Disk Backplane (FRU)
5-28
