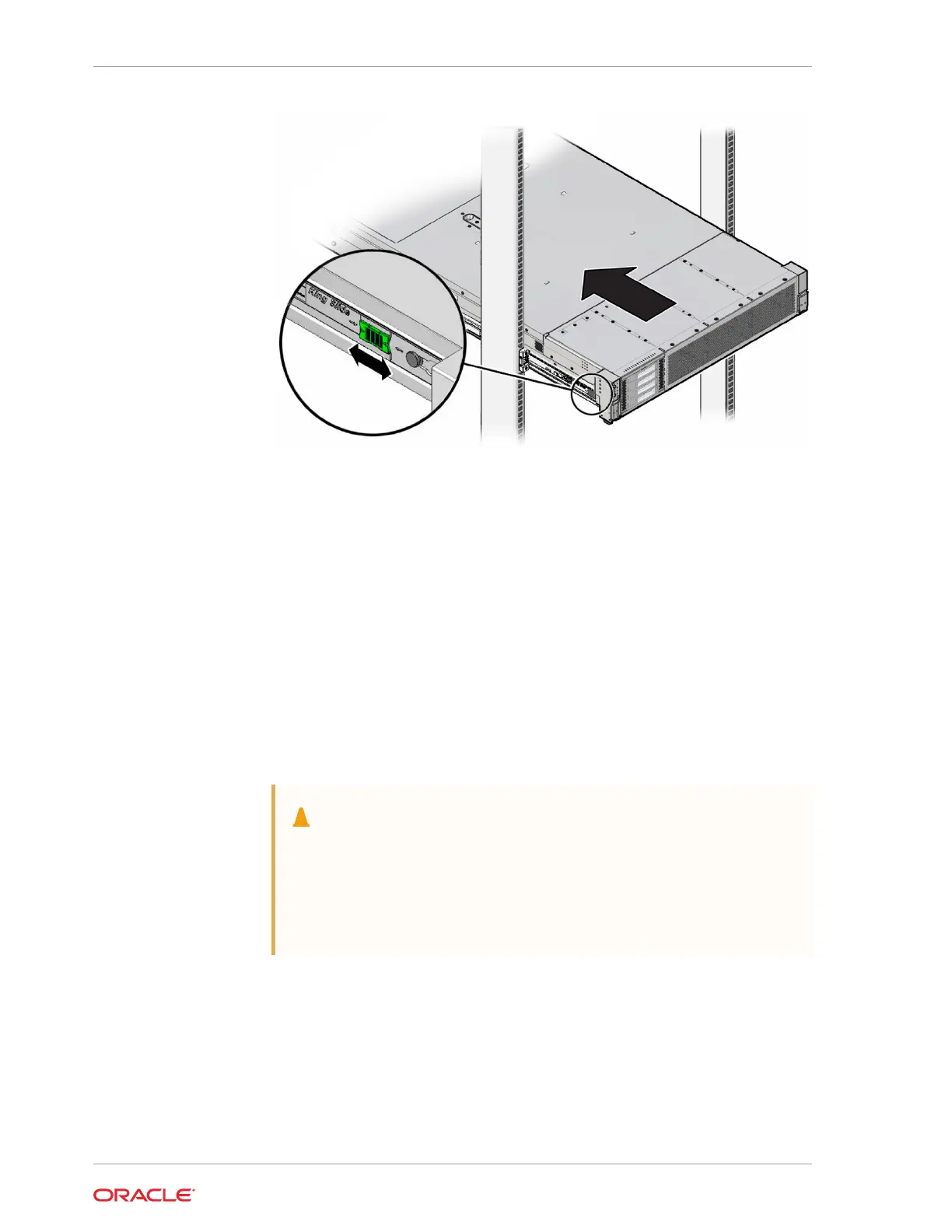

c. Continue pushing the server into the rack until the slide-rail locks (on the front
of the server) engage the slide-rail assemblies.
You hear a click when the server is in the normal rack position.
d. Retract the rack anti-tilt mechanism back to its normal position.
11. Connect cables to the server, as required.
12. Open the CMA cable covers, route the server cables through the CMA cable
troughs (in the order specified in the following steps), close the cable covers, and
secure the cables with the six Velcro straps.
a. First through the front-most cable trough.
b. Then through the small cable trough.
c. Then through the back-most cable trough.
Caution:
When securing the cables with the Velcro straps located on the front
slide bar, ensure that the Velcro straps do not wrap around the
bottom of the slide bar. Otherwise, expansion and contraction of the
slide bar might be hindered when the server is extended from the
rack and returned to the rack.
Chapter 6
Install the Cable Management Arm (Optional)
6-12
