Frequency

(Hz)

Cycle (ms) Resolution S

Frequency

(Hz)

Cycle (ms)

Resolutio

K11 500.0 2.00 K27 70000.0 0.0143

K12 700.0 1.48 K28 80000.0 0.0125

100

K13 1000.0 1.00 K29 90000.0 0.0111

K14 1300.0 0.77 K30 100000.0 0.010

K15 1600.0 0.625 -

■

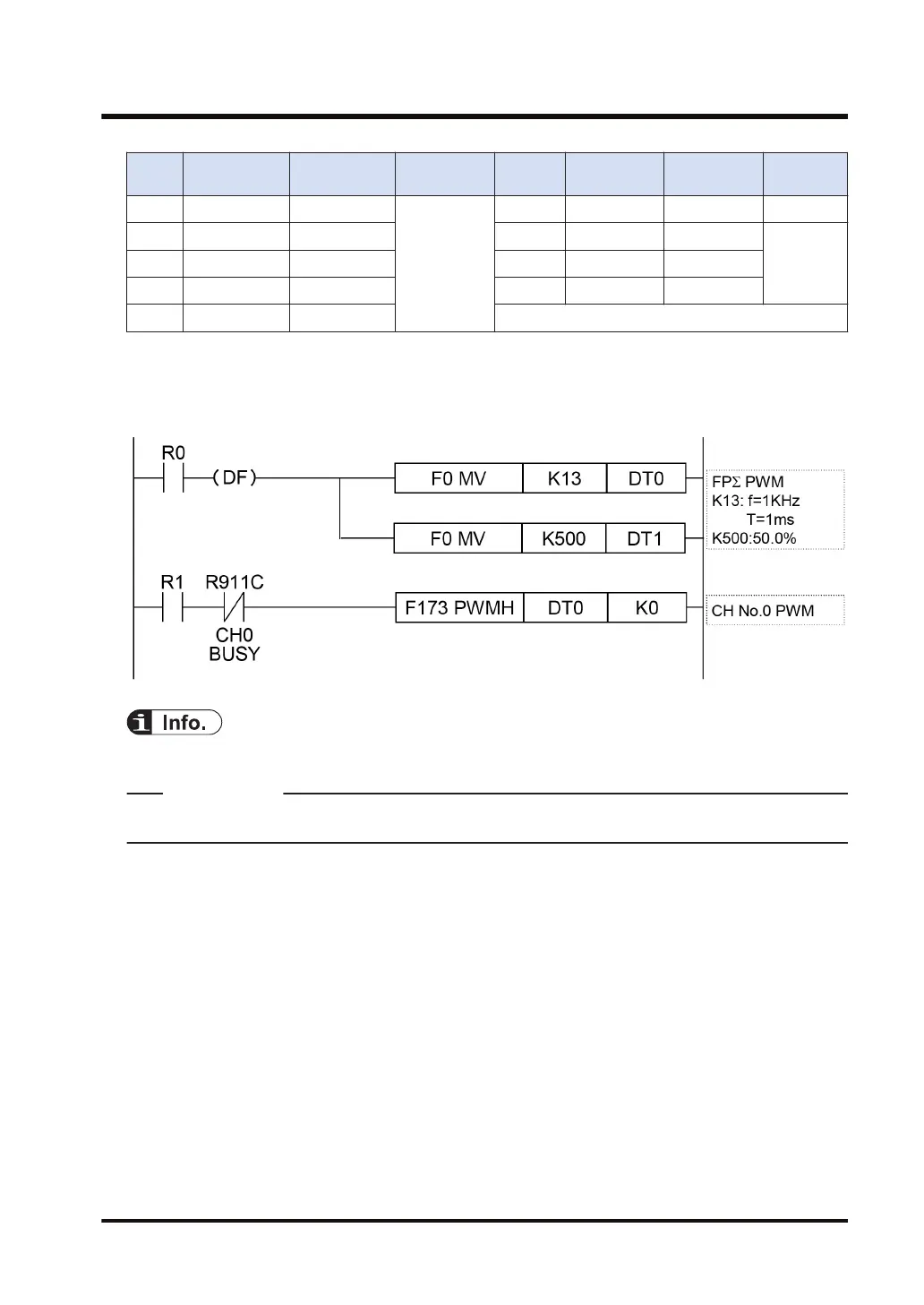

Example of program

The following sample shows the program for performing the PWM output with 1 kHz and the

duty ratio of 50% from CH0 (Y0).

● For details of the allocations of I/O and flags, refer to “Allocation of Memory Areas”.

REFERENCE

11.2.3 When Using PWM Output Function

9.1 PWM output function

WUME-FPXHPOSG-01 9-7
