Panasonic SP28P - Solder Dispensing

Page 3-22
Machine Adjustment

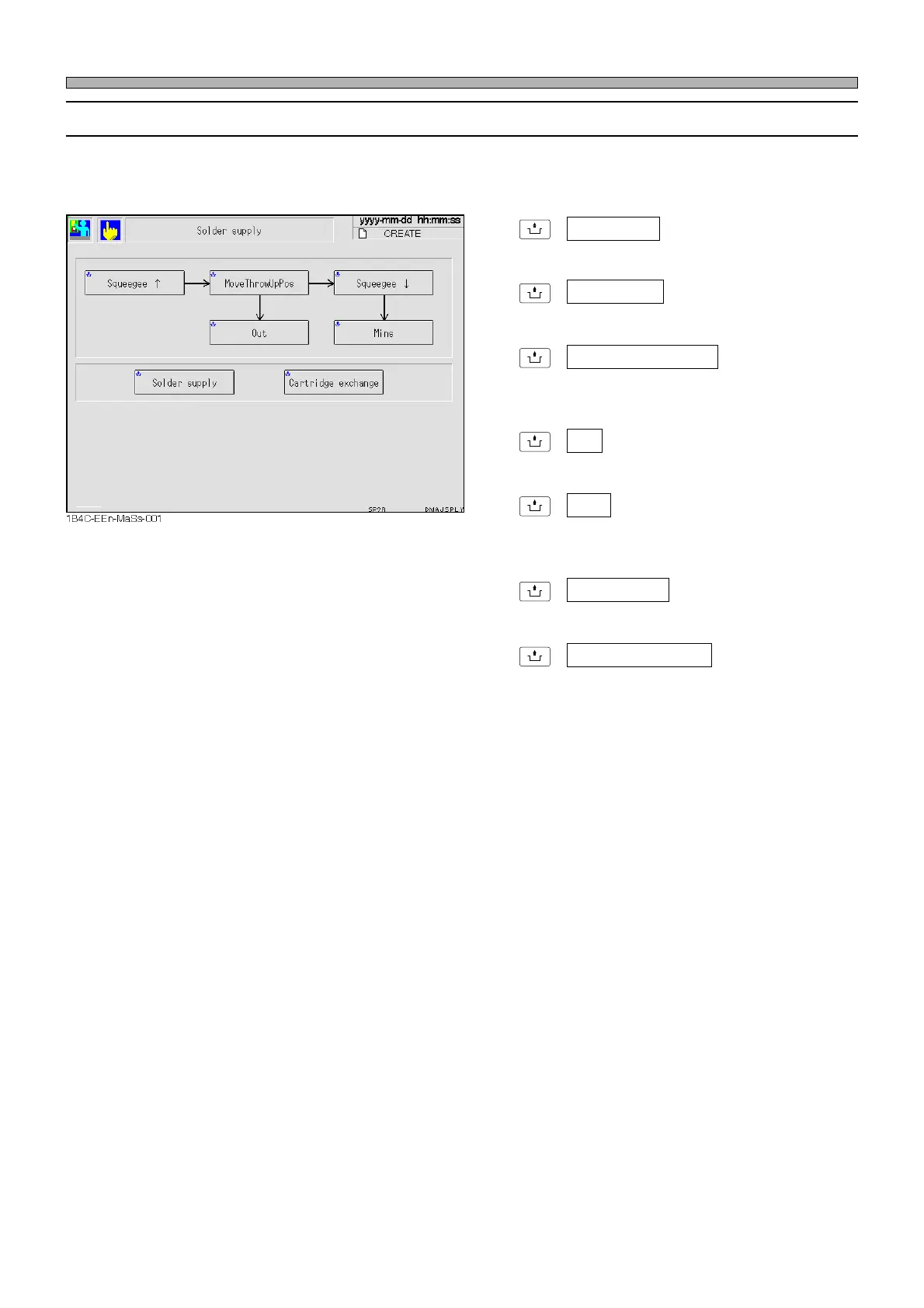

3-4-8 Solder Dispensing
This is used to check the motion of the solder dispensing unit and to replace the cartridge.
∗ This will operate when the solder autodispensing function switch is enabled.
UNLOCK
+ Squeegee ↑
Raises the squeegee.
UNLOCK
+ Squeegee ↓
Lowers the squeegee.
UNLOCK
+ Move Throw Up Pos
Moves the squeegee head to the solder
dispensing position.
UNLOCK
+ Out
Highlighted : Releases solder.
UNLOCK
+ Mins
Highlighted : Vacuums up solder into the
cylinder.
UNLOCK
+ Solder supply
Dispenses solder automatically.
UNLOCK
+ Cartridge exchange
Moves the squeegee head unit to the front
side.
1E4C-E-OMA03-A02-01
