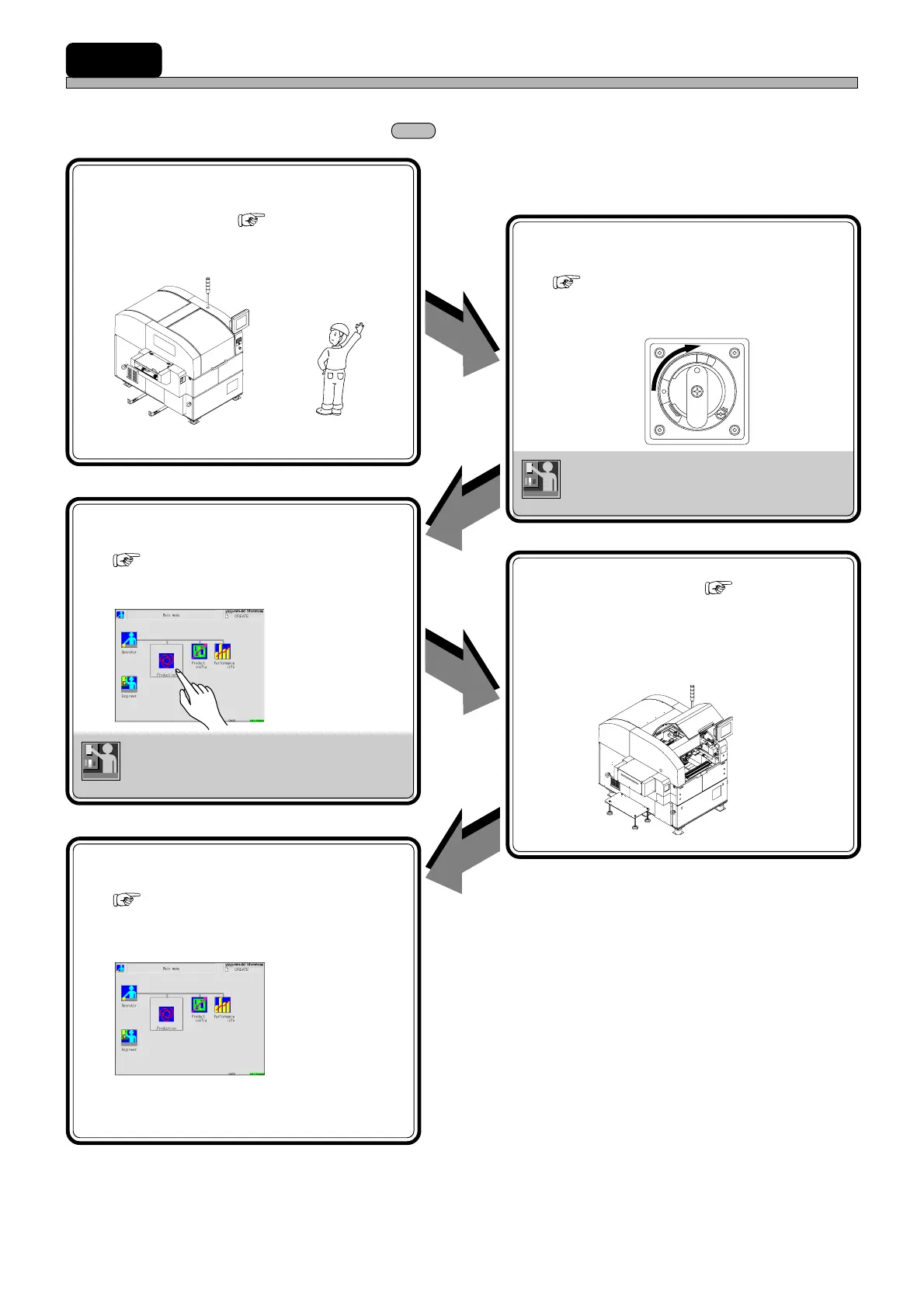

4-1 Production Work Flow
This section describes an operator’s work for production.
∗ Entrust the operations inside to engineer.
1 Preparations
• Start-up inspection (
4-2 Before Starting
Production)
Preparation
OK
5 Finishing production
( 4-6 Completion of Production)
• Perform the operation to finish production.
Production finishes.
3 Starting production
( 4-3-2 Production)
• Perform the operation to start production.
Production starts.
File operation (Data loading, etc.)
Troubleshooting of board recognition error,
etc.
2 Starting up this machine
( 4-3-1 Starting up this Machine)
• Turn on the power supply switch to start up
this machine.
Adjust the machine if it is in bad condi-
tion.
1E4C-AA00
4 Supplying materials ( Chapter 5
SETTING PRODUCTION MATERIALS)
• Supply solder, the solvent and the cleaning
paper when they run out.
1D4C-813E
Power ON
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
1E4C-E-OMA04-A01-01
Engineer
Engineer
