AS-i 3.0 EtherNet/IP Gateway with integrated Safety Monitor
Appendix: the first commissioning with CompactLogix
12. Appendix: the first commissioning with CompactLogix
This chapter shows exemplarily the start-up of the AS i 3.0 EtherNet/IP Gateways
with the software RSLogix 5000 CompactLogix, version 13.00.

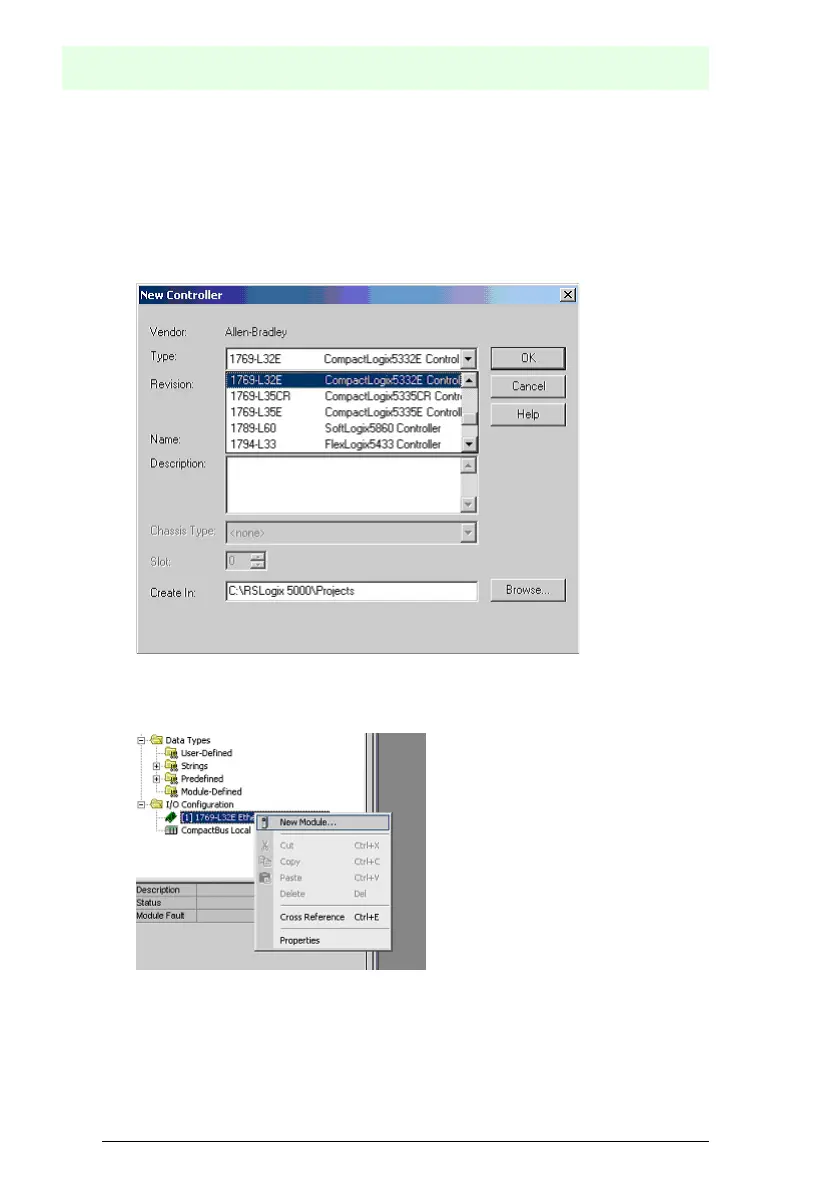

Start the software RSLogix 5000.
Select New from the menu File.
Now select your controller, register its name and confirm with OK.
Click in the tree view control window with the right mouse button on your con-
troller
Click in the PopUp window with the left mouse button on New Module.
To Next Page
