Issue date: 17.4.2009
40
Subject to reasonable modifications due to technical advances. © Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group · Tel.: Germany (6 21) 7 76-0 · USA (3 30) 4 25 35 55 · Singapore 7 79 90 91 Internet http://www.pepperl-fuchs.com
AS-i 3.0 EtherNet/IP Gateway with integrated Safety Monitor
Electrical connection

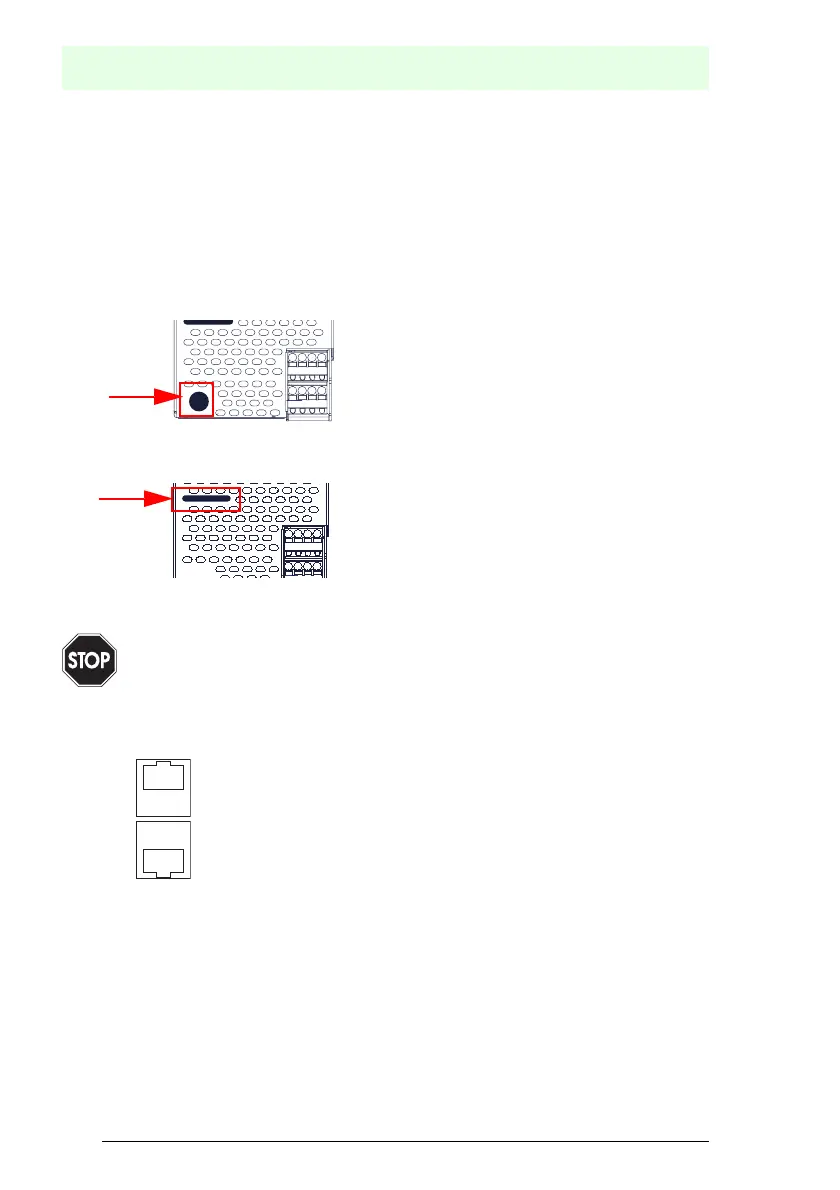

7.5 Diagnostics interface
The service and diagnostics interface (in conjunction with AS-i Control Tools or
ASIMON 3 G2 software) is used for communication between the PC and the unit.
7.5.1 Diagnostics port RS 232
The service and diagnostics interface is configured as a mini DIN-6 female and it
is placed on the front plate, on the left hand side.
7.6 Chip card
The configuration is stored in a fixed installed EEPROM and can be overwritten
by the chip card. The chip card does not have to be inserted in operation.
7.7 EtherNet/IP interface
The EtherNet/IP interface consists of two RJ-45 sockets. It is placed on the left
housing side (see section <Overview of terminals, indicators and operating ele-
ments>). The RJ-45 socket is based on the MDI (none auto-crossover) and sup-
ports 10 Base T or 100 Base TX networks according to the IEEE 802.3
Warning!
Power must always be turned off when removing or inserting the chip card!
A
B
