AS-Interface

Installation

5.8.3 Addressing

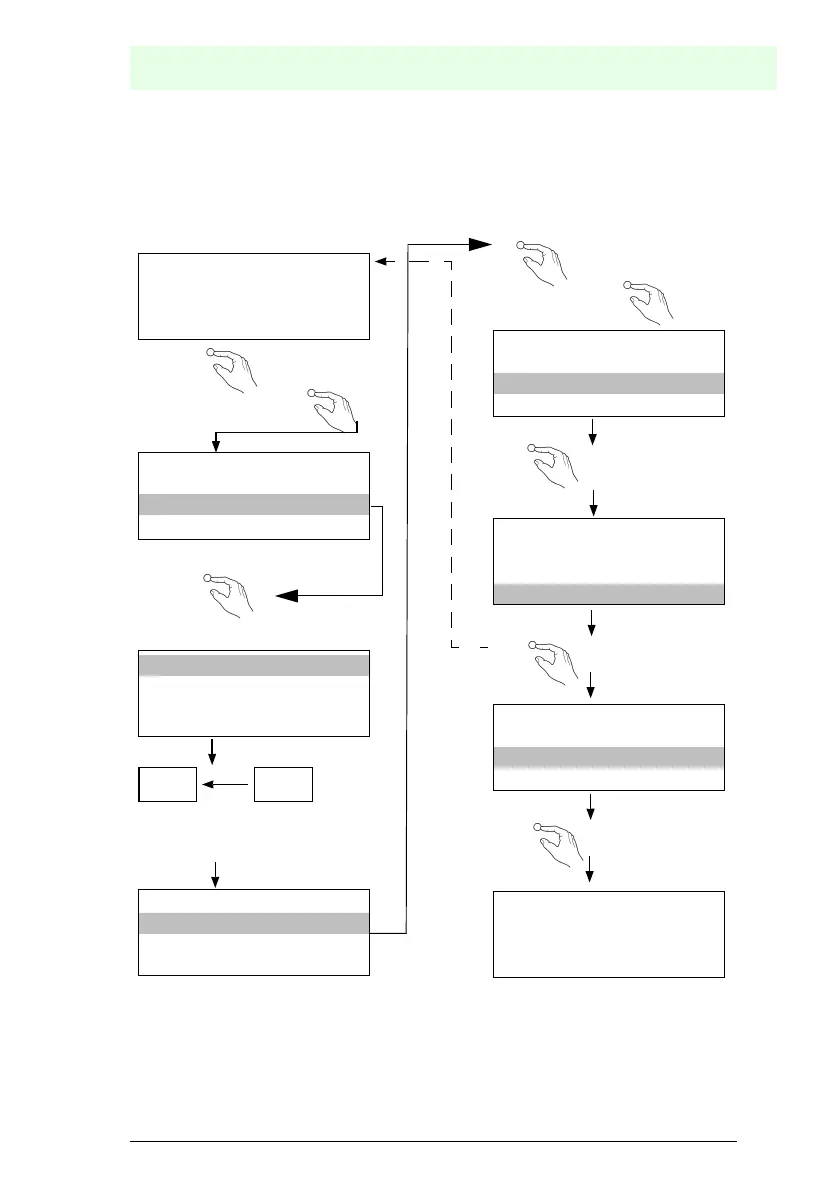

5.8.3.1 Assigning address 6 to slave currently at address 2

LCD

1. 41

SEARCHING SLAVE

ETHERNET

QUICK SETUP

SLAVE ADR TOOL

SLAVE TEST TOOL

LCD

SLAVE ADR TOOL

CONNECT NEW SLAVE

LCD

SLAVE ADR TOOL

OLD ADDRESS 2

NEW ADDRESS 3

PRG

LCD

SLAVE ADR TOOL

OLD ADDRESS 2

NEW ADDRESS 6

LCD

1. 6

UNKNOWN SLAVE

LCD

SLAVE ADR TOOL

OLD ADDRESS

NEW ADDRESS

PRG

LCD

SLAVE ADR TOOL

OLD ADDRESS 2

NEW ADDRESS 6

PRG

Master Slave

Modul anschließen/Connect

module/Raccordez module/

Collegare modulo/Conecte modulo

↓

3 x OK

↓

2 x ESC
