AS-Interface
Electrical connection

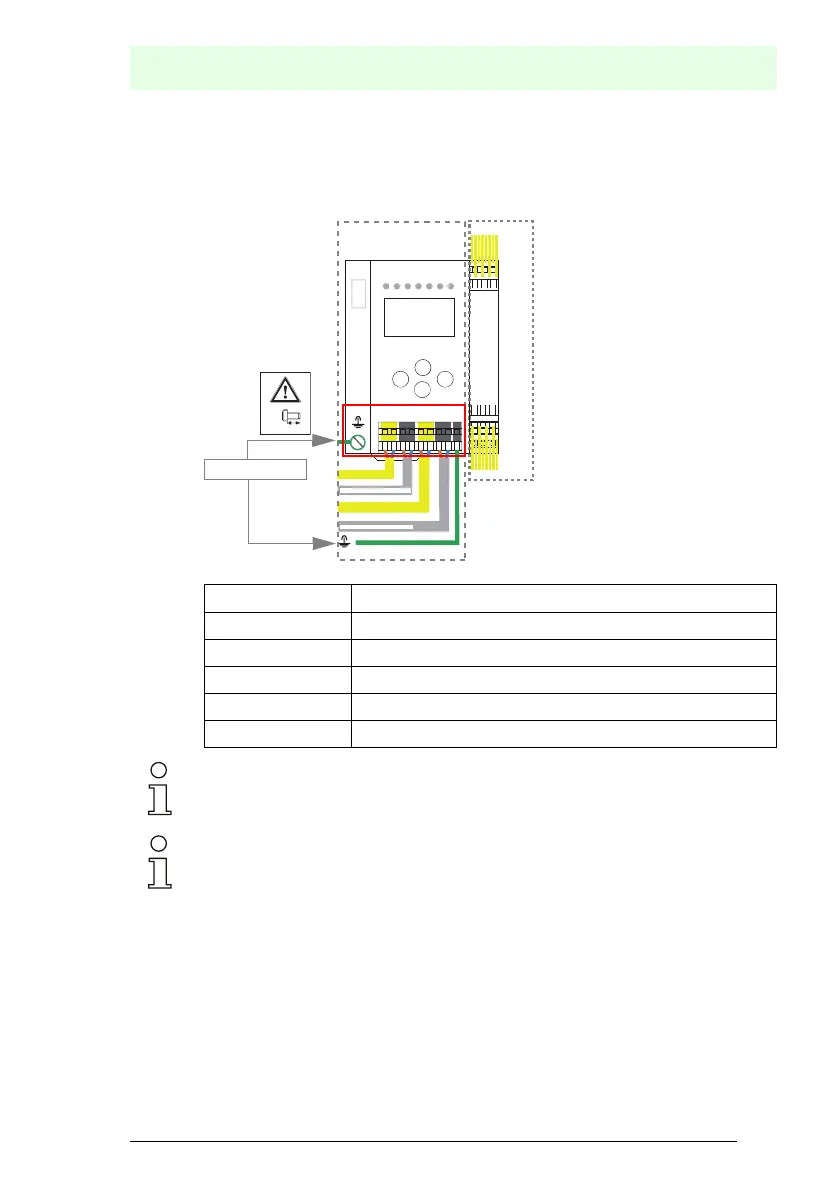

7.4.1 Electrical connection VBG-EN-K30-DMD-S16
+
-
+
-
+
-
+ASI 1–
+
Gateway Safety Monitor
+ASI 2–
ASI 1 +PWR– (max. 8A)
ASI 2 +PWR– (max. 8A)
M4
5 mm max!
Function ground
Terminal Signal / Description
+ASI 1– Connection to AS-i Circuit 1
+ASI 2– Connection to AS-i Circuit 2
ASI 1 +PWR– Supply voltage for AS-i Circuit 1 (max. 8 A)
ASI 2 +PWR– Supply voltage for AS-i Circuit 2 (max. 8 A)
FG Function ground
Information!
AS-i Circuits 1 and 2 are powered by separate power supplies.
Information!
For additional information, please refer to the section <AS-i and power supply terminal
assignments>.
