AS-i 3.0 EtherNet/IP Gateway with integrated Safety Monitor

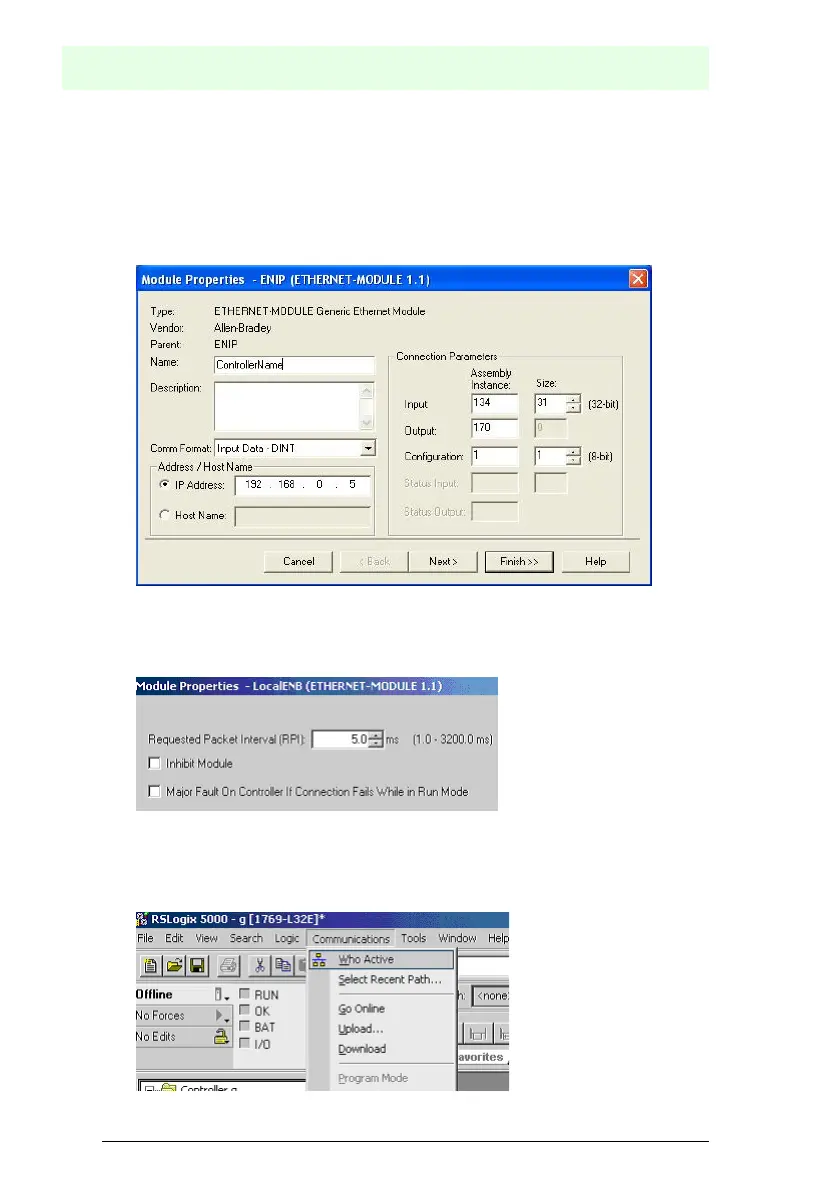

Appendix: the first commissioning with CompactLogix
Allocation of the data
32 bytes for digital data (A/B slaves)
24 bytes for analog data (slave address 29 .. 31)
36 bytes für command interface
Register here minimum "1"!
Click the button Next
Please enter in the data field Request Packet Interval (RPI) a time (≥ 5ms).
Please click on the Finish button.
Now you can begin programming.
For the first downloading of the software the transmission path must be indi-
cated. Select for this purpose from the menu Communications the entry:
Who Active.
