TOP ASSEMBLY : VL440 SPOT LUMINAIRE
02.9687.0010 0 87
3

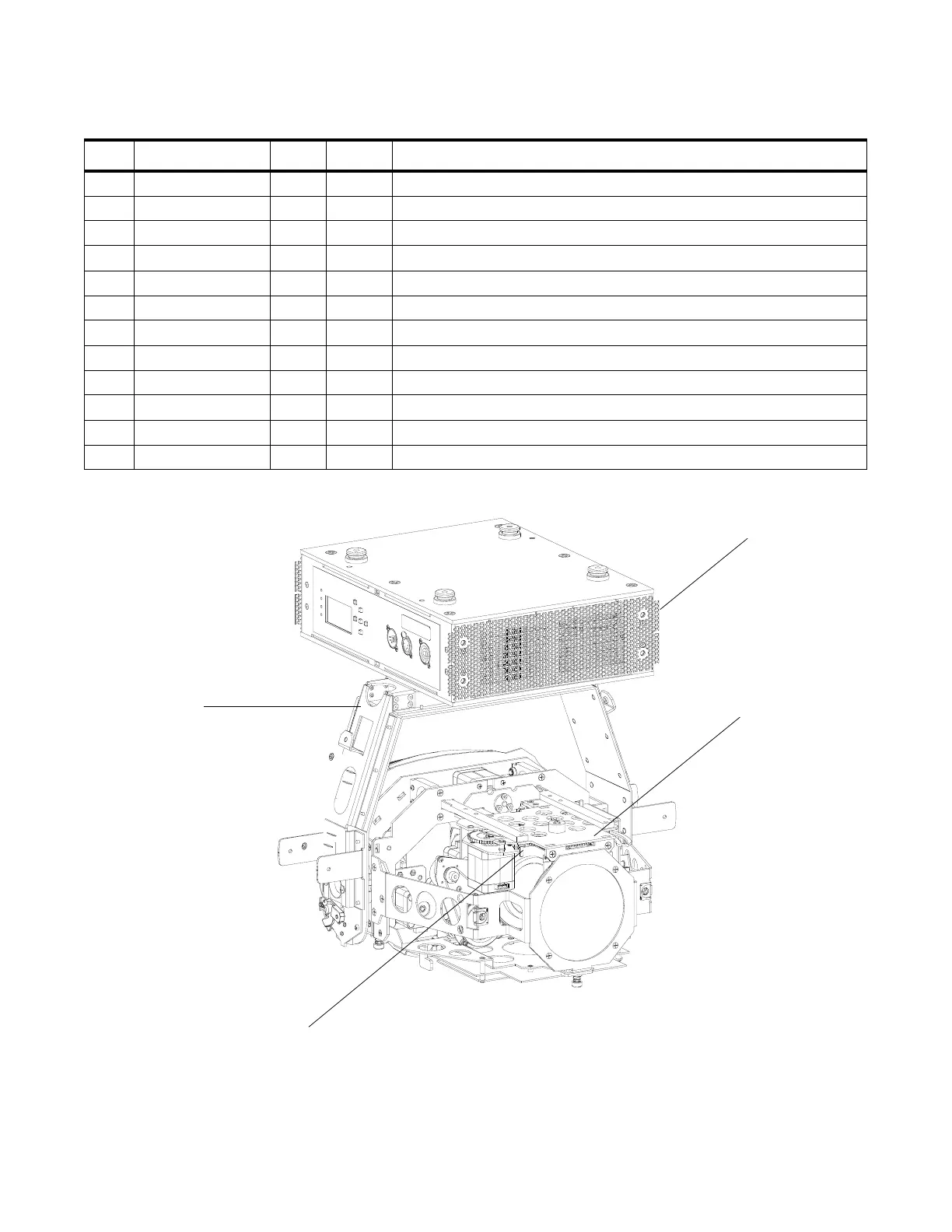

Figure 3-8: VL440 Spot Luminaire
23 53.6627.0001 8 EA SCREW, 10-32 X 5/8" PPB
24 55.2233.2001 2 EA DZUS RAPIER MINI CLIP ON RETAINER
25 55.3301.0004 2 EA WASHER, #4 FLAT SS
26 68.9665.0350 1 EA IGNITOR, 350W / 400W
27 69.9687.0400 1 EA ASSY, BALLAST 400W / 150W LVS
28 10.9687.1614 1 EA BLOCKING PLATE, FAN LAMP COOLING
29 10.9687.1615 1 EA AIR DIVERTER, SINGLE BLOWER, LAMP COOLING
30 40.9687.0001 1 EA BLOWER, 75 X 30, 85C, HI-FLOW
31 53.6581.0002 2 EA SCREW, 4-40 X 1-1/2" PPZ
32 53.6597.0001 2 EA SCREW, 4-40 X 3/16" PPZ
33 55.6546.0004 8 EA WASHER, TEFLON, 0.201" ID X 0.433" OD
34 55.6568.0115 2 EA SPRING, CPRSN, 0.300" OD, 1.25" LG, 0.022" WD MW
No. Item Qty. UM. Description
10
21 (x4)
9
6
