Tilt Sensor Removal
WARNING: Ensure that power is completely removed (disconnected) from luminaire before
attempting any work. Wear protection on hands (soft cotton gloves) when handling glass.
To remove tilt sensor:
Step 1. Remove power from luminaire and allow unit to completely cool.
Step 2. As shown in Figure 2-17, remove both yoke covers by removing one 8-32 x 3/8" PPB SEMS
screw per side.

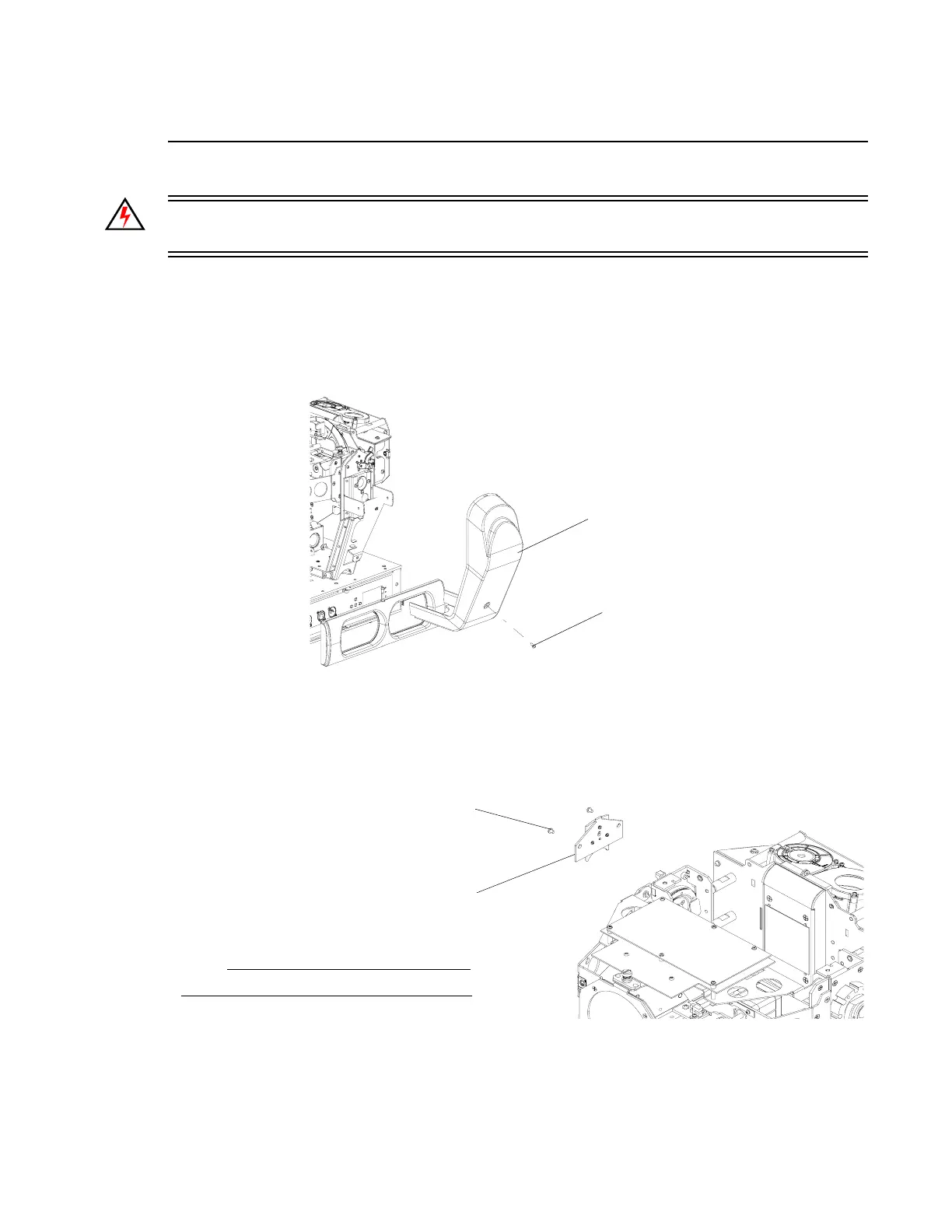

Figure 2-17: Yoke Arm Cover Removal
Step 3. Remove Yoke Filler by removing two 6-32 x 3/16" PPB screws and one 8-32 x 3/8" PPB
SEMS screw mounting tilt stabilizer to yoke filler.
Figure 2-18: Yoke Filler Removal
Yoke Arm Cover*
8-32 x 3/8" PPB
SEMS Screw*
*One per side
6-32 x 3/16" PPB Screw (x2)
Yoke Filler
NOTE:
Components removed and exploded for clarity.
To Next Page
