MAINTENANCE PROCEDURES : TILT MOTOR ASSEMBLY / TILT ENCODER / TILT BELT REMOVAL
02.9687.0010 0 35
2
To remove tilt encoder
Step 1. Remove tilt motor assembly following procedure in “Tilt Motor Assembly / Tilt Encoder /
Tilt Belt Removal” on page 34.
Step 2. Remove two 4-40 x 1/4" PPG SEMS screws and associated nylon spacers and remove Tilt
Encoder PCB.
Step 3. Reassemble following steps in reverse order.
To remove tilt belt:
Step 1. Remove tilt motor assembly following procedure in “Tilt Motor Assembly / Tilt Encoder /
Tilt Belt Removal” on page 34.
Step 2. Disconnect all wiring coming through tilt belt side tilt tube, from inside head assembly.
Step 3. Cut any cable ties required
Step 4. Carefully, pull wiring through tilt belt.
Step 5. Remove tilt belt.
Step 6. Reassemble following steps in reverse order.

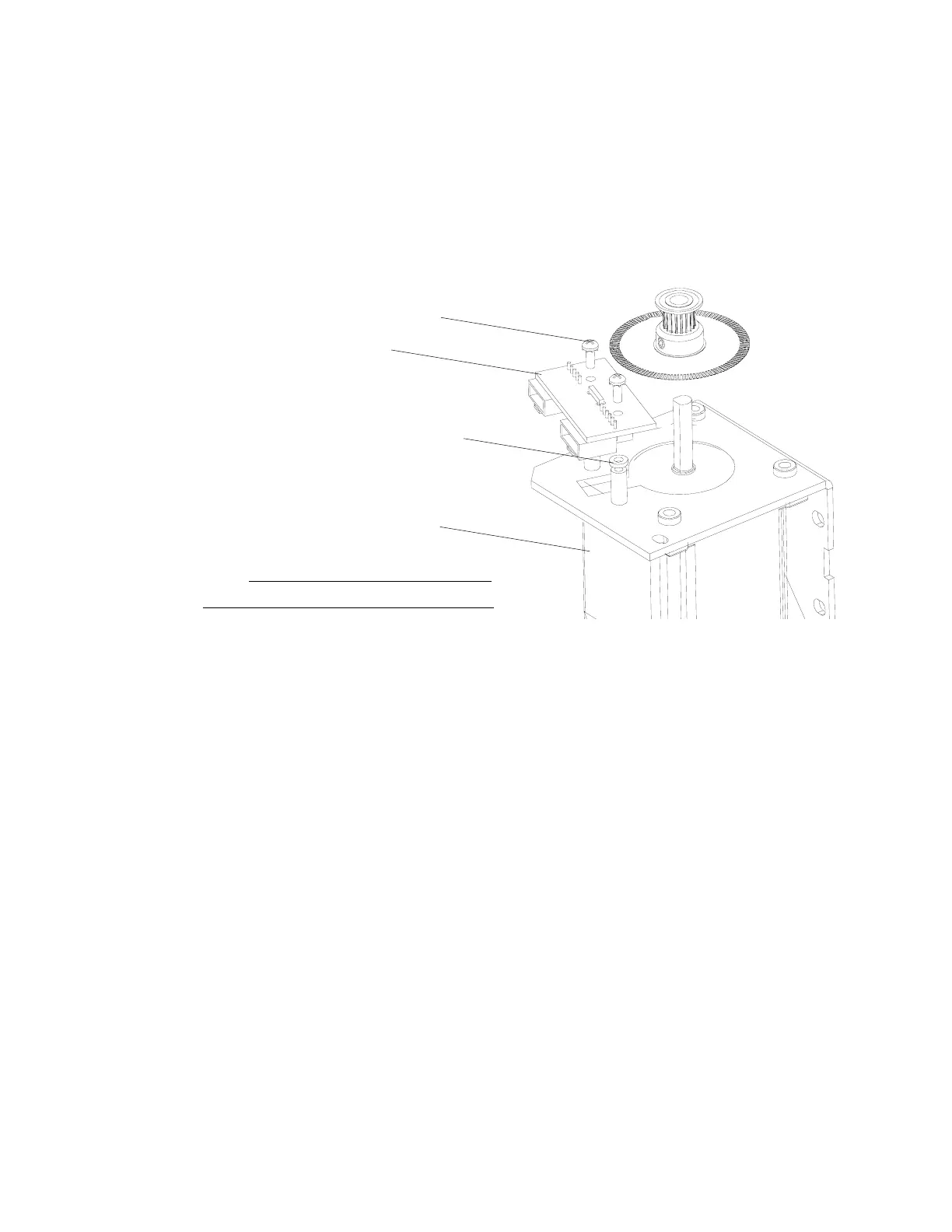

NOTE:
Components removed and exploded for clarity.
Tilt Motor
Assembly
Tilt Encoder PCB
Nylon Spacer (x2)
4-40 x 1/4" PPB
SEMS Screw (x2)
To Next Page
