VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
32 02.9687.0010 0
Edge Motor Assembly Removal
WARNING: Ensure that power is completely removed (disconnected) from luminaire before
attempting any work. Wear protection on hands (soft cotton gloves) when handling glass.
To remove edge motor assembly:
Step 1. Remove power from luminaire and allow unit to completely cool.
Step 2. Remove front and rear cover assemblies (see “Front Cover Assembly Removal” on page 19
and “Rear Cover Assembly Removal” on page 20).
Step 3. Remove Gobo Module Assembly as described in “Gobo Module Assembly Removal” on
page 23.
Step 4. Remove CYMD Module Assembly as described in “CYMD Module Assembly Removal”
on page 24.
Step 5. Remove Zoom Module Assembly as described in “Zoom Module Assembly Removal” on
page 25.
Step 6. Disconnect H3 fan and power from edge motor assembly.
Step 7. Remove four 4-40 x 1/4" PPB SEMS screws, as shown in Figure 2-14, securing edge motor
assembly.

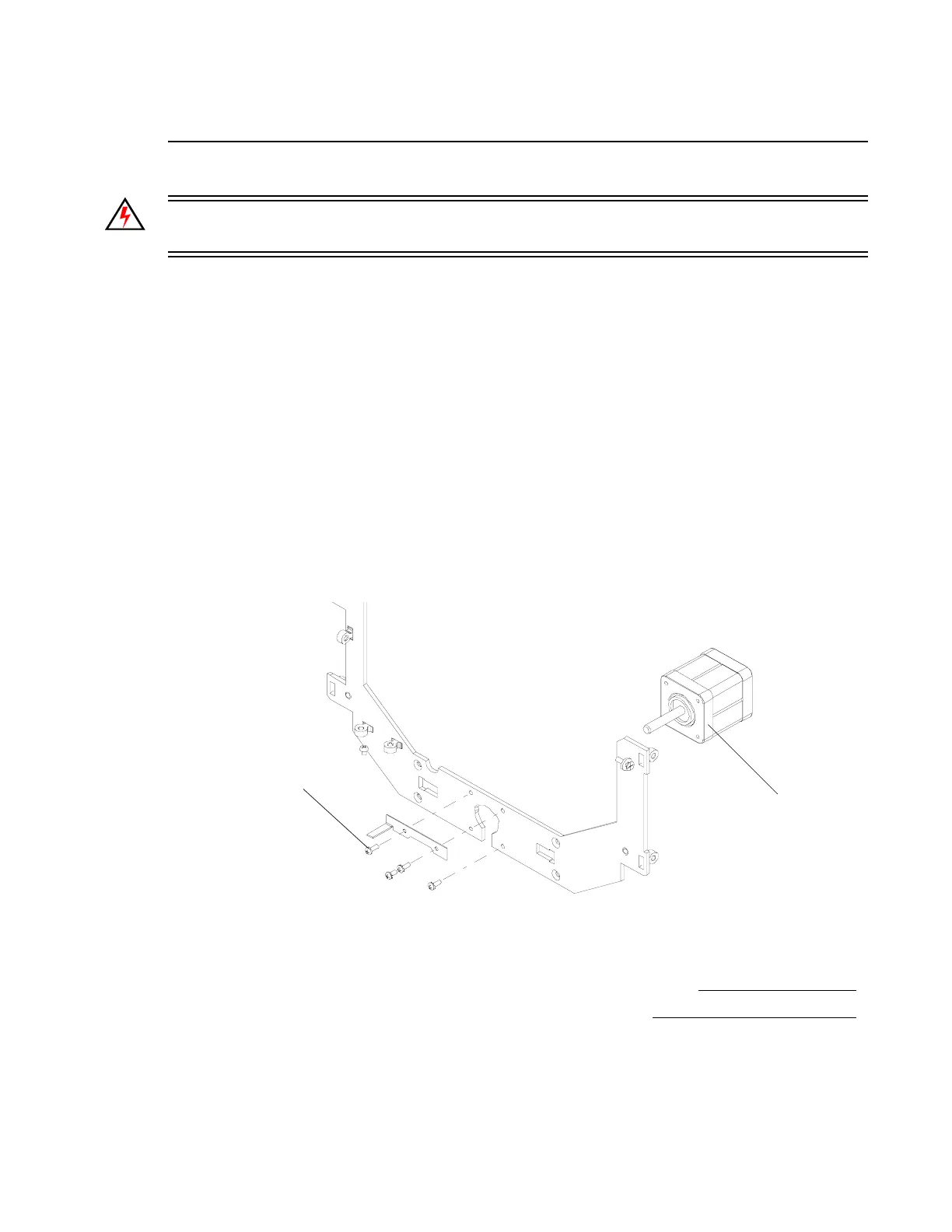

Figure 2-14: Edge Motor Assembly Removal
Step 8. Rotate motor shaft from edge carrier and remove motor.
NOTE:
Components removed for clarity.
4-40 x 1/4" PPB
SEMS Screw (x4)
Edge Motor
Assembly
