Philips Vari-Lite VL440 - Left Tilt Bearing Assembly

VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
108 02.9687.0010 0
Left Tilt Bearing Assembly
21.9687.0632 Rev A
Refer to Figure 3-24.

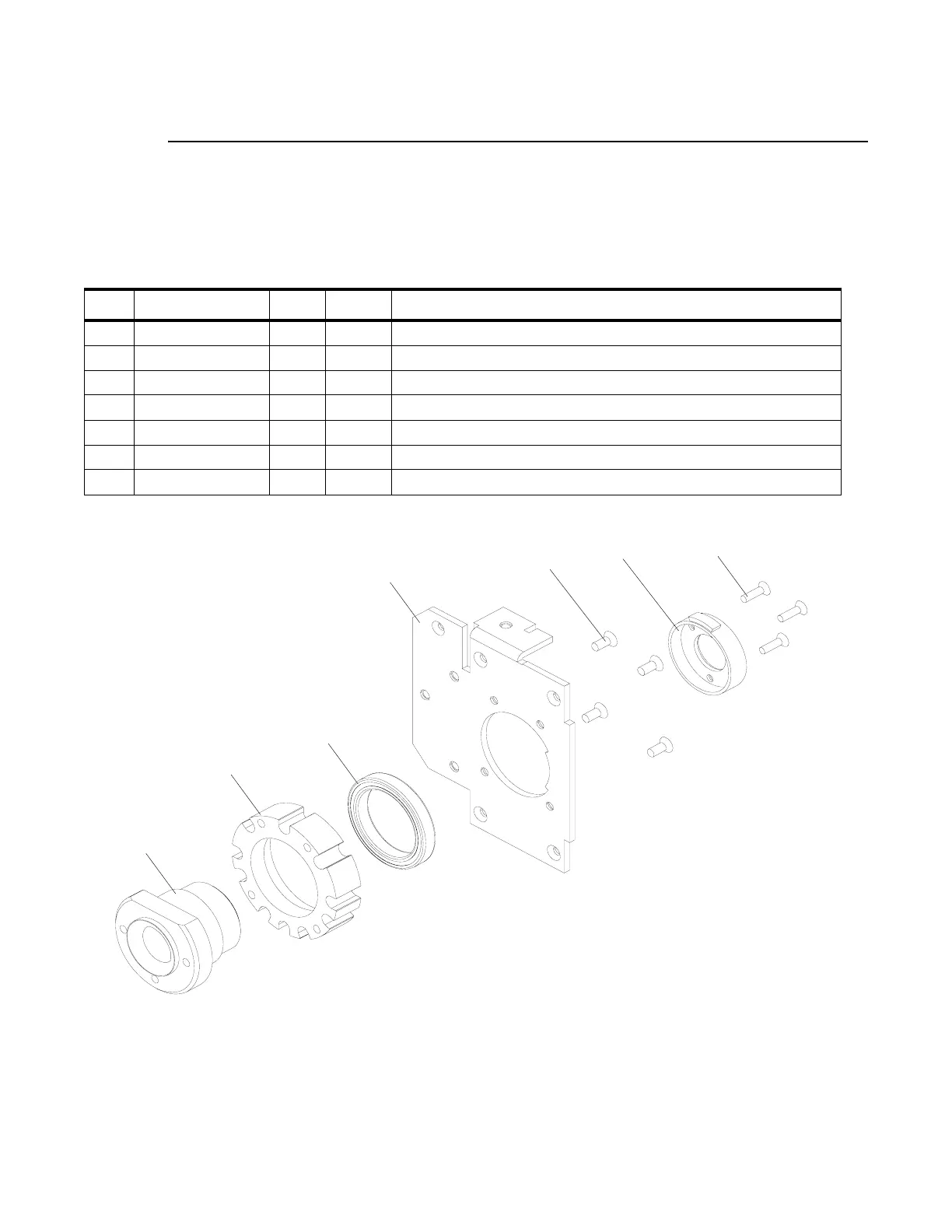

Figure 3-24: Left Tilt Bearing Assembly
No. Item Qty. UM. Description
1 10.9687.0656 1 EA PLATE, BEARING MOUNT, RIGHT
2 10.9687.0659 1 EA RETAINER, TILT BEARING
3 10.9687.0660 1 EA TILT STOP
4 10.9687.0662 1 EA TILT TUBE
5 53.6545.0003 4 EA SCREW, 8-32 X 3/8" PFZ
6 53.6609.0500 3 EA SCREW, 6-32 X 1/2" PFZ
7 54.9687.0250 1 EA BEARING, 68072RS
5 (x4)
7
3
6 (x3)
1
4
2
