VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
42 02.9687.0010 0
Lamp Socket Removal
WARNING: Ensure that power is completely removed (disconnected) from luminaire before
attempting any work. Wear protection on hands (soft cotton gloves) when handling glass.
To remove lamp socket assembly:
Step 1. Remove power from luminaire and allow unit to completely cool.
Step 2. Remove front and rear cover assemblies (see “Front Cover Assembly Removal” on page 19
and “Rear Cover Assembly Removal” on page 20).
Step 3. Remove Gobo Module Assembly as described in “Gobo Module Assembly Removal” on
page 23.
Step 4. Remove CYMD Module Assembly as described in “CYMD Module Assembly Removal”
on page 24.
Step 5. As shown in Figure 2-26, remove tilt lock side yoke cover by removing one 8-32 x 3/8" PPB
SEMS screw.

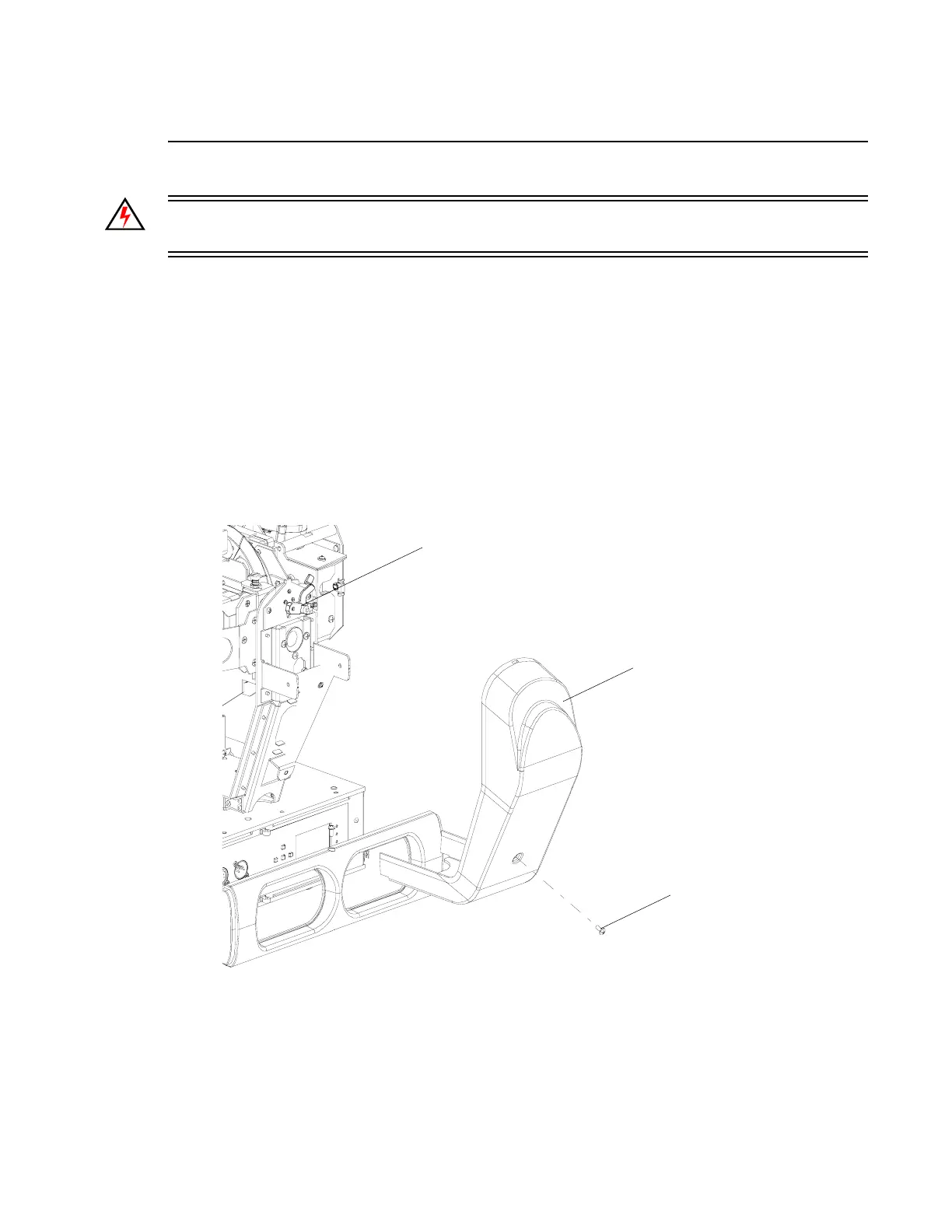

Figure 2-26: Tilt Side Yoke Arm Cover Removal
Step 6. Disconnect lamp wires from output of ignitor and pass through tilt tube grommets to back
lamp house.
Yoke Arm Cover
8-32 x 3/8" PPB
SEMS Screw
Tilt Lock Assembly
