MAINTENANCE PROCEDURES : FRONT COVER ASSEMBLY REMOVAL
02.9687.0010 0 19
2
Maintenance Procedures
Front Cover Assembly Removal
WARNING: Ensure that power is completely removed (disconnected) from luminaire before
attempting any work.
To remove front cover assembly:
Step 1. Remove power from luminaire and allow unit to completely cool.
Step 2. As illustrated in Figure 2-1, remove front head cover by loosening two quarter-turn Dzus
fasteners.
Note: The front cover is secured by a safety tether.

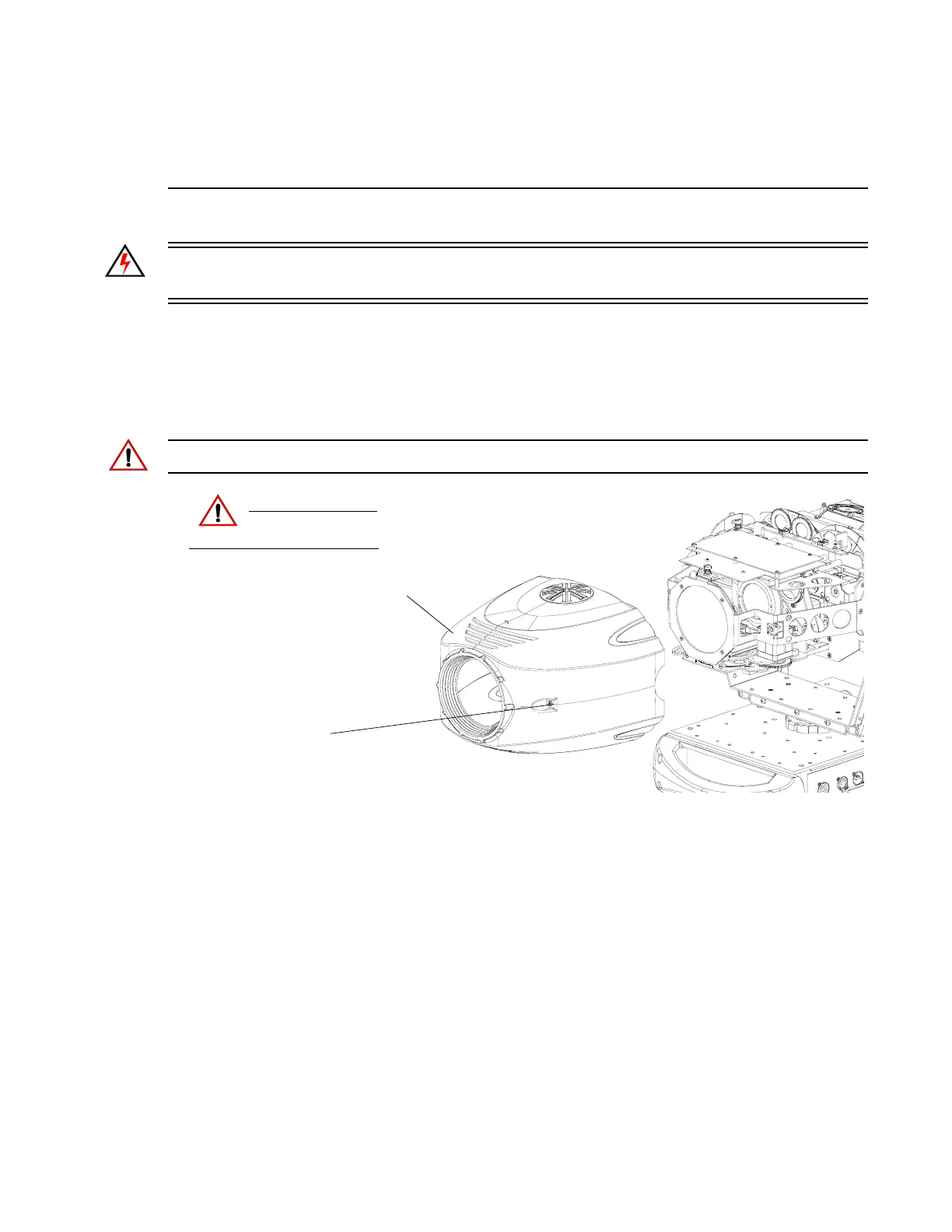

Figure 2-1: VL440 / VL770 / VL880 Front Head Cover Removal
Step 3. Unclip safety tether at cover.
Step 4. Reinstall by performing steps in reverse order.
CAUTION:
Remove power and
allow fixture to cool.
Quart-Turn Dzus
Fasteners (x2)
Front Head Cover
To Next Page
