VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
20 02.9687.0010 0
Rear Cover Assembly Removal
WARNING: Ensure that power is completely removed (disconnected) from luminaire before
attempting any work.
To remove rear cover assembly:
Step 1. Remove power from luminaire and allow unit to completely cool.
Step 2. As illustrated in Figure 2-1, remove rear head cover by loosening two quarter-turn Dzus
fasteners.
Note: The rear cover is secured by a safety tether.

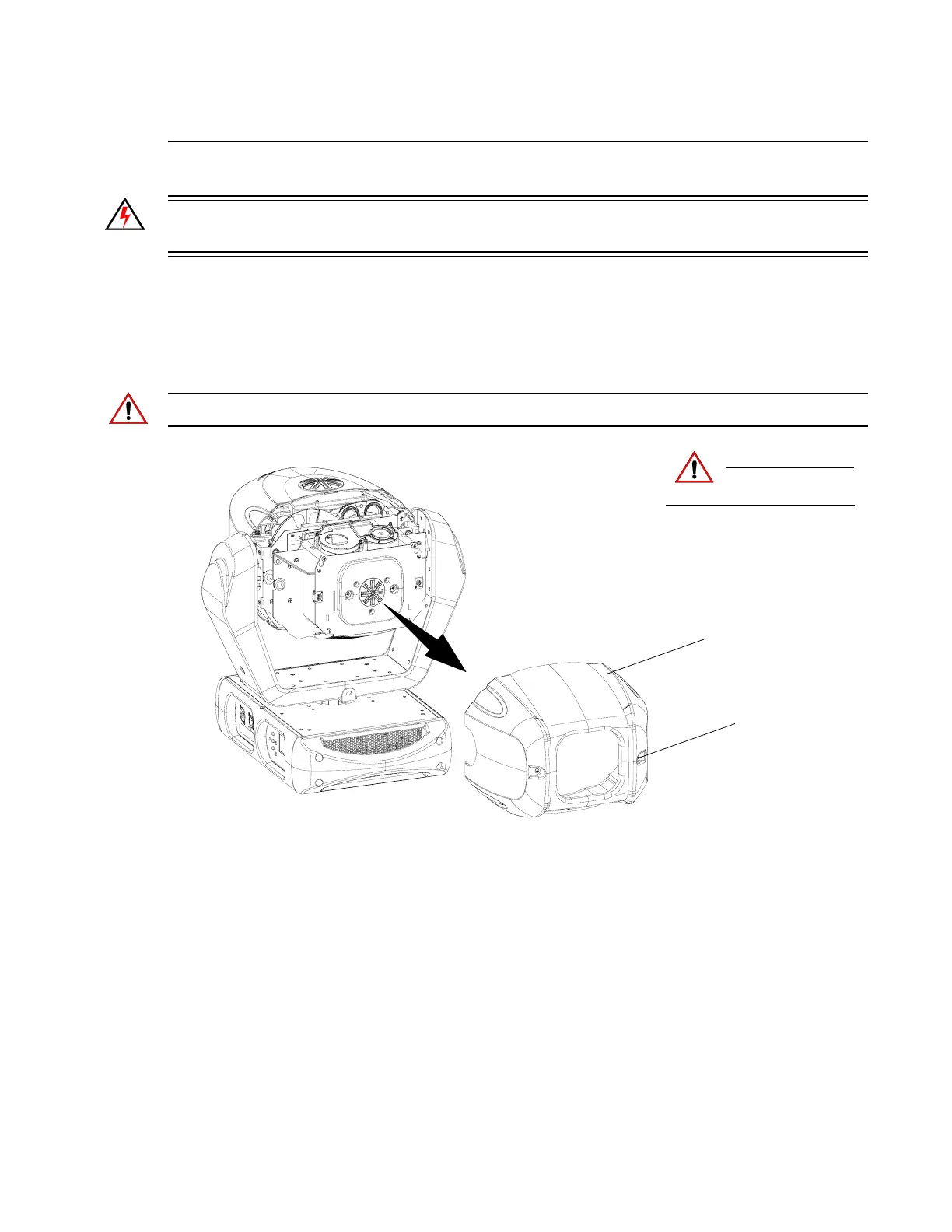

Figure 2-2: VL440 / VL770 / VL880 Rear Head Cover Removal
Step 3. Unclip safety tether at cover.
Step 4. Reinstall by performing steps in reverse order.
CAUTION:
Remove power and
allow fixture to cool.
Quart-Turn Dzus
Fasteners (x2)
Rear Head Cover
