VL440 / VL770 / VL880 Spot Luminaires Components

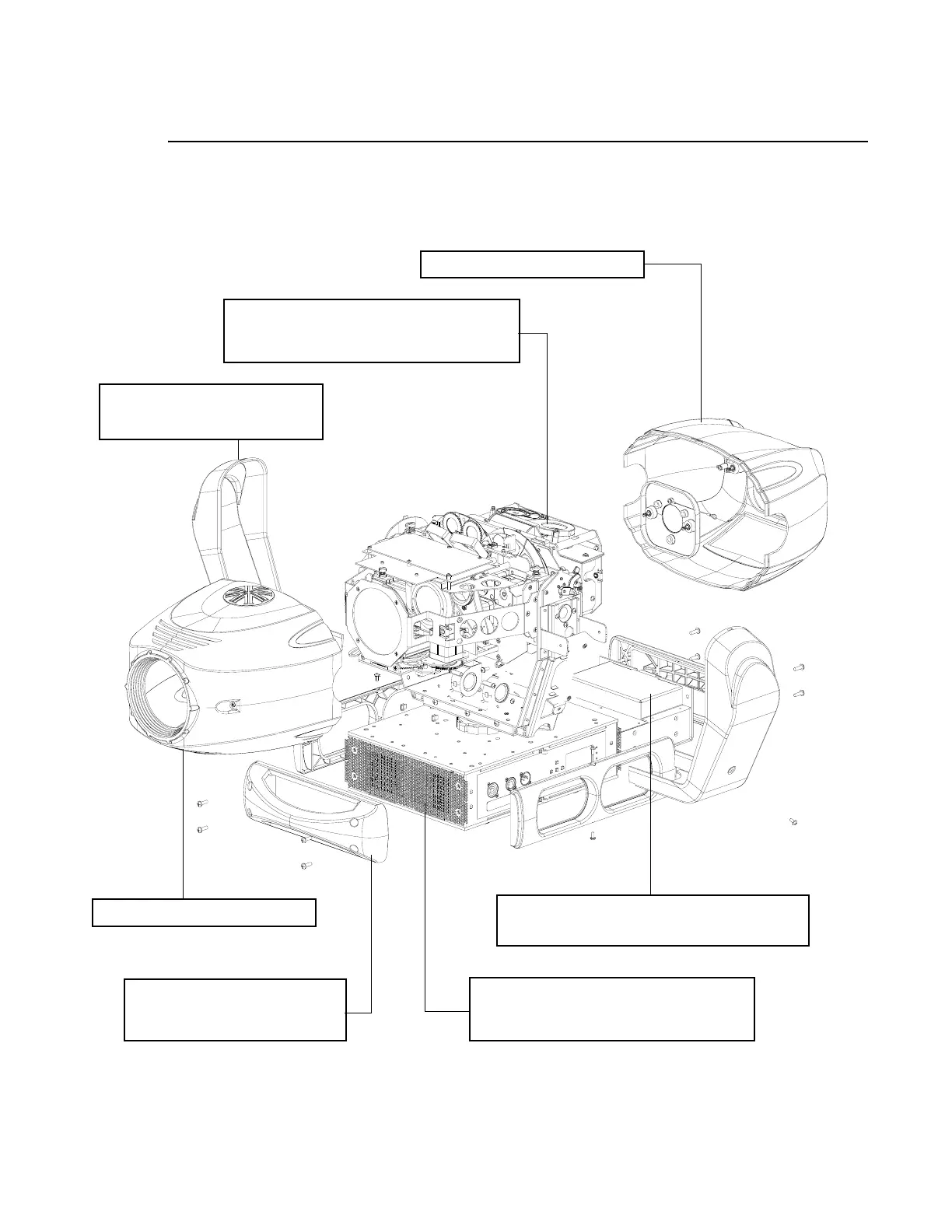

The following illustration shows the major sub-assemblies and components of the luminaire.
Enclosure Covers
One on each end of enclosure
Luminaire Rear Head Cover
assembly, two with handles.
Enclosure Assembly
See “VL440 / VL770 / VL880 Spot Luminaires
Enclosure Components” on page 10.
Head Assembly
See “VL440 / VL770 / VL880 Spot Luminaires
Head Components” on page 9.
Yoke Arm Covers
Two covers, one on each side
of yoke assembly.
Luminaire Front Head Cover
Ballast and Low Voltage Supply Assembly
Supplies power for lamp and luminaire operation.
