Philips Vari-Lite VL440 - Rear Carrier Assembly

HEAD ASSEMBLY : REAR CARRIER ASSEMBLY
02.9687.0010 0 137
3
Rear Carrier Assembly
21.9687.0111 Rev B
Refer to Figure 3-43.

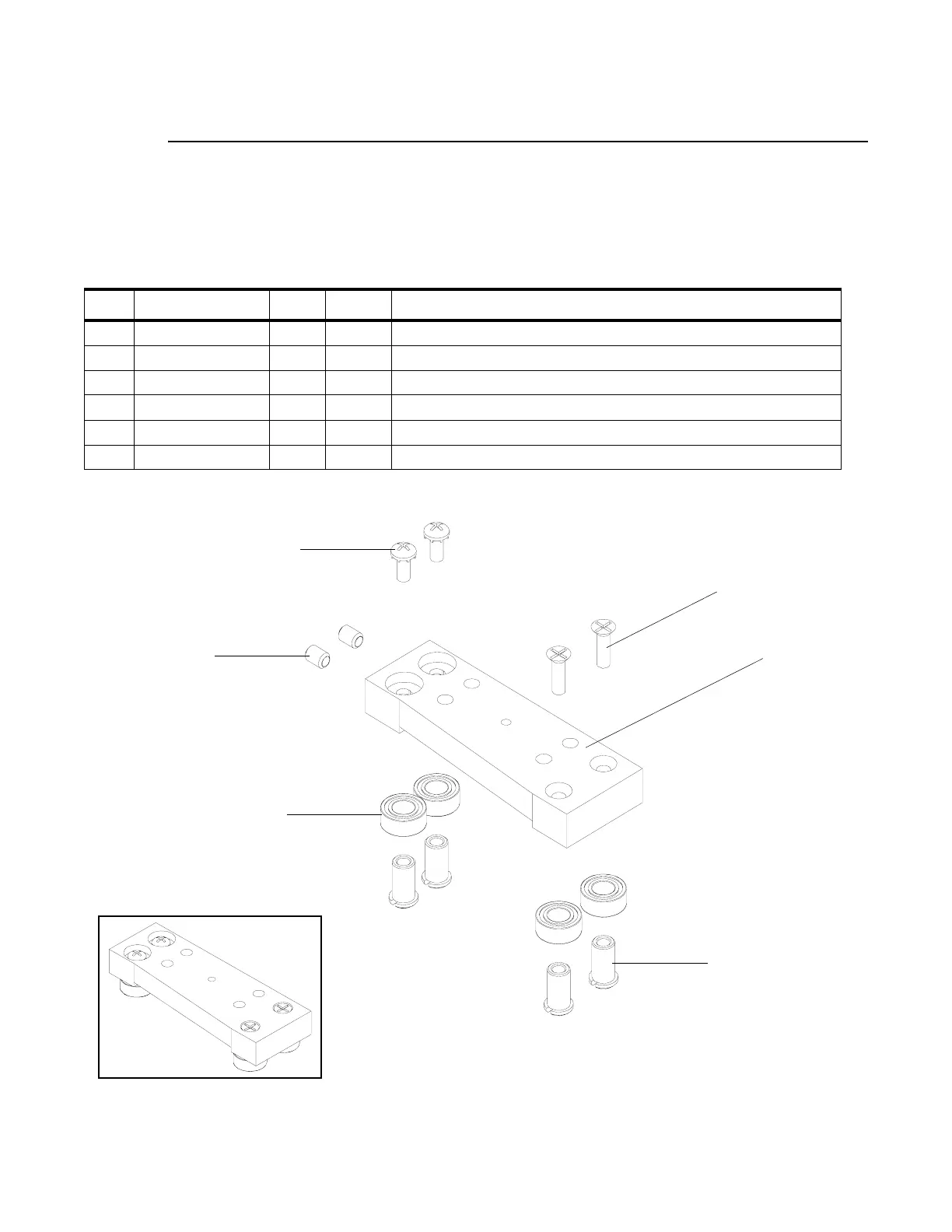

Figure 3-43: Rear Carrier Assembly
No. Item Qty. UM. Description
1 10.9687.0146 1 EA CARRIAGE, REAR
2 10.9687.1670 4 EA SHAFT, FOCUS BEARING
3 53.6558.1188 2 EA SCREW, SET 6-40 X 0.188"
4 53.6599.0001 2 EA SCREW, 4-40 X 3/8" PFZ
5 53.6682.0002 2 EA SCREW, 4-40 X 1/4" PPZ SEMS
6 54.9687.0253 4 EA BEARING, MR105ZZ
3 (x2) 1
4 (x2)
6 (x4)
2 (x4)
5 (x2)
