VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
10 02.9687.0010 0
VL440 / VL770 / VL880 Spot Luminaires Enclosure
Components

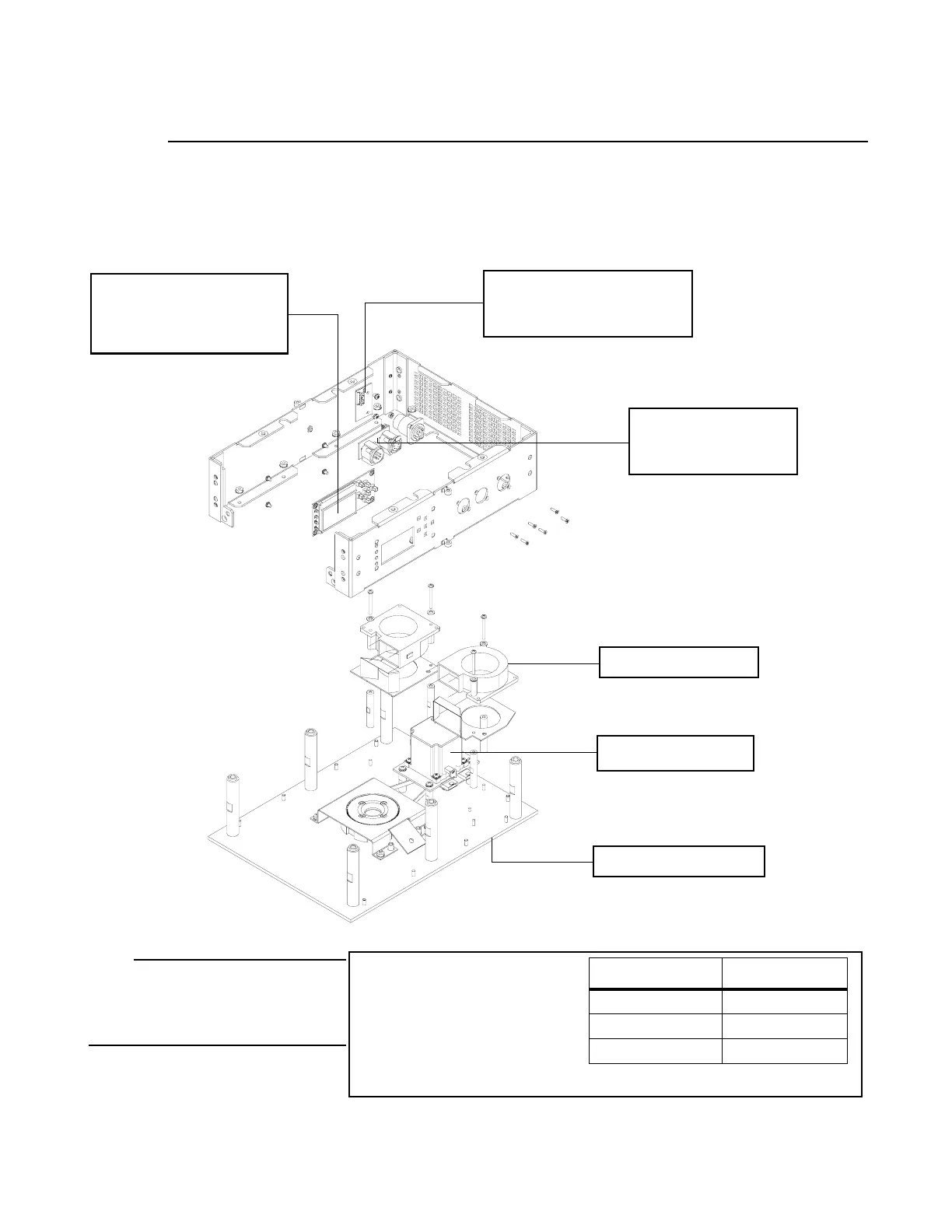

The following illustration shows the major sub-assemblies which are located in the luminaire
enclosure assembly.
Pan Motor Assembly
Fan Assemblies
Wire** Connection
Green/Yellow AC Ground
Blue AC Neutral
Brown AC Line
** International (Harmonized) Standard
LCD Display Assembly
For addressing, accessing
menu options and settings. See
page 7 for details.
Enclosure Cover Plate
*AC Input
Requires standard AC power
distribution from 100-240 VAC, 50/
60 Hz., current depends on the AC
supply voltage. See user’s manual
for more information on current
draw
Note:
Other assemblies not shown for clarity.
Power supply (not shown) is part of the
generic luminaire assembly but is housed
in the enclosure assembly.
Input Panel Assembly
Contains DMX Input
PCB and AC Input*
Wireless DMX Interconnect
Allows connection of optional
wireless DMX module
To Next Page
