Philips Vari-Lite VL440 - Linear Roller Assembly

HEAD ASSEMBLY : LINEAR ROLLER ASSEMBLY
02.9687.0010 0 111
3
Linear Roller Assembly
21.9687.0634 Rev B
Refer to Figure 3-26.

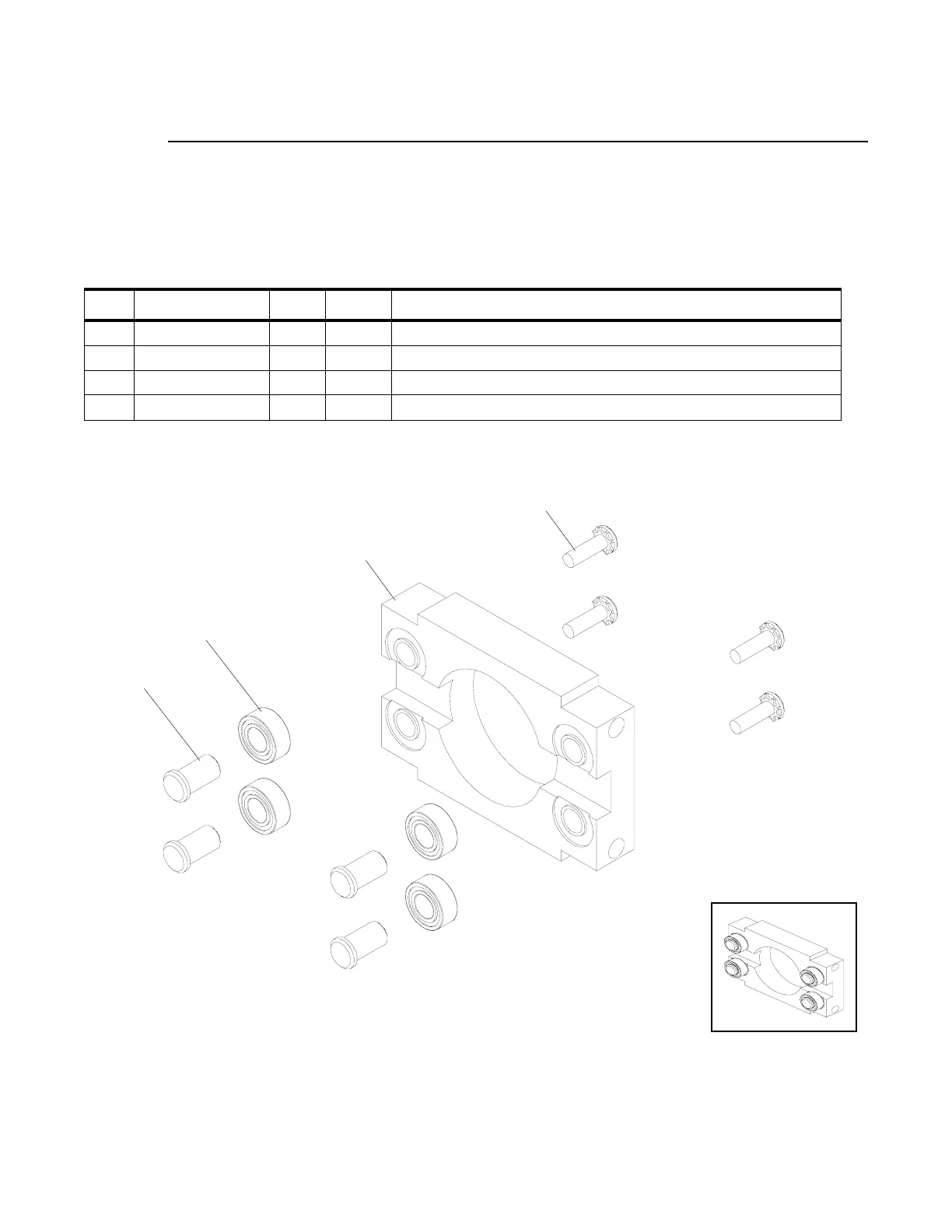

Figure 3-26: Linear Roller Assembly
No. Item Qty. UM. Description
1 10.9687.0670 4 EA SHAFT, FOCUS BEARING
2 10.9687.1665 1 EA BLOCK, LINEAR ROLLER
3 53.65200375 4 EA SCREW, 4-40 X 3/8" PPZ SEMS
4 54.9687.0253 4 EA BEARING, MR105ZZ
1 (x4)
3 (x4)
2
4 (x4)
