MAINTENANCE PROCEDURES : UV / IR FILTER ASSEMBLY REMOVAL
02.9687.0010 0 31
2
UV / IR Filter Assembly Removal
WARNING: Ensure that power is completely removed (disconnected) from luminaire before
attempting any work. Wear protection on hands (soft cotton gloves) when handling glass.
To remove UV/IR filter assembly:
Step 1. Remove power from luminaire and allow unit to completely cool.
Step 2. Remove front and rear cover assemblies (see “Front Cover Assembly Removal” on page 19
and “Rear Cover Assembly Removal” on page 20).
Step 3. Remove Gobo Module Assembly as described in “Gobo Module Assembly Removal” on
page 23.
Step 4. Remove CYMD Module Assembly as described in “CYMD Module Assembly Removal”
on page 24.
Step 5. As shown in Figure 2-13, at UV/IR Filter Assembly, remove four 8-32 x 3/4" PFB screws
and remove UV/IR Filter Assembly. Note air diverter placement.

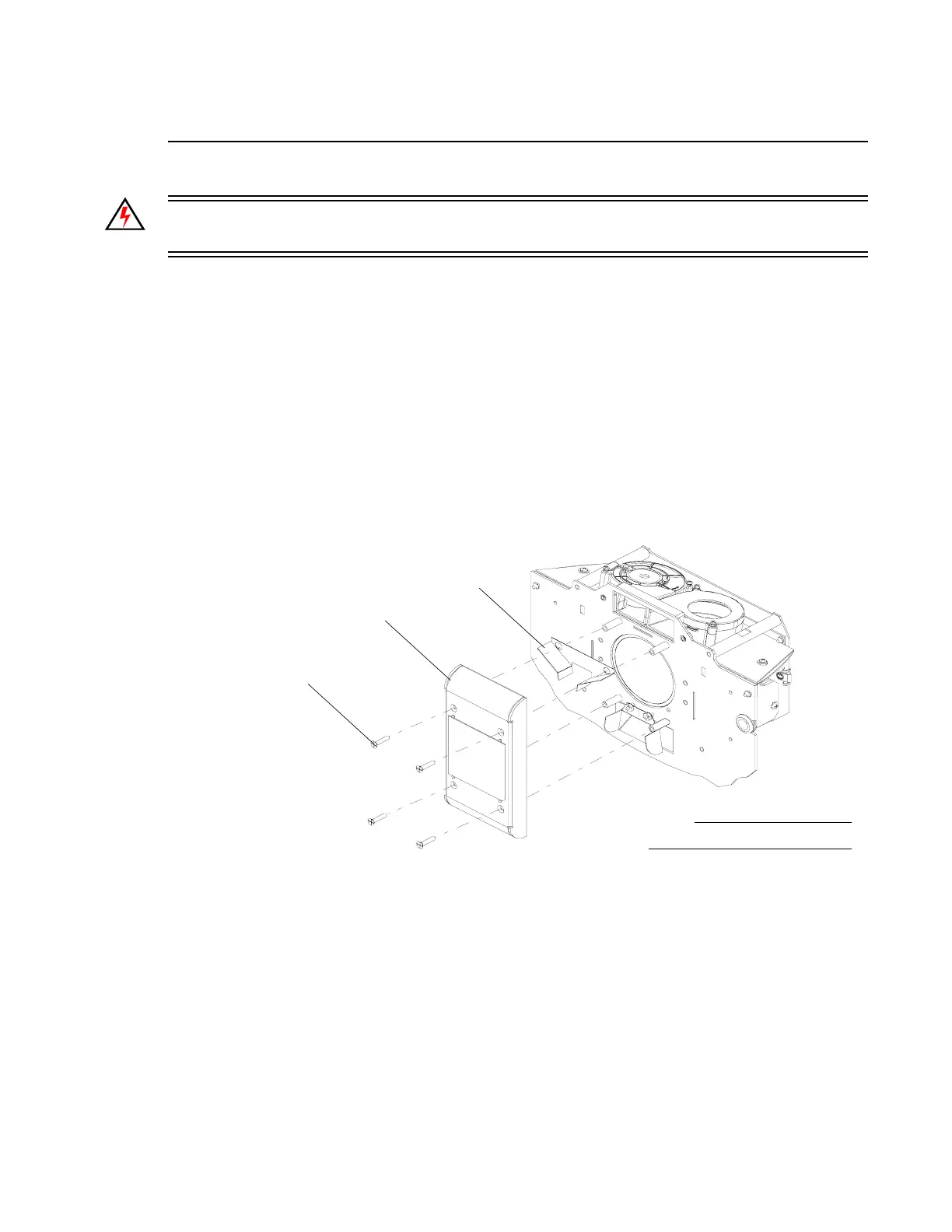

Figure 2-13: UV / IR Filter Assembly Removal
Step 6. Reinstall by performing steps in reverse.
Air Diverter
UV / IR Filter Assembly
NOTE:
Components removed for clarity.
8-32 x 3/4" PFB
Screw (x4)
