Philips Vari-Lite VL440 - Front Head Cover Assembly

VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
98 02.9687.0010 0
Front Head Cover Assembly
21.9687.0620 Rev C
Refer to Figure 3-17

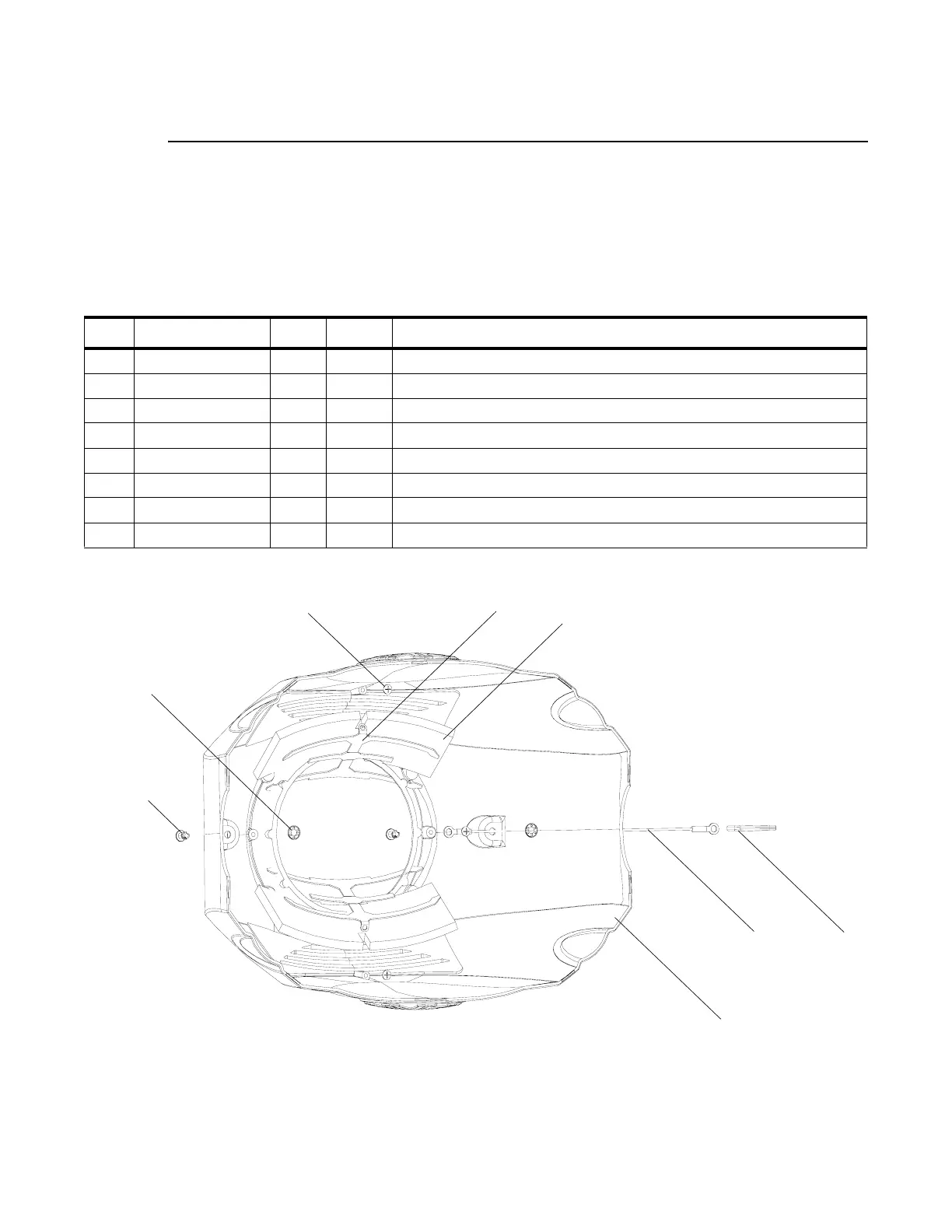

Figure 3-17: Front Head Cover Assembly
No. Item Qty. UM. Description
1 07.5049.0001 1 EA LANYARD, NYLON, 8-INCH LONG
2 10.9687.0615 1 EA FILTER FOAM, HEAD COVER, FRONT
3 10.9687.0620 1 EA HEAD COVER, FRONT
4 10.9687.2653 1 EA RETAINER, FILTER FOAM, HEAD COVER
5 53.5655.0250 3 EA SCREW, #6 X 1/4" PPZ PLASTIC
6 55.2011.0003 1 EA SNAP, SPRING 3/16" EYE DIA
7 55.2233.2003 2 EA DZUS RAPIER 1/4-TURN STUD RETAINER, 5 MM
8 55.2233.2005 2 EA DZUS RAPIER 1/4-TURN STUD, 5 MM, 12 MM LG
1
8 (x2)
6
7 (x2)
5 (x3)
3
4
2
