Philips Vari-Lite VL440 - Pulley Pinion Assembly

HEAD ASSEMBLY : PULLEY PINION ASSEMBLY
02.9687.0010 0 117
3
Pulley Pinion Assembly
21.9687.0655 Rev. A
Refer to Figure 3-29.

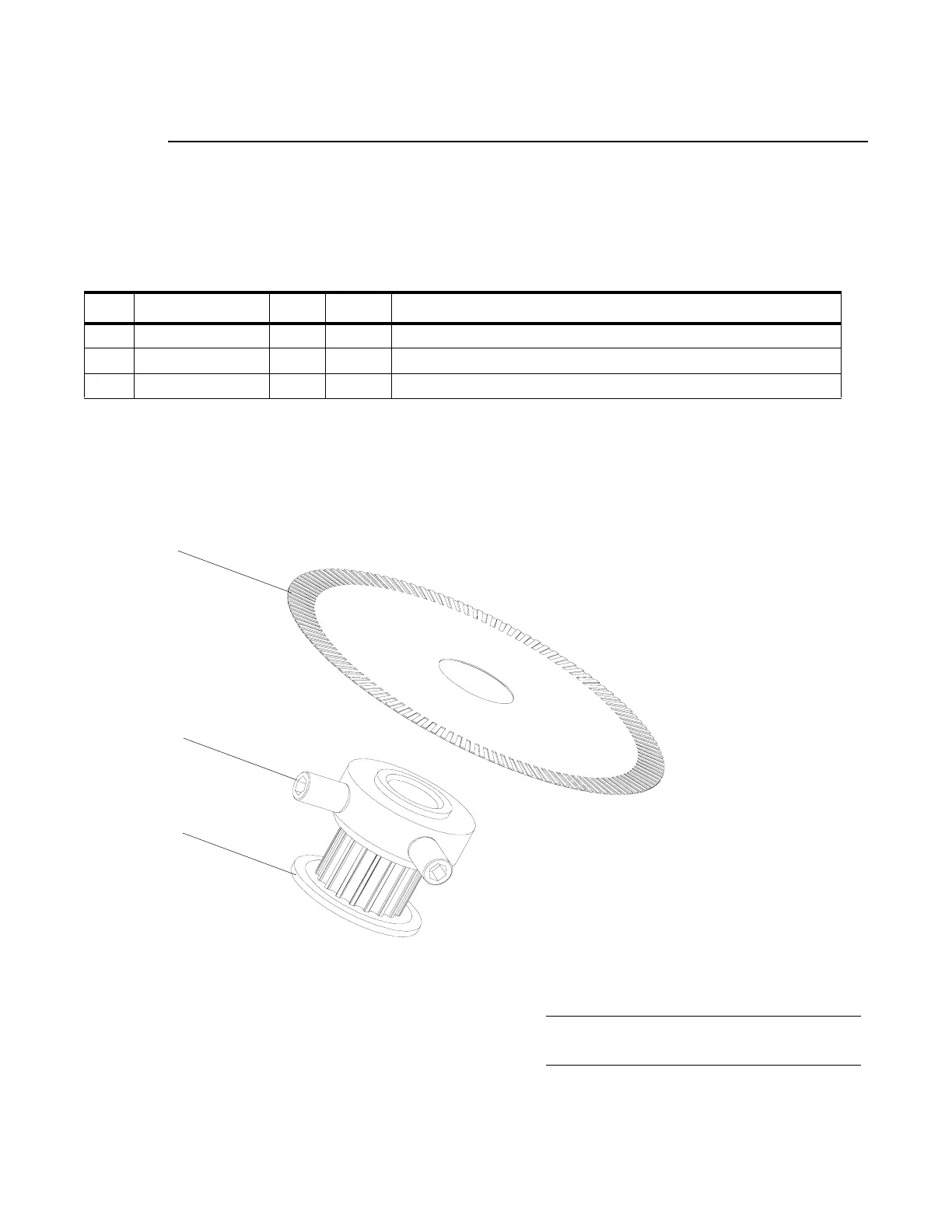

Figure 3-29: Pulley Pinion Assembly
No. Item Qty. UM. Description
1 10.9663.8820 1 EA CODE WHEEL, 120 COUNT
2 10.9687.1655 1 EA TIMING PULLEY, 18 GROVE, GT2, 6 MM BELT
3 53.5559.0250 2 EA SCREW, SET 6-40 X 0.25" CONE POINT
1*
3 (x2)
2
NOTE: *On item 1, remove backing over adhesive
and stick to item 2.
