Philips Vari-Lite VL440 - Zoom Linear Slide Assembly

HEAD ASSEMBLY : ZOOM LINEAR SLIDE ASSEMBLY
02.9687.0010 0 135
3
Zoom Linear Slide Assembly
21.9687.0180 Rev A
Refer to Figure 3-41.

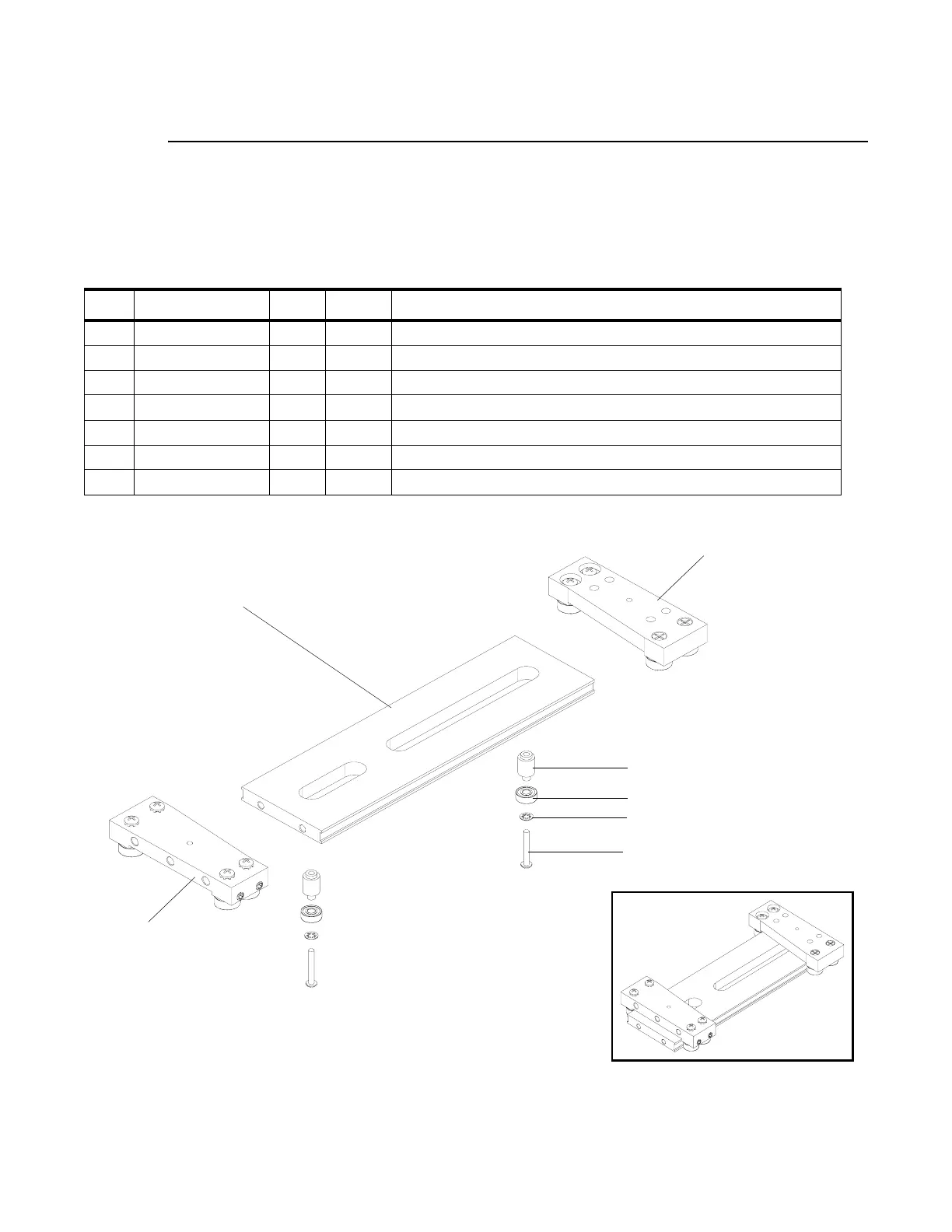

Figure 3-41: Zoom Linear Slide Assembly
No. Item Qty. UM. Description
1 10.9687.0111 2 EA SHAFT, CAM FOLLOWER
2 10.9687.0140 1 EA RAIL, LINEAR SLIDE
3 21.9687.0106 1 EA ASSY, CARRIER, FRONT
4 21.9687.0111 1 EA ASSY, CARRIER, REAR
5 53.6659.0016 2 EA SCREW, 2-56 X 5/8" PPZ SEMS
6 54.9687.0104 2 EA BEARING, DUAL SHIELDED, MR83
7 55.3303.0002 2 EA WASHER, #2 LOCK INT TOOTH SS
4
1 (x2)
2
6 (x2)
5 (x2)
7 (x2)
3
