VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
38 02.9687.0010 0
Tilt Stabilizer Removal
WARNING: Ensure that power is completely removed (disconnected) from luminaire before
attempting any work. Wear protection on hands (soft cotton gloves) when handling glass.
To remove tilt stabilizer:
Step 1. Remove power from luminaire and allow unit to completely cool.
Step 2. As shown in Figure 2-20, remove both yoke covers by removing one 8-32 x 3/8" PPB SEMS
screw per side.

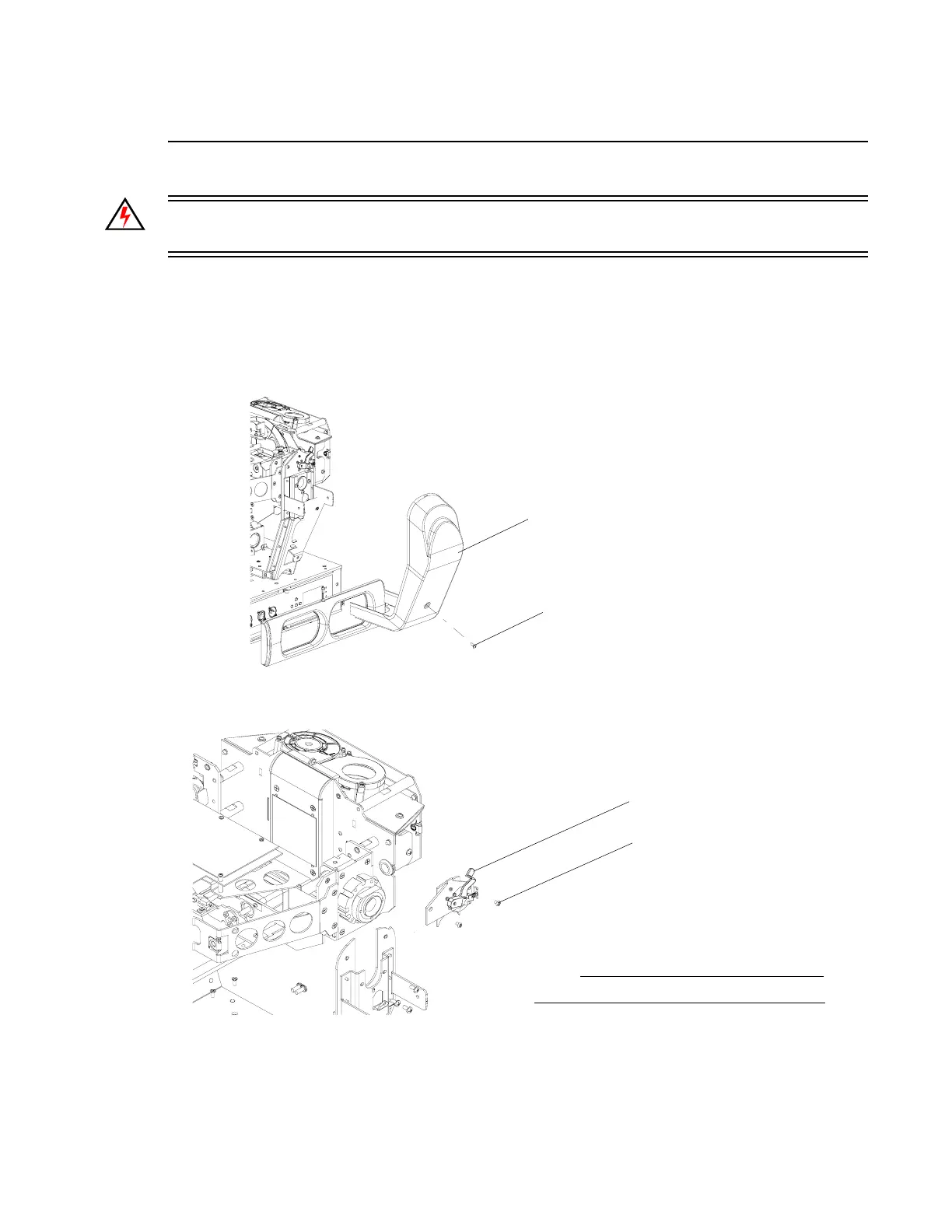

Figure 2-20: Yoke Arm Cover Removal
Step 3. Remove Tilt Lock Assembly by removing two 6-32 x 3/16" PPB screws.
Figure 2-21: Tilt Lock Assembly Removal
Yoke Arm Cover*
8-32 x 3/8" PPB
SEMS Screw*
*One per side
6-32 x 3/16" PPB Screw (x2)
Tilt Lock Assembly
NOTE:
Components removed and exploded for clarity.
To Next Page
