MAINTENANCE PROCEDURES : TILT SENSOR REMOVAL
02.9687.0010 0 37
2
Step 4. Tilt head from side to side to access two 6-32 x 3/8" PFZ screws as indicated in Figure 2-19.

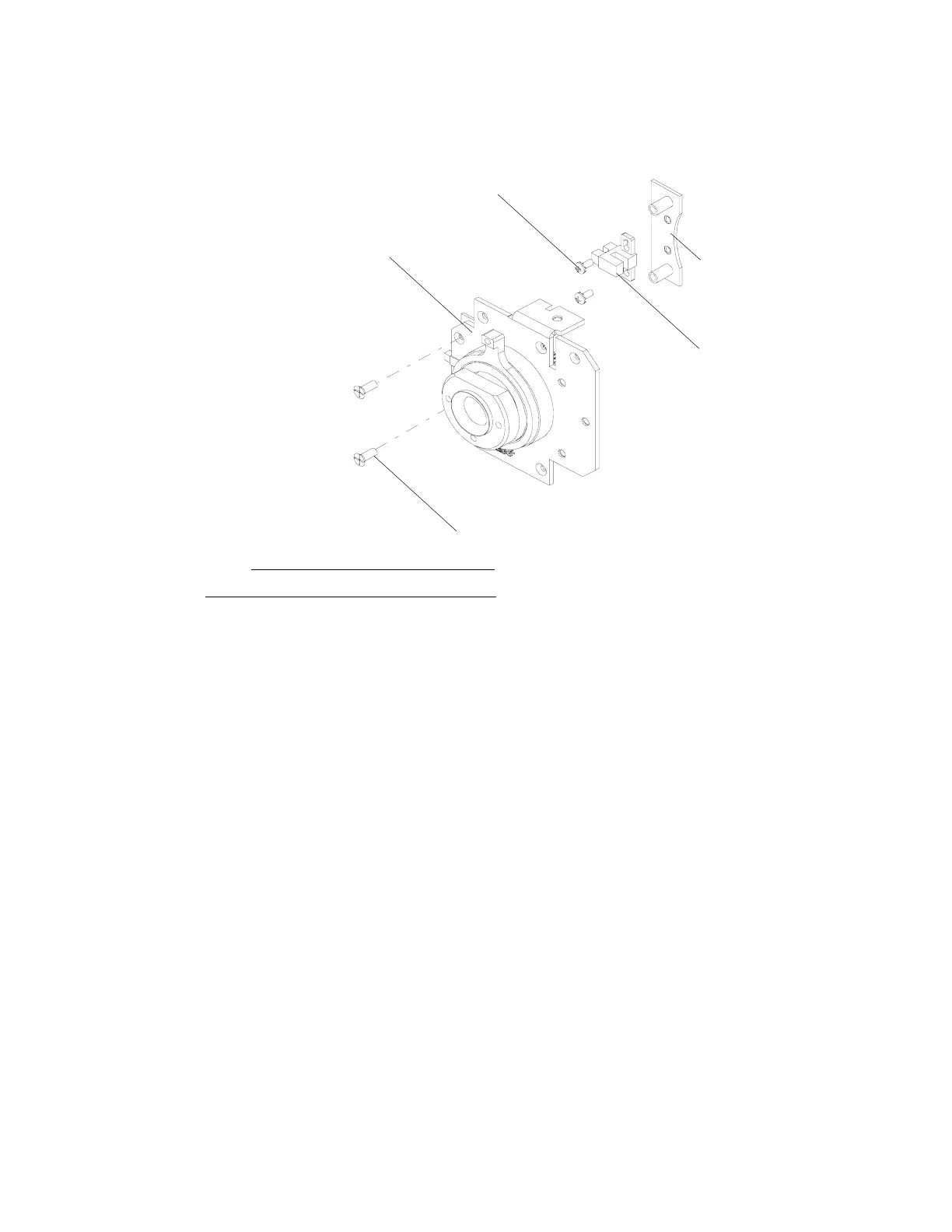

Figure 2-19: Tilt Sensor Removal
Step 5. Disconnect wiring at tilt sensor and remove tilt sensor.
Step 6. Reassemble following steps in reverse order.
NOTE:
Components removed and exploded for clarity.
6-32 x 3/8" PFZ Screw (x2)
Right Tilt Bearing Assembly
Tilt Sensor
Assembly
Tilt Sensor
Bracket
4-40 x 1/4" PPB SEMS Screw (x2)
To Next Page
