COMPONENTS : VL440 / VL770 / VL880 SPOT LUMINAIRES HEAD COMPONENTS
02.9687.0010 0 9
1
VL440 / VL770 / VL880 Spot Luminaires Head
Components

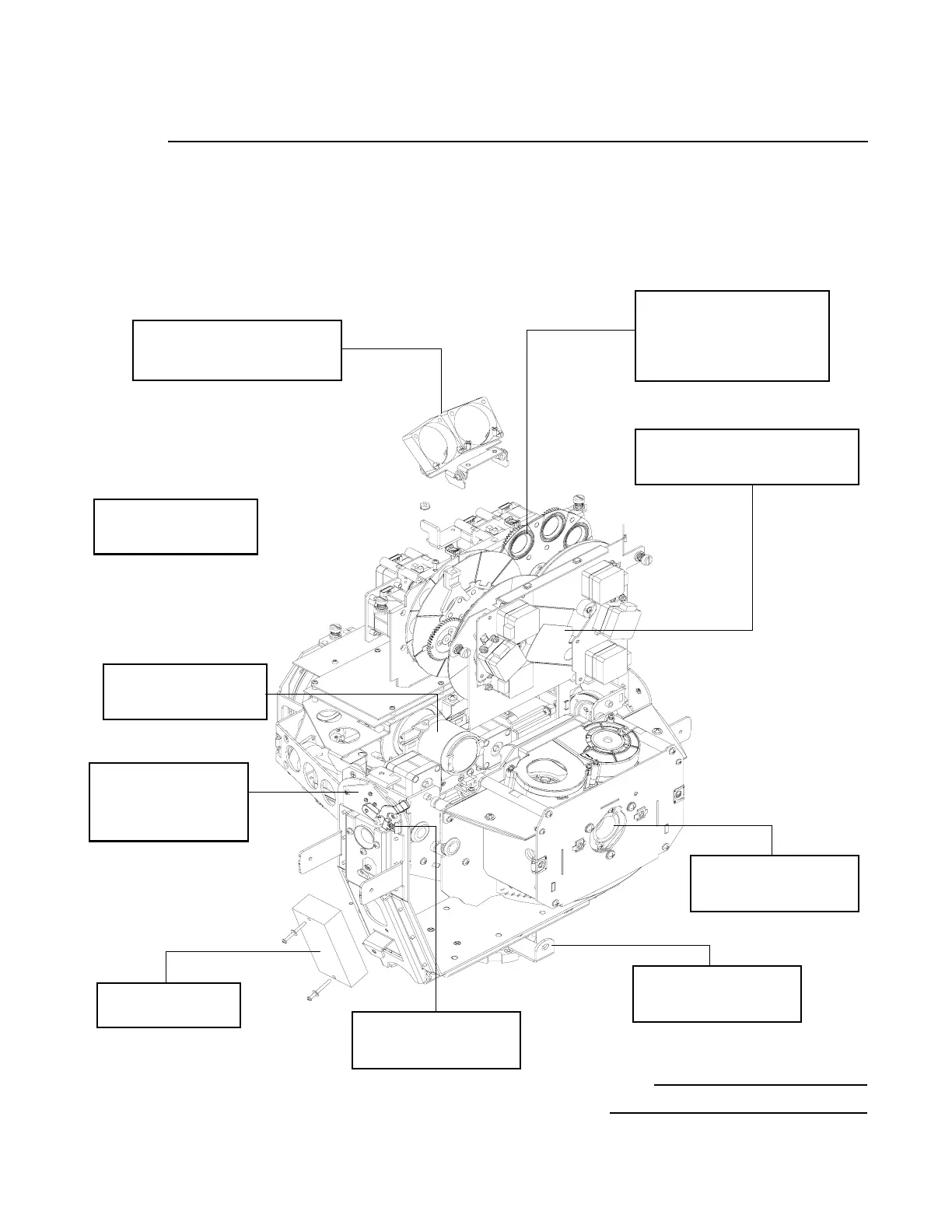

The following illustration shows the major sub-assemblies which are located in the luminaire head
assembly.
Cradle Assembly
Connects head to yoke
and contains tilt motor
assembly.
Lamp Housing
Contains lamp, lamp
socket, and cooling fans.
CYM color mixing wheels, glass
dimmer, and strobe assembly.
CYM Color System & Dimmer
Zoom optics for beam
control and focus.
Optics
Main control unit and
driver PCBs
Main Control Board
Fixed Gobo / Fixed Color /
Rotating Gobo Assembly
10 fixed gobo positions, 7
rotating gobo positions, and
8 fixed color positions.
Note:
Enclosure assembly not shown for clarity.
Provides more air circulation
and cooling capacity.
Head Transfer Fans
For striking lamp.
Solid-State Ignitor
Pan Lock
For locking yoke pan
for service or transport.
Tilt Lock
For locking head tilt
for service or transport.
