VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
124 02.9687.0010 0
Fixed Gobo Wheel Assembly
21.9687.0258 Rev B
Refer to Figure 3-34.

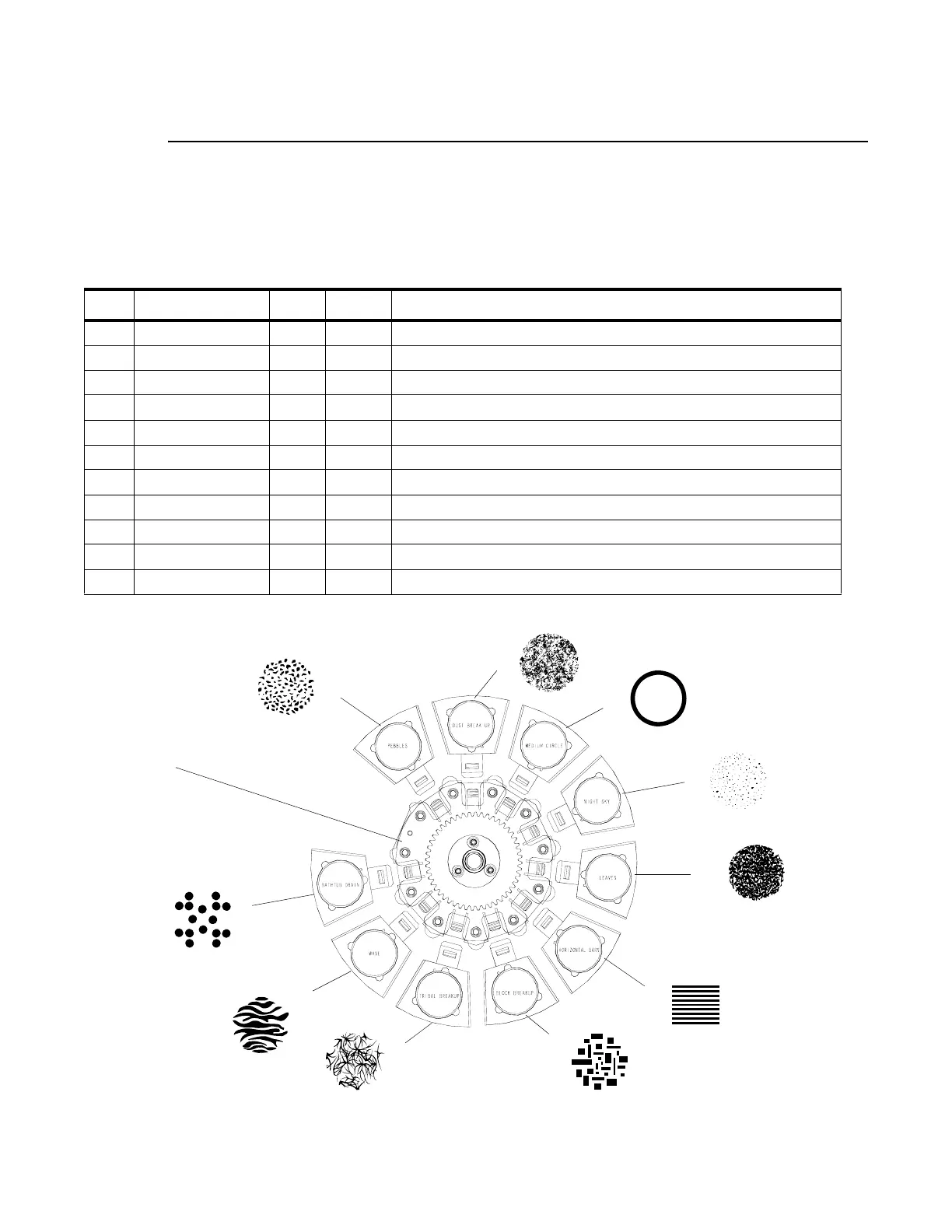

Figure 3-34: Fixed Gobo Wheel Assembly
No. Item Qty. UM. Description
1 22.9687.0224 1 EA ASSY, FIXED GOBO WHEEL
2 41.6004.4001 1 EA GOBO, FIXED, BATHTUB DRAIN, SVL
3 41.6004.4201 1 EA GOBO, FIXED, HORIZONTAL BARS, SVL
4 41.6004.5011 1 EA GOBO, FIXED, NIGHT SKY, SVL
5 41.6004.5501 1 EA GOBO, FIXED, LEAVES, SVL
6 41.6004.5523 1 EA GOBO, FIXED, TRIBAL BREAK-UP, SVL
7 41.6004.6001 1 EA GOBO, FIXED, MEDIUM CIRCLE, SVL
8 41.6004.7002 1 EA GOBO, FIXED, PEBBLES, SVL
9 41.6004.7008 1 EA GOBO, FIXED, WAVE, SVL
10 41.6004.7015 1 EA GOBO, FIXED, BLOCK BREAK-UP, SVL
11 41.6004.7025 1 EA GOBO, FIXED, DUST BREAK-UP, SVL
2
1
OPEN
Note, Gobo and gag artwork
not to scale and shown for
identification purposes only.
9
7
4
5
3
10
6
8
11
