Wedge Fixed Color Wheel Assembly
21.9687.0256 Rev C
Refer to Figure 3-32.

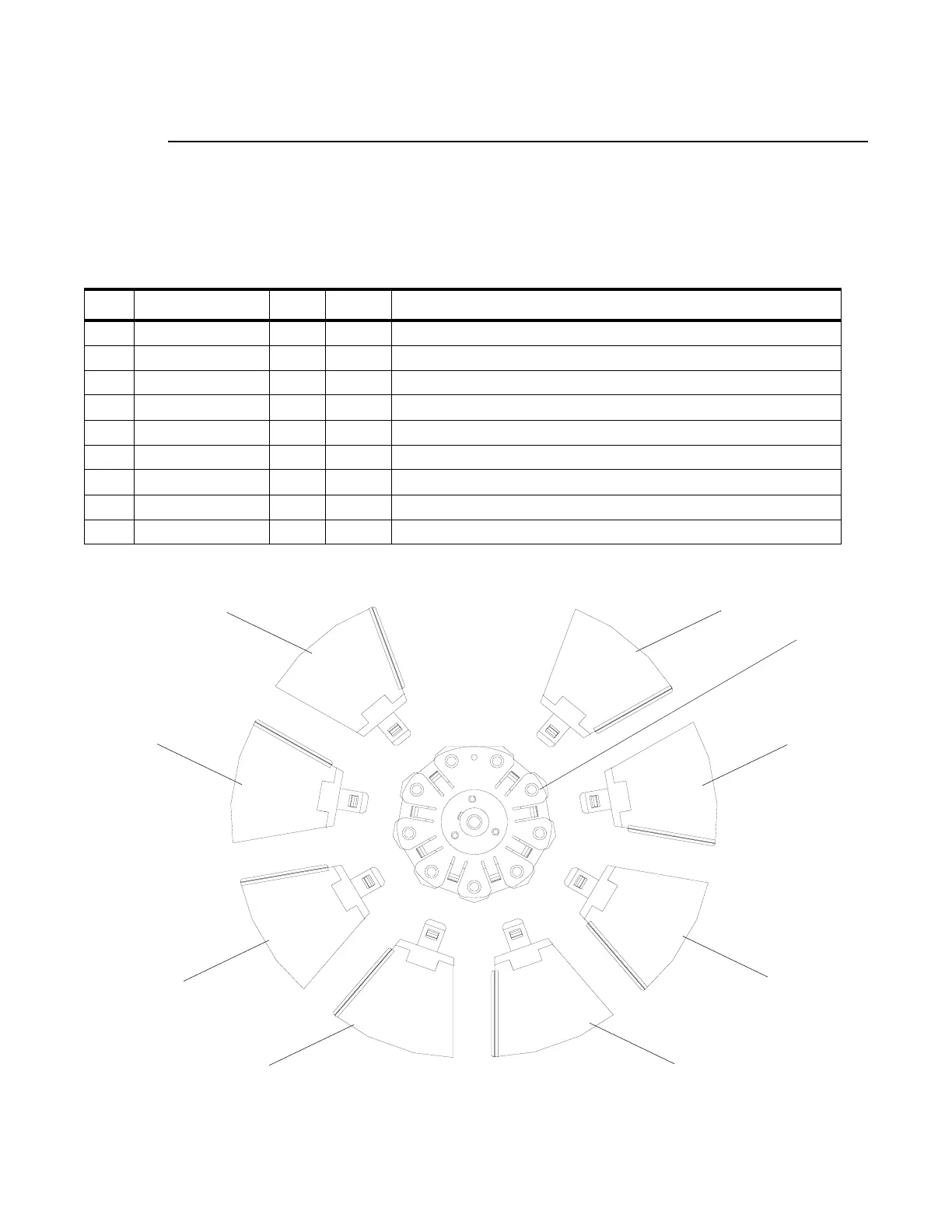

Figure 3-32: Wedge Fixed Color Wheel Assembly
No. Item Qty. UM. Description
1 21.9687.0407 1 EA FILTER ASSY, CTO
2 21.9687.0431 1 EA FILTER ASSY, RED
3 21.9687.0433 1 EA FILTER ASSY, MAGENTA
4 21.9687.0434 1 EA FILTER ASSY, KELLY GREEN
5 21.9687.0435 1 EA FILTER ASSY, CONGO BLUE
6 21.9687.0436 1 EA FILTER ASSY, BLUE
7 21.9687.0439 1 EA FILTER ASSY, DARK ORANGE
8 21.9687.0441 1 EA FILTER ASSY, FLESH PINK
9 22.9687.0225 1 EA ASSY, WEDGE WHEEL
2
9
Red
Blue
Kelly
Green
6
Magenta
4
3
CTO
1
Flesh
Pink
Dark
Orange
Congo
Blue
OPEN
8
7
5
