Philips Vari-Lite VL440 - Transfer Fans Assembly

TOP ASSEMBLY : TRANSFER FANS ASSEMBLY
02.9687.0010 0 101
3
Transfer Fans Assembly
21.9687.0260 Rev A
Refer to Figure 3-20

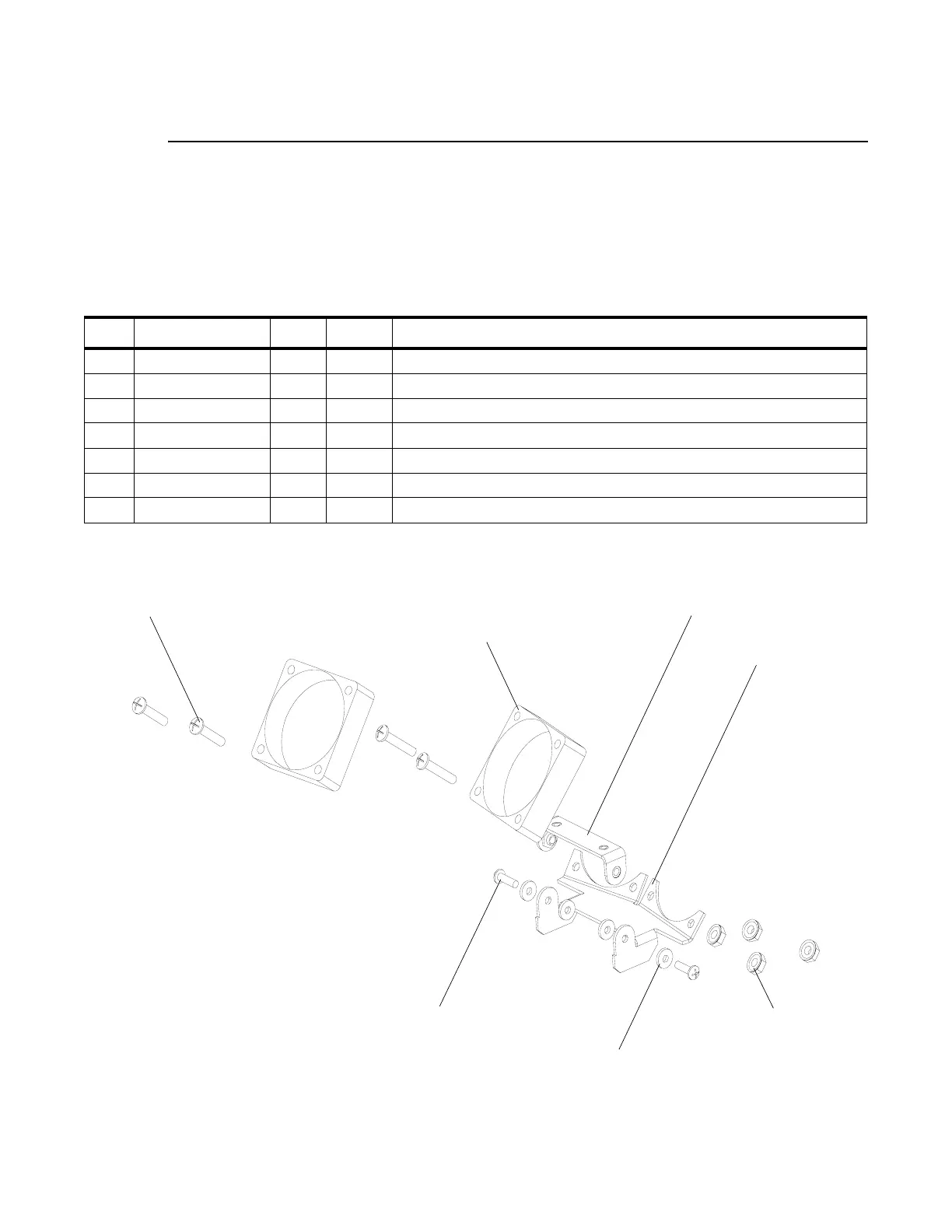

Figure 3-20: Transfer Fans Assembly
No. Item Qty. UM. Description
1 10.9687.0250 1 EA BRACKET, FAN, TRANSFER
2 10.9687.0251 1 EA BRACKET, HINGE, TRANSFER FAN
3 40.9687.0003 2 EA FAN, AXIAL, 50 MM X 15 MM
4 53.2200.0008 4 EA NUT, 8-32 KEPS SS
5 53.6613.0001 2 EA SCREW, 6-32 X 1/2" PPZ
6 53.6575.0003 4 EA SCREW, 6-32 X 7/8" PPZ
7 55.6538.0002 4 EA WASHER, #6 NYLON, NATURAL
3
4 (x4)
6 (x4)
2
1
5 (x2)
7 (x4)
