Philips Vari-Lite VL440 - Rotating Gobo Wheel Assembly

HEAD ASSEMBLY : ROTATING GOBO WHEEL ASSEMBLY
02.9687.0010 0 123
3
Rotating Gobo Wheel Assembly
21.9687.0257 Rev C
Refer to Figure 3-33.

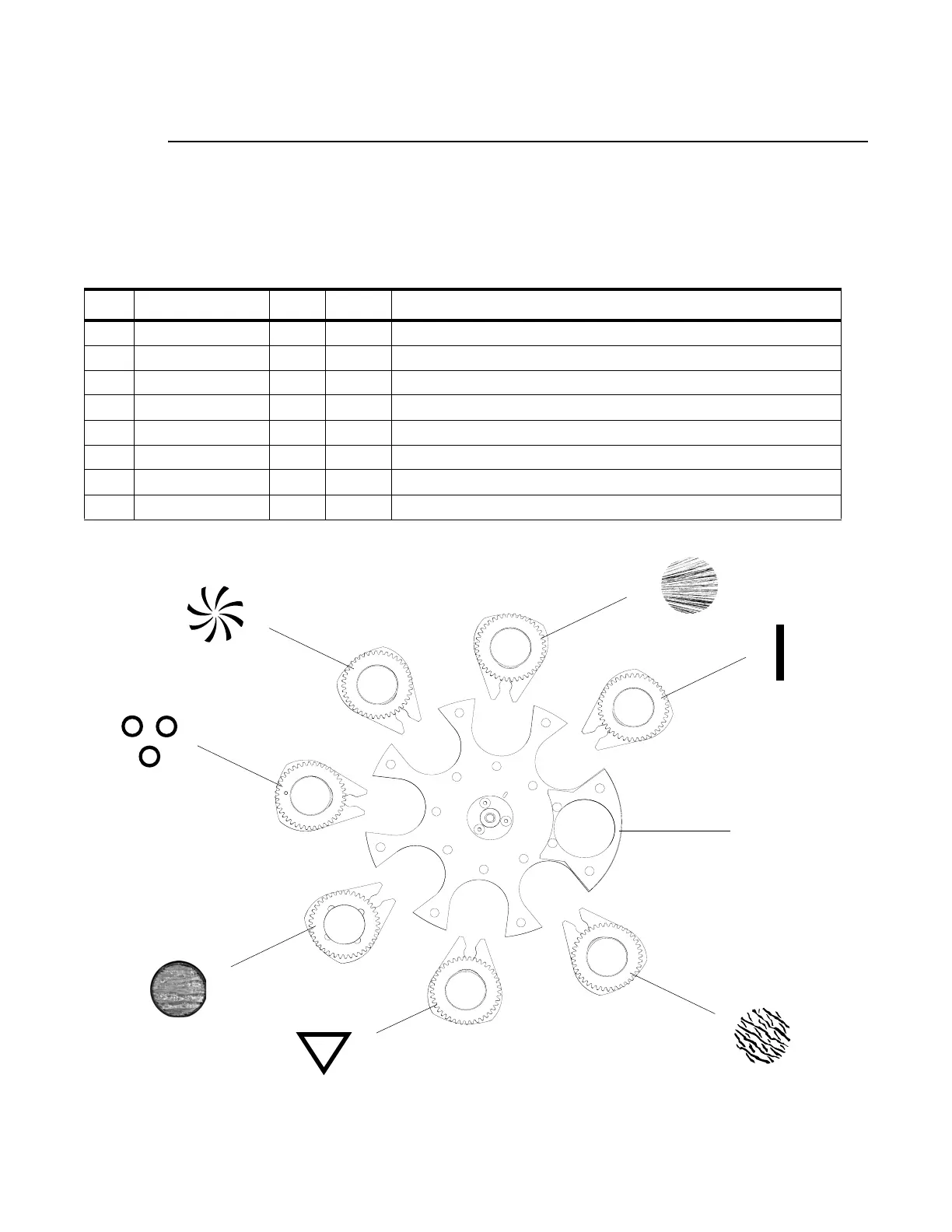

Figure 3-33: Rotating Gobo Wheel Assembly
No. Item Qty. UM. Description
1 21.6004.4009 1 EA ASSY, ROTATING GOBO, TRIANGLE
2 21.6004.4011 1 EA ASSY, ROTATING GOBO, VERTICAL SLOT
3 21.6004.4322 1 EA ASSY, ROTATING GOBO, PINWHEEL 2
4 21.6004.6008 1 EA ASSY, ROTATING GOBO, TRI CONE, W/ MAGNET
5 21.6004.7018 1 EA ASSY, ROTATING GOBO, SHOCK BREAKUP
6 21.6004.7029 1 EA ASSY, ROTATING GOBO, ALPHA RAYS
7 21.9687.8002 1 EA ASSY, GAG ROTATOR, GLACIER
8 22.9687.0220 1 EA ASSY, ROTATING GOBO WHEEL
2
6
4
3
1
OPEN
8
7
5
Note, Gobo and gag artwork
not to scale and shown for
identification purposes only.
