ENCLOSURE ASSEMBLY : UPPER ENCLOSURE ASSEMBLY
02.9687.0010 0 143
3
Upper Enclosure Assembly (continued)

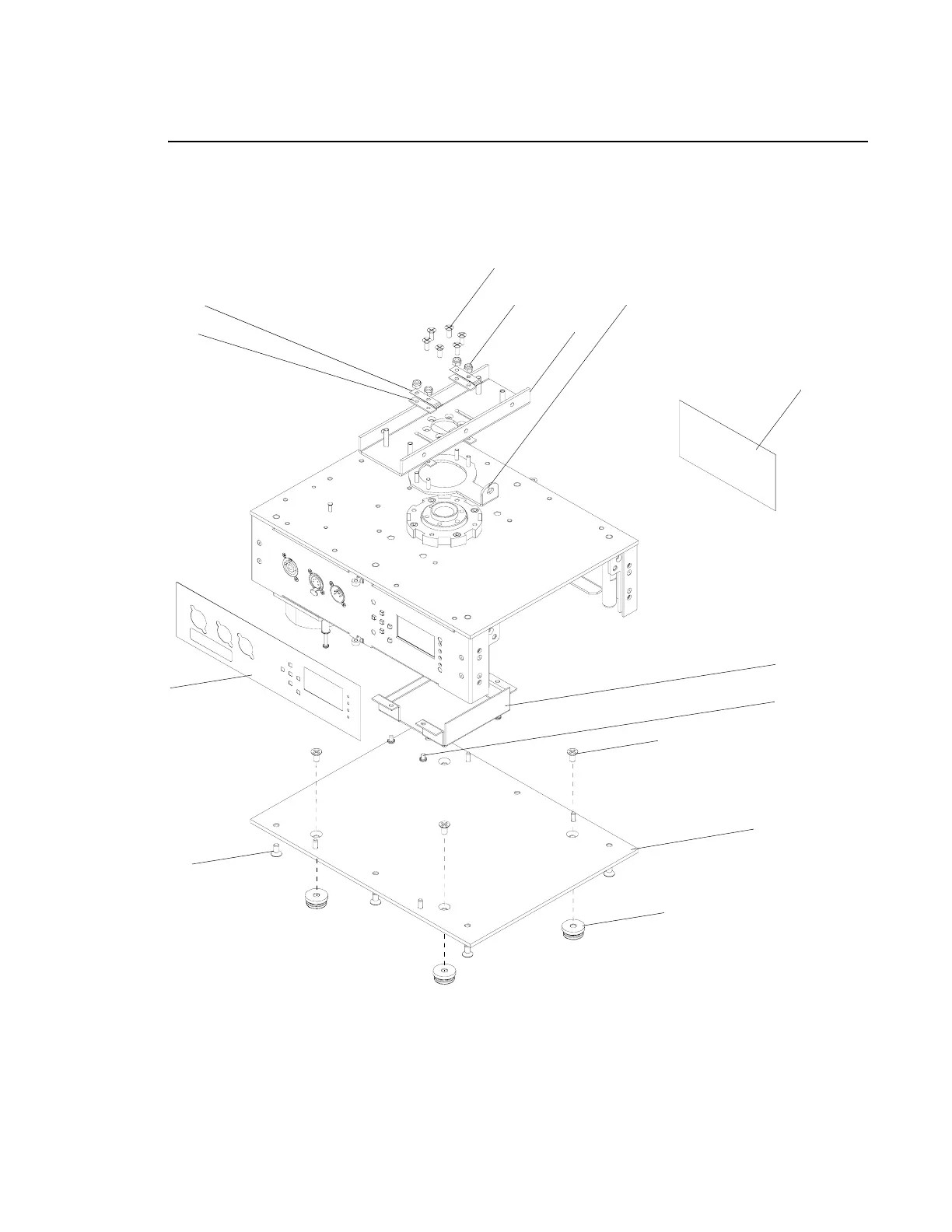

Figure 3-46: Upper Enclosure Assembly Part 3
2
3
14
41 (x6)
30 (x4)
16 (x2)
15 (x4)
1
11
37 (x4)
4
13 (x4)*
42 (x6)
32 (x4)*
*Note: When installing these items, use
thread locker Loctite 271 or equivalent.
