MAINTENANCE PROCEDURES : DRIVER BOARD ASSEMBLY REMOVAL
02.9687.0010 0 29
2

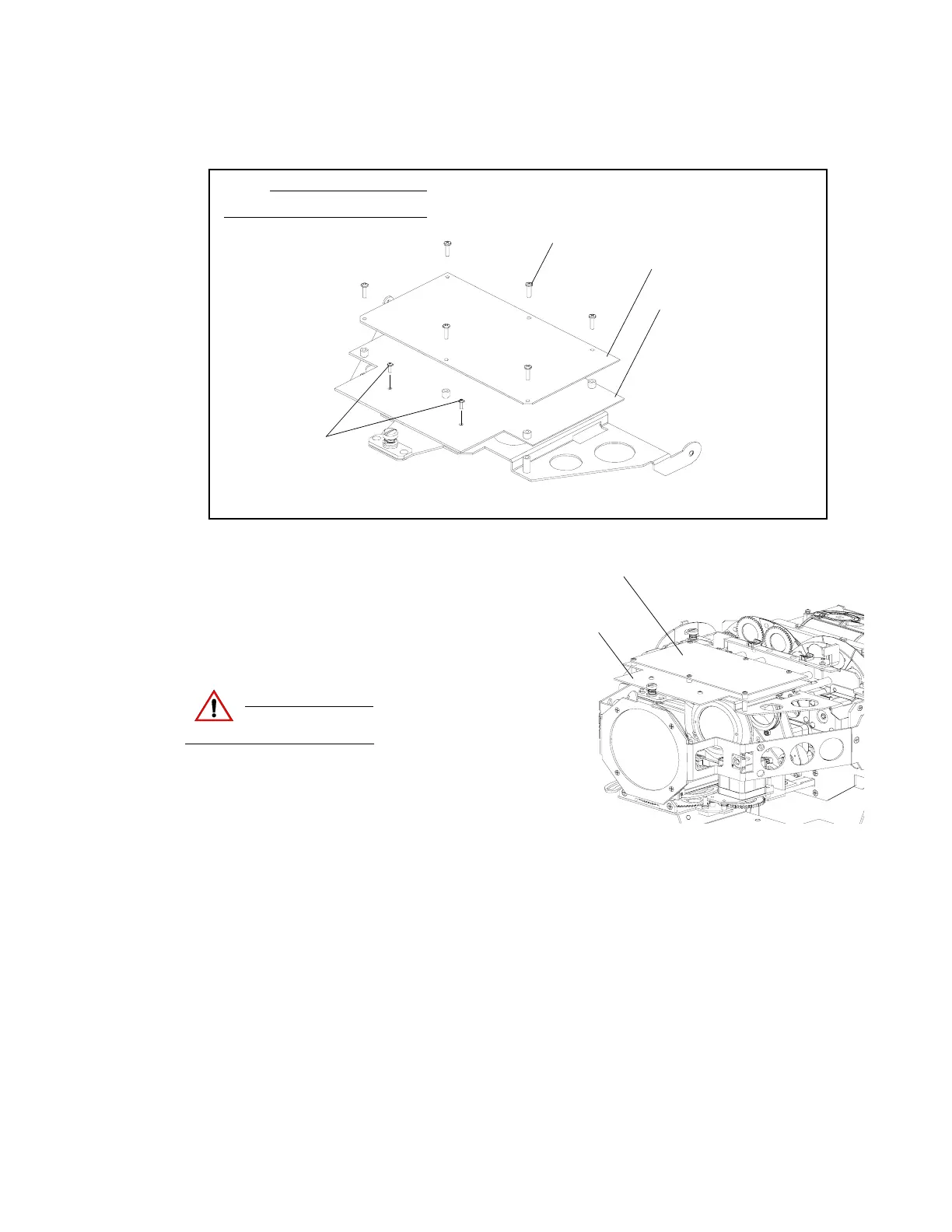

Figure 2-11: Driver Board Assembly Removal
Step 6. Remove Driver Board Assembly from luminaire.
Step 7. Replace by performing steps in reverse order.
CAUTION:
Remove power and
allow fixture to cool.
Driver Board Assembly
MCU Board Assembly
MCU Board Assembly
Driver Board Assembly
4-40 x 1/2" PPZ Screw (x6)
4-40 x 3/8" PPZ
SEMS Screws
NOTE:
Components removed for clarity.
