VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
46 02.9687.0010 0
Step 7. Remove four 8-32 x 3/8" PPB SEMS screws from rear.

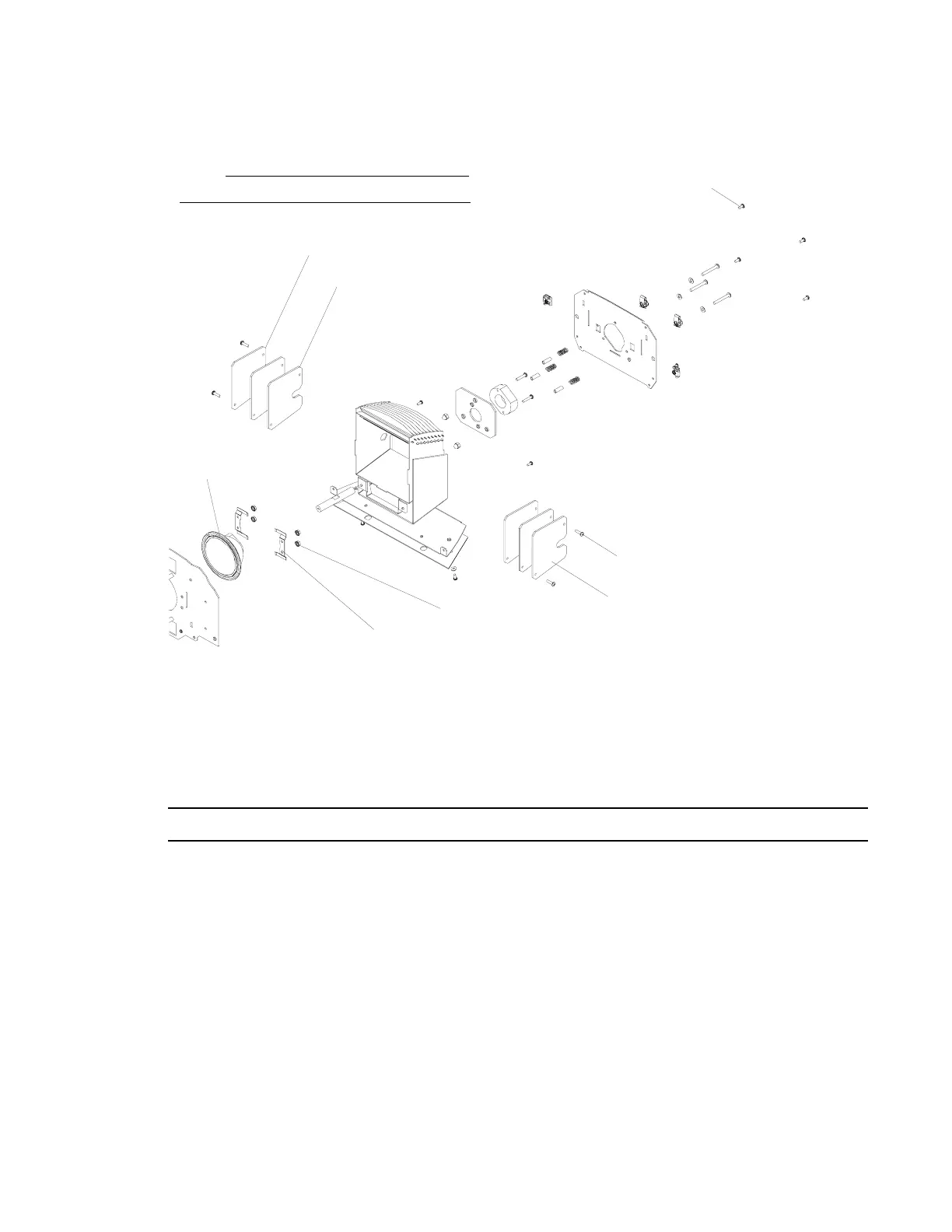

Figure 2-30: Reflector Assembly Removal
Step 8. Carefully remove lamp housing, socket and rear plate.
Step 9. At reflector, remove four #8 KEPS nuts and remove both reflector retainer clips.
Step 10. Remove reflector.
Step 11. Reassemble by following steps in reverse order.
Note: Refer to “Lamp Removal and Installation” on page 21 for lamp installation information.
8-32 x 3/8" PPB SEMS Screw (x4)
NOTE:
Components removed and exploded for clarity.
Counter Weights
Remove this screw only
Counter Weights
Remove this screw only
Reflector
#8 KEPS Nut (x4)
Reflector Retaining Clip (x2)
To Next Page
